Wide Developing Tolerance UV Ink Resisited CTP Ctcp Plate
Application:
Newspaper Printing, commercial printing, and package printing
Features:
ECOO-CTCP-ED applies photosensitive layer technology with long run length,high performance and resolution, good small dot
reproduction, wide exposure and developing latitude, easy to
handle.
High sensitivity can greatly reduce plate-making time and improve
efficiency. High flatness can make laser head focus more
accurately, dot sharper and reproducibility better.
Technical Specification:
Model
ECOO-CTCP-D
Plate Type
No preheat, positive working, UV sensitive plate, double coated, no
need baking for UV ink printing
Application
Newspaper printing, commercial printing, and package printing
Substrate
Electrochemically Grained and Anodized Aluminum
Gauge
0.15, 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width
Maximum width 1350 mm
Developer
Any positive plate developer or our own developer
Length of Run
200,000 impressions unbaked; 70,000 impressions with UV ink
unbaked; 1,000,000 impression baked.
Plate setters Capability
All the main brands violet CTP in market, laser power no less than
30 mw
Aluminum
Standard 1050 Alloy
Exposure energy
50-65uj/cm²(based on plate setter and developing condition)
Developing time
20±3 sec
Developing Temperature
28±2ºC
Spectral Sensitivity
405 nm
Resolution
1-99% @ 200 LPI & 20 uFM
Shelf life
12 months under recommended storage conditions
Storage and handing
Stored in a cool and dry environment, away from excessive cold,
heat.
Product highlight
High sensitivity; Extend laser life for image setter; Grain
efficiency; Positive CTCP plate
| Model | ECOO-CTCP-D |
| Plate Type | No, preheat, positive working, UV sensitive plate, double coated,
no need baking for UV ink printing |
| Application | Newspaper Printing, commercial printing, and package printing |
| Substrate | Electrochemically Grained and Anodized Aluminum |
| Gauge | 0.15, 0.20, 0.25, 0.30, 0.40(mm) |
| Maximum short grain width | Maximum width 1350 mm |
| Developer | Any positive plate developer or our own developer |
| Length of Run | 200,000 impressions unbaked;
70,000 impressions with UV ink unbaked;
1,000,000 impression baked. |
| Plate setters Capability | All the main brands violet CTP in market, laser power no less than
30 mw |
| Aluminum | Standard 1050 Alloy |
| Exposure energy | 50-65uj/ cm²(based on plate setter and developing condition) |
| Developing time | 20±3 sec |
| Developing Temperature | 28±2ºC |
| Spectral Sensitivity | 405 nm |
| Resolution | 1-99% @ 200 LPI & 20 uFM |
| Shelf life | 12 months under recommended storage conditions |
| Storage and handing | Stored in a cool and dry environment, away from excessive cold,
heat. |
| Product highlight | High sensitivity; Extend laser life for image setter; Grain
efficiency; Positive CTCP plate |
Testing system
We have come up with higher quality management goal. It analyzes
every detail carefully from research and development, quality
insurance and quality inspection, so as to have systematic
evaluation on equipment operation and the operation standards of
personnel and ensure the best performance of each step and high
product quality. We have automatic on-line 24h scanning detector, manually full
inspection before packing and delivering.

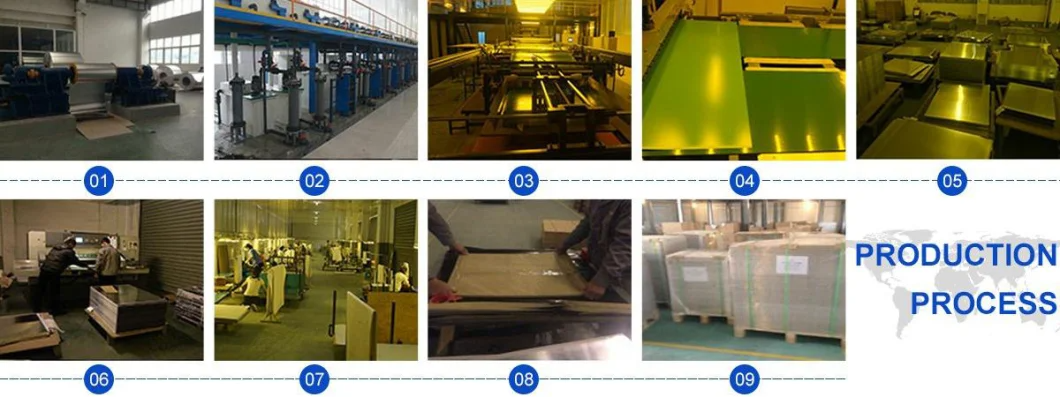

Workshop & Warehouse
Company Profile
EcooGraphix has established international distribution and service
networks in over 50 countries worldwide. Significant market
successes have been achieved in countries such as the USA, Canada,
Mexico, Chile, UK, Hungary, Turkey, South Africa, Greater Africa,
and China. With 100% customer satisfaction and continued expansion
of our customer base worldwide over the past 12 years, EcooGraphix
is steadily gaining international market share and recognition.
EcooGraphix has teams of internationally experienced technical
experts and professionals drawn from the Printing Industry. We
offer tailored-made CTPs and plate solutions for Commercial,
Packaging and Newspaper Printers as well as Output Centers with
non-stop technical support. With deep and profound knowledge of
global Printing market, EcooGraphix is well positioned to become
your choice of supply for best quality CTP machines and plate
products.
