    Commercial Thermal CTP Positive Plate UV Ink Compatible For Offset

    Commercial UV Ink Compatible Thermal CTP Positive Plate

    EcooGraphix Thermal CTP Plate is able to meet various requirements of high grade commercial and newspaper printing.
    It has the advantages of fast plate making speed, high tolerance level, precise half-tone dot reproduction, good ink balance and high press run length.

    Excellent Performence:
    1) High quality aluminum, composite grain and high press runs.
    2) Capable of bright room operation.
    3) High resolution and precise half tone dot reproduction.
    4) High development tolerance level and convenient operation.



    Plate Specification


    Type: Positive Thermal Plate
    Use: Commercial Color Printing, package Printing, Books and News Printing


    Model: ECOO-ED


    Exposure energy required:
    110-120 mj/ cm2 (depend on imager type, configuration and resolution)
    Resolution:
    1-99% @400lpi or 10μ FM stochastic (depend on capability of imaging device)
    Spectral sensitivity:
    780-850 nm
    Run-length:
    100,000 impressions unbaked; 50,000 impressions for UV ink applications,300,000 plus impressions baked
    (dependent upon image resolution, press, press chemical, ink and paper conditions).
    Gauges:
    0.15mm, 0.30mm and 0.40mm standard, with 0.20mm and 0.24mm availability in selected regions.
    Coating color:
    Blue
    Safelight:
    Daylight handling
    Shelf life:
    12 months, under recommended storage conditions.

    General Information
    Plate ModelECOO-ED
    Plate TypePositive Thermal CTP Plate(Double Layer)
    ApplicationHigh grade commercial and newspaper printing
    SubstrateElectro chemically Grained and Anodized lithographic Aluminum
    Aluminum alloyStandard 1050 Alloy
    CoatingTwo-layer system, IR sensitive, positive acting
    Gauge0.15,0.20, 0.25,0.30, 0.40 (mm)
    Maximum short grain widthMaximum width 1280 mm
    Plate intermixKodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword
    Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc.
    Length of Press RunsOrdinary Ink: 100,000 to 200,000 impressions
    UV Ink : 50,000 to 100,000 impressions
    Exposing
    CTP Plate Making Machine
    Plate setters
    Kodak: Trendsetter/Lotem/Magnus; Fuji : Javelin T9000HS
    Heidelberg : Top setter/Supra setter; Luscher : Xpose Plate setter
    Screen : PT-R,Creo : Scitex
    EcooGraphix Thermal CTP Tseries
    Exposure energy110 - 130 mJ/cm²
    Spectral Sensitivity800-850 nm - Peaks 830nm
    Resolution1-99% at 200 LPI
    Image colorBlue
    FM capability20 micron stochastic
    Image colorBlue Green to Pale Green
    Developing
    ProcessorAll the kind Brands.
    DeveloperKodak Gold Star or our own developer
    Processing temperature23°C +/- 2°C
    Developing time25 - 30 sec
    Processing Speed0.80 - 1.20 m/min
    Storage and handling
    SafelightDaylight handling
    Shelf Life12 months under recommended storage conditions
    PackagingAvailable in all standard formats, including bulk packaging options such as APL packaging
    Storage and handlingStored in a cool and dry environment, away from excessive cold, heat and humidity.


    Recommended Image Data:
    CTP model dataKodak
    trendsetters
    LOTTEM
    400(TH1.7)
    MAGNUS 400Screen 8600S
    Laser power13-15W270-280mw17-19W70-80%
    Drum speed250-300rpm850-900rpm400-450rpm800-900rpm
    ResolutionCustomizedCustomizedCustomizedCustomized
    Parameter that need set upFocus/ZoomFocus/ZoomFocus/ZoomFocus/Zoom
    *Note: Higher exposure energy will make the image contrast more clear, and benefit to the plate run length; while over high/low exposure energy will affect the image quality negatively.

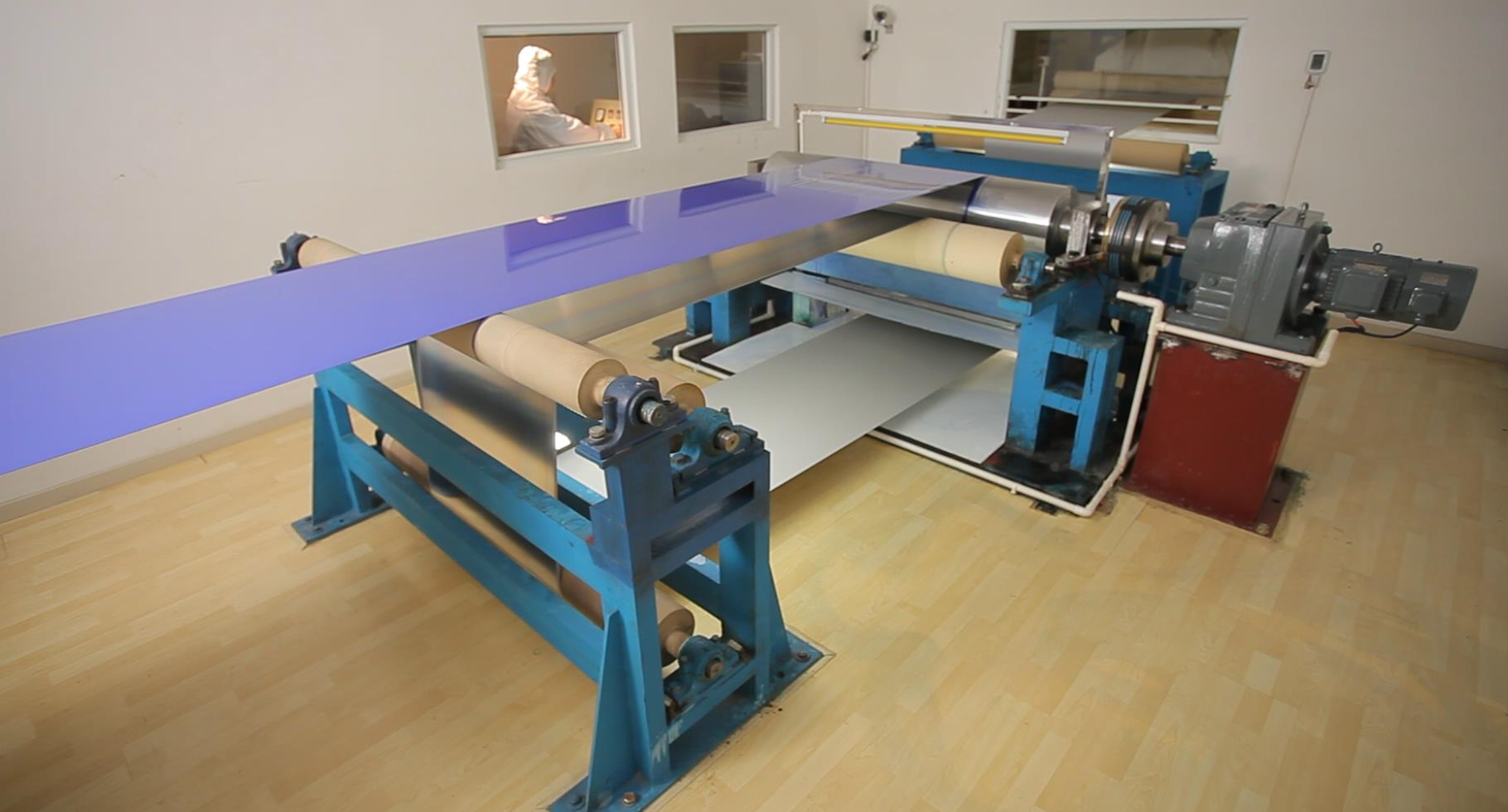

    Producing And Packaging:

    From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

    Packing & Delivery of Double layer Thermal CTP Offset Printing Plate
    --0.15mm 100 pieces/carton, 50 cartons/pallet
    --0.30mm 50 pieces/ carton, 50 cartons/pallet
