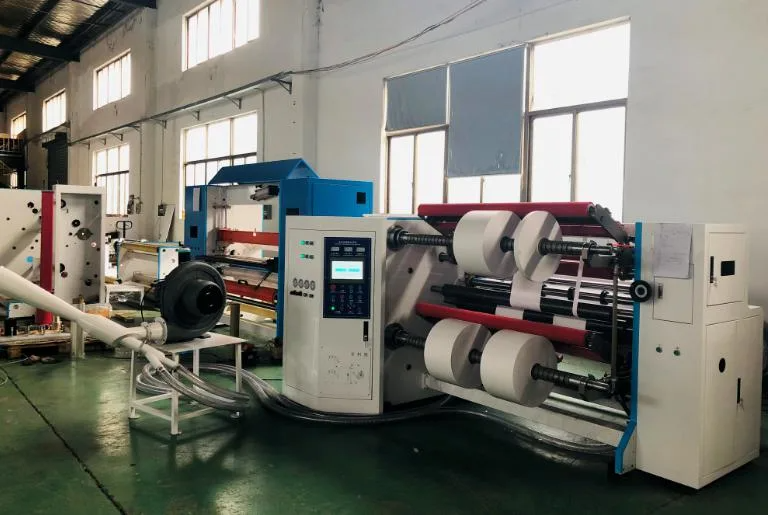

Automatic Self Adhesive Label Slitter Rewinder
JT-SLT-1300F suits to the slitting of various ultra-large type coiled material,
such as plastic film (PVC,OPP,PET, CPP), paper, glass paper,
aluminum-foil paper, aluminum foil, adhesive sticker, non-woven
fabrics, and other coiled materials slitting and rewinding.
1. SIEMENS PLC control system and touch screen, all the parameters
are displayed on the monitor. Just setup the roll diameter,
material thickness, initial tension, the machine runs
automatically.
2. Shaftless hydraulic loading system, Max. load capacity is 3
tons.
3. 20Kg/m2 electromagnetic brake for unwinding tension control.
4. CNC processed & heat-treatment foothold wall panel, no
deformation.
5. Unwinding section equips with direction adjustable balancing
roller, ensures roller itself keeping tight touch with whole web.
6. Dynamic / static balancing transmission rollers.
7. The upper circular knives are fixed by screws, and the lower
circular knives are fixed by aluminum spacer, cutting precision
could be guaranteed.
8. Automatic tucker tucks the tail, convenient for quickly trigger
rewinding.
9. Load cell sensor & automatic tension controller ensures constant
tension.
10. Automatic meter counter, when reaches preset length, machine
stops automatically.
11. Overlapping problem could be avoided with banana roller.
12. Equipped with emergency switch.
13. CCD digital camera sensor or photocell for web guiding.
Specification
| Model | JT-SLT-1300F |
| Max. Unwinding Width | 1300mm |
| Max. Unwinding Diameter | 1000mm |
| Max. Rewinding Diameter | 800mm |
| Acceptable Thickness Range | 50-800gsm |
| Max. Machine Speed | 300m/min |
| Unwinding/Rewinding Shaft | 3''(76mm) Air expanding shaft |
| Rated Power | 18KW |
| Machine Weight | 2500kg |
| Overall Dimensions(L*W*H) | 3600mm* 2400mm *2000mm |
Machine Spare Parts
Application Material
Ecoo T1300F suits to the slitting of various ultra-large type
coiled material, such as plastic film (PVC,OPP,PET, CPP), paper,
glass paper, aluminum-foil paper, aluminum foil, adhesive sticker,
non-woven fabrics, and other coiled materials slitting and
rewinding.
Unwinding Section
Hydraulic Shaftless Unwinder to fix 3'' 6'' core which is easier to
loading material
Electromagnetic Brake from Taiwan
Fully automatic tension controller
One set of Photocell to tracking the precision
Slitting Section
Disc cutter
Cutter with adjustable and movable blade base
Meter counter
Banana Roller which can avoid overlapping problem completely
Rewinding Section
0.5",1" or as your request
Surface Rewinding technology, it adopts vertical method to press
the rewinding roll
Electromagnetic Clutch from Taiwan
Surface Rewinding technology
Automatic cutting & gluing unit
Controlling Section
Siemens PLC & HMI from Germany
All the parameters are displayed on the monitor
Low voltage electrical appliances all from Schneider
Trimmed Waste
It adopts air blower to blow waste material off, the air blower
power is 0.75kw
Air blower pipe is more wear-resisting
Optional
Safety guard for the slitting device
Emergency Switches on the 4 corners of machine
Wrapping Line

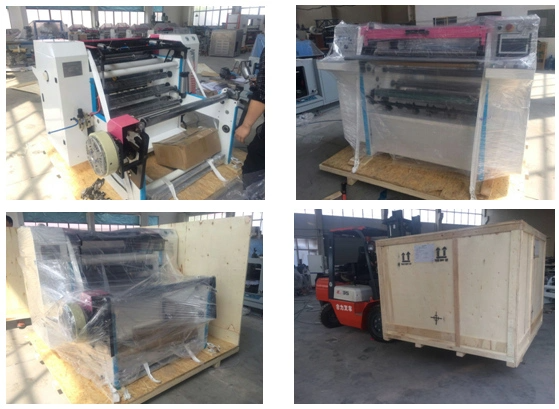

Producing And Packaging
More Details
FAQ
1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and
consumables. We cover both digital printing and offset printing,
including prepress, pressroom and post press, focusing on packaging
printing and book printing.
We have hundreds of users all over the world. We bring forward top
quality of Chinese printing products to meet diversified printing
requirements.
2. Where is your factory?
Our sale office is in Hangzhou, one hour by train away from
Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and
Nanyang.
3. What is your warranty?
One year for machine and printing head if use our ink. One year for
machine only if do not use our ink.
4. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.
5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the
necessary training. The buyer should take the round air plane
tickets and service charge and the local accommodation cost. Any
problems or questions, we will be at your disposal 7x24 hours.
