    Positive Double Layer Aluminum Thermal CTP Plate For Offset Printing

    Ask Lasest Price
    Brand Name : EcooGraphix
    Model Number : ECOO-ED
    Certification : CE, ISO900
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 2000, 000sqm/Year
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Positive Double Layer Aluminum Thermal CTP Plate For Offset Printing

    Positive Double Layer Aluminum Thermal CTP Plate For Offset Printing

    Model: ECOO-ED


    Ecoo-ED can be used for long runs high grade commercial and newspaper printing. It can also be used for the UV ink printing with good performance.

    Product Description:
    1. Long run length with non-ablative coating
    2. Resist UV-ink, workable with both normal ink and UV ink
    3. Mature product, good stability and wide processing latitude
    4. Being adaptive to most of platesetters, processors and solutions

    Plate Specification:
    ModelECOO-ED
    Plate TypeThermal UV-CTP Plate
    ApplicationHigh grade commercial and newspaper printing
    SubstrateElectro chemically Grained and Anodized lithographic Aluminum
    Aluminum alloyStandard 1050 Alloy
    CoatingTwo-layer system, IR sensitive, positive acting
    Gauge0.15,0.20, 0.25,0.30, 0.40 (mm)
    Maximum short grain widthMaximum width 1280 mm
    Plate intermixKodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword
    Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates
    Kodak PP3 positive plates, Agfa Energy Elite, etc.
    Length of RunOrdinary Ink: 200,000 impressions
    Plate settersall Thermal CTP machines
    Exposure energy110 - 130 mJ/m²
    Spectral Sensitivity800-850 nm – Peaks 830nm
    Resolution1-99% at 200 LPI
    FM capability20 micron stochastic
    Image colorBlue Green to Pale Green
    ProcessorAll Brands.
    DeveloperKodak Gold Star or our own developer
    Processing temperature23°C +/- 2°C
    Developing time25 - 30 sec
    Processing Speed0.80 – 1.20 m/min
    SafelightDaylight handling
    Shelf Life12 months under recommended storage conditions
    PackagingAvailable in all standard formats, including bulk packaging options such as APL packaging
    Storage and handlingstored in a cool and dry environment, away from excessive cold, heat and humidity.

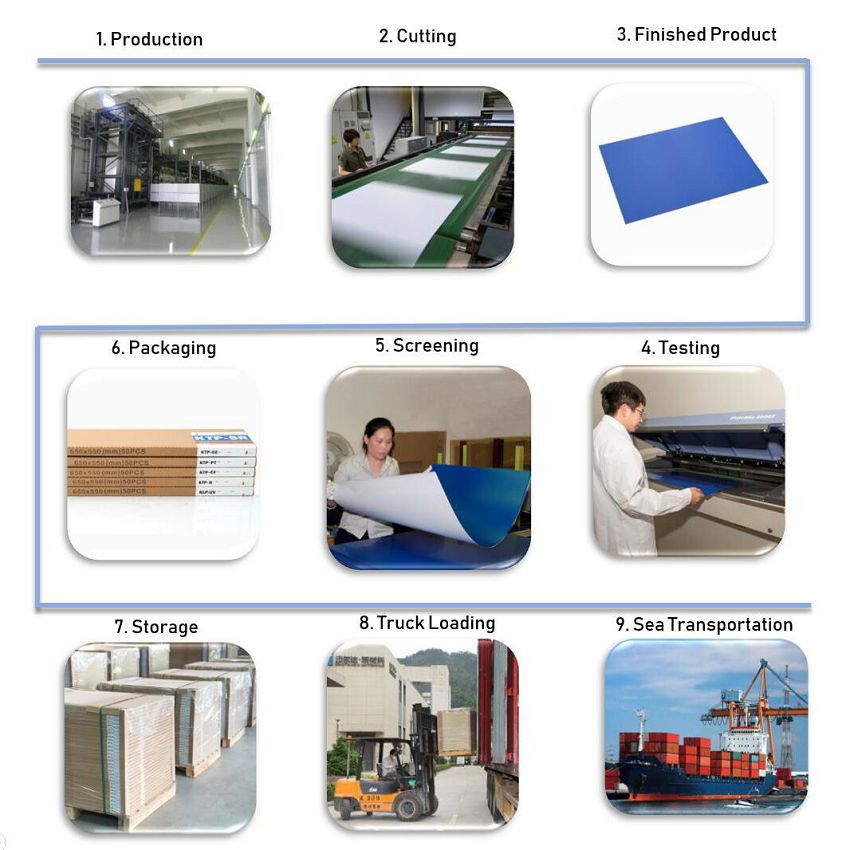

    Producing And Packaging:

    We make sure our packages are safe enough to transport. We have rich experiences on either sea transportation or other transportations.



    FAQ:


    Q1: Can I get the sample?
    A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

    Q2: How many Square Meters CTP plates can feed one 20' container?
    A: About 20000-25000SQM

    Q3: Can I take my own brand and label on the packing?
    A: Yes, we can provide the OEM with the customer's brand and label.
