1. After the positioning by front lays and side lays, the middle
pass gripper catch and relay the paper into the paper gripping
mouth, and bring them into the pressure roller and the rubber
roller for impression by which the pasted U.V. varnish on the plate
will be coated on the paper surface which will be spot coated.
2. Prepare the paper sheet or transparent film with 0.5mm in
thickness for the use of transfer bottom board.
3. Lock the two ends of bottom board on the clamped board tightly.
4. Draw a straight basic line parallelly at the distance of 40 mm
from position C on the bottom board. When the bottom board is hung
on the rubber roller, this line should be on the same line of the
folded line of the rubber roller.
5. Take out a piece of paper to be coated, make an arrangement of
size of the to-be-coated part. Put the positive surface of the
to-be-coated paper on the working table, cut the part of the
to-be-coated paper, and then put the negative surface of the
to-be-coated paper on the bottom board.( At this time, the front
side of paper should be on the same line of the basic line or
forded line), draw the outline of the to-be-coated part on the
bottom board.
6. According to the cut part for coating of the paper, make a
rubber blanket of the same size or flexo plate which will be stuck
to the outlined bottom board with double-face glues.
7. Lock the bottom plate to the rubber roller and run the rubber
roller by inching to make another side of the bottom plate to
another clamp of rubber roller. Move the offset shaft with a wrench
to the top position and gripper both sides of the bottom plate and
make bottom plate stick to the rubber roller tightly.

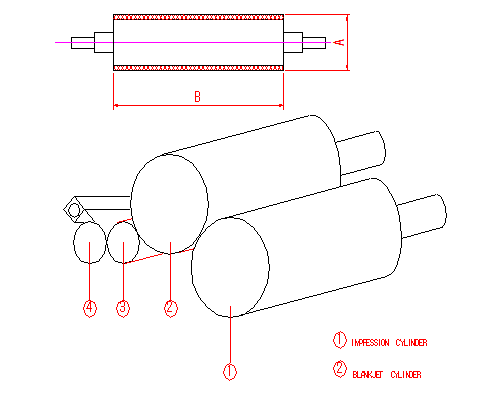

8. The size of the rubber blanket: (perimeter) 820 x 1060mm(width)
9. Anilox Lines and Varnish Volume
