Description

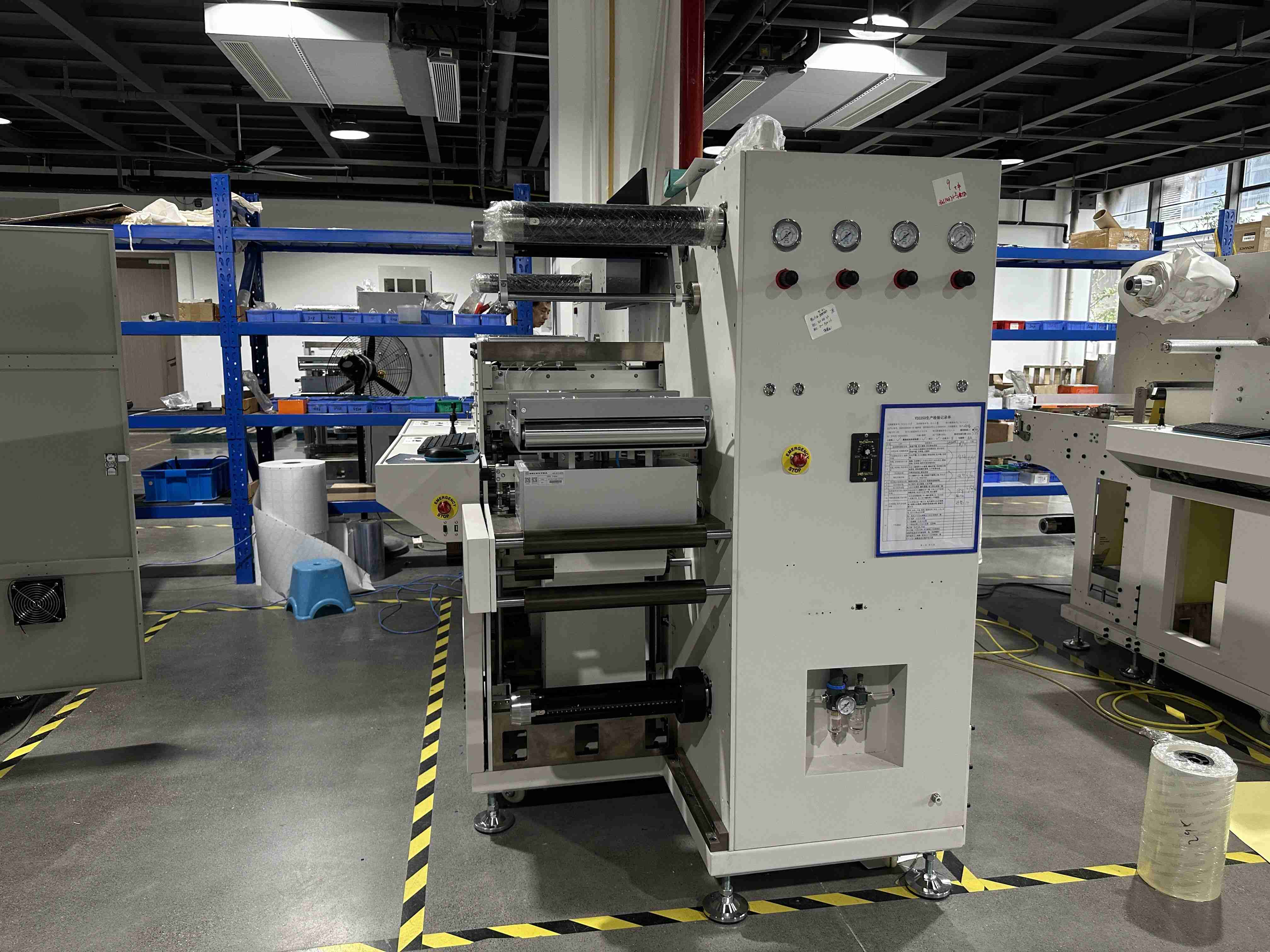

The VD3350 high-speed digital label machine, which incorporates
more AI intelligent elements, adopts a unit design and can install
up to 3 working units. Unique intelligent digital die-cutting
software that automatically recognizes and extracts cutting files,
and automatically adjusts the saw blade. Use a four-blade * 3 unit
to work on different labels simultaneously. With the latest
intelligent software from Worry, automated die-cutting runs through
the entire workflow, making equipment operation easier than ever,
greatly improving work efficiency while reducing manual
intervention.
Technical data
|
| Parameters and specifications |
| Maximum output label roll | 450mm |
| Support label paper width | 40-350mm |
| Maximum label width | 330mm |
| Minimum label length | 10mm |
| Maxmum label length | 600mm |
| Die cutting speed | 9 meters/minute |
| Number of die-cutting machine heads | 4 units/unit, maximum 12 units/3 units |
| Cutting quantity | 4 (standard) up to 15 |
| Die cutting positioning | CCD camera |
| Die-cutting technology | Hard alloy rotary cutting tool |
| mould-cutting precision | 0.1mm |
| Striping speed | Same die-cutting speed |
| Striped size | 10-330mm |
| Striping accuracy | 0.1mm |
| Size | 2100*1195*1575mm |
| Weight | 1200kg (single unit) |
| Power supply | 110-240VAC 1000W |
| Warranty service | One year (excluding vulnerable parts) |
| Data interface | Built in PC |
| Optional accessories | Die-cutting machine head
Splitting tool holder
Laminated waste disposal system
Paper cutter
Host Group
|
Section and function
1 High precision feeding system:
Utilize the ultrasonic web-guide system, it makes sure the feeding
perfectly.
2 Cold laminating
It has cold laminating function, your label will be bright and
perfect. The back liner removal is optional.
3 Digital die-cutting system
VD3350 Digital label die-cutter utilizes high precision screw
transmission system. Max speed can be 30m per minute. Individual
control for the 4 heads, combining with the function of auto adjust
the heads distance, to make the every single head on or off.
4 CCD identify system
With the CCD camera position and identify system, to recognize the
sequence, to reach the function of changing file and cutting next
graphics automatically.
5 Precision slitting system
Utilize rotary slitting mode, can install max.15 blades, high speed
with 60m per minute, instead of traditional slitting equipment
completely.
6 The waste removing system
The precision machinery design can control the roller rotating
uniformly, avoid removing waste discontinuously due to unstable
pressure, keep finishing labels clean.
7 Sheet Cutter
The optional built-in Pc350 Sheet Cutter can be in line with the
main Die-cutting, to perform the synchronous die-cutting and sheet
cutting.
Software Features:
• Running status can be seen in real-time
• Choose the quantity of the heads based on graphics
• Choose the heads distance automatically
• Support file database
• Intelligent cutting with trajectory optimization
• Auto-generate the working records
