    Double Coating Long Run-Length Thermal CTP Plate For UV Ink Offset Printing

    Ask Lasest Price
    Brand Name : EcooGraphix
    Model Number : ECOO-TSR
    Certification : CE, ISO900
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 5000, 000sqm
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

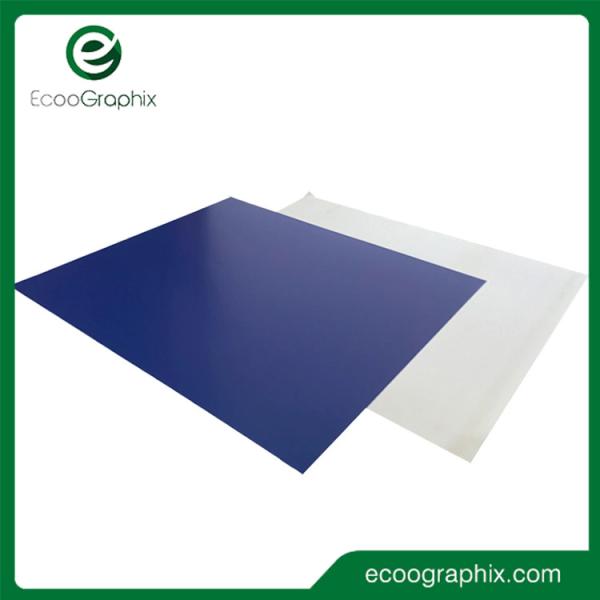

    Double Coating Long Run-Length Thermal CTP Plate For UV Ink Offset Printing


    Double Coating Thermal CTP Plate for UV Ink Offset Printing



    Model: ECOO-TSR


    Brief introduction

    Double Layer Coating Thermal CTP Plate ECOO-TSR plate is a positive-working plate for commercial printing. The plate is bakeable, and it is compatible with ordinary ink and UV ink.


    Features

    1. super long running length 2. workable with UV ink 3. solvent resistant


    Application

    This plate is workable with most commercial printing, newspaper printing, and package printing, and is ideal for customers who are looking for robust thermal CTP plate.


    Specification



    Plate Type:
    Positive Working Thermal CTP Plate(Double Layer)


    Application:
    High grade offset commercial ,packaging or newspaper printing

    Substrate:
    Electro chemically Grained and Anodized lithographic Aluminum


    Plate Thickness:
    0.15,0.20, 0.25,0.30, 0.40 (mm)

    Maximum short grain width:
    Maximum width 1325 mm


    Length of Press Runs:
    Ordinary Ink: 200,000 to 400,000 impressions unbaked
    UV Ink : 50,000 to 100,000 impressions


    Exposure energy:
    120 - 150 mj/cm²


    Spectral Sensitivity:
    800-850 nm - Peaks 830nm

    Resolution:
    1-99% at 400 LPI or FM 10 micron stochastic


    Safelight:
    Daylight handling

    Shelf Life:
    12 months under recommended storage conditions


    Storage and handling:
    Stored in a cool and dry environment, away from excessive cold, heat and humidity.


    ModelECOO-TSR
    Plate TypePositive Thermal Digital Plate
    ApplicationCommercial, newspaper and packaging print
    SubstrateElectro chemically Grained and Anodized lithographic Aluminum
    Gauge0.15, 0.30mm
    Maximum short grain widthMaximum width 1280 mm
    CoatingBlue
    Length of RunUnbaked: 400,000 impressions UV Ink :100,000 impressions
    Plate settersAll thermal CTP machine
    AluminumStandard 1050 Alloy
    Exposure energy120 - 150 mj/ m²
    Developing time25-30 sec
    Spectral Sensitivity780 - 850 nm
    Resolution1-99% @ 400LPI
    DeveloperEcoo DV-T Series Developer
    Processing temperature23ºC+/-2ºC
    Processing Speed0.80 - 1.20 m/min
    safelightDaylight handling
    Shelf life12-18 months under recommended storage conditions
    PackagingAvailable in all standard formats, including bulk packaging options such as APL packaging
    Storage and handingStored in a cool and dry environment, away from excessive cold, heat and humidity


    Producing and Packing


    From producing to delivery,we make every details very carefully to guarantee the good product quality and service to customers.




    More Details


    FAQ


    Q1: Can I get the sample?
    A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
    Q2: What is the cost for the CTP plate sample freight?
    A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
