1. MACHINE INTRODUCTION
VD3350 is a digital labe cutting machine. It consists of 4 parts:
the unwinding unit, the cutting unit, the stripping unit and the
rewinding unit. It is featuring for being full digital and automatic, no need of any die cutting moulds
and is able to handle with variable patterns. It is perfect to work with roll-to-roll label printing machines.
Please kindly check the enclosed machine working video for your
better understanding.
2. TECHNICAL DATA
| Model | Ecoo-VD3350 |
| Max. media roller | diameter 450mm |
| Cutting media width | 40-350mm |
| Max.label width | 330mm |
| Min.label length | 10mm |
| Max.label length | 600mm |
| Cutting speed | max.9m per minute (depend on label shape and size) |
| Cutting blades | (standard) 4 pcs |
| Slitting blades | (standard 4 pcs ) max.15pcs |
| Cutting tracking | CCD camera |
| Die-cutting technology | with tungsten steel rotary blades |
| Cutting precision | 0.1mm (duplicate) |
| Slitting speed | Max. 100m per minute |
| Slitting width | 10-330mm |
| Slitting precision | 0.1mm |
| Machine size (W*D*H) | 2100*1195*1575 mm |
| Machine weight | 1200kg |
| Power | 110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS |
| Warranty | 1year (besides high consumable parts) |
| Options | Cutting head/Slitting unit/Film back liner removal/Sheet paper cutter |
3. FEATURES AND OPTIONS
Advantages
1. Fast and high precision with full-servo motor
2. Fully automatic tension and feeding control
3. Intelligent position, choose file automatically
4. Standard 4 cutting heads distance can be adjusted automatically
5. Support 3 units cutting simultaneously
6. Intelligent cutting with trajectory optimization
Options
1. 3 speed options with different blades quantity, 1 group of
blades with speed at 9 m/min, 2 groups at speed 18m/min and 3
groups at 27m/min
2. it has film laminationg option.
3. roll to roll, roll to small roll, or roll to sheet by adding a
label sheet cutting at the end.

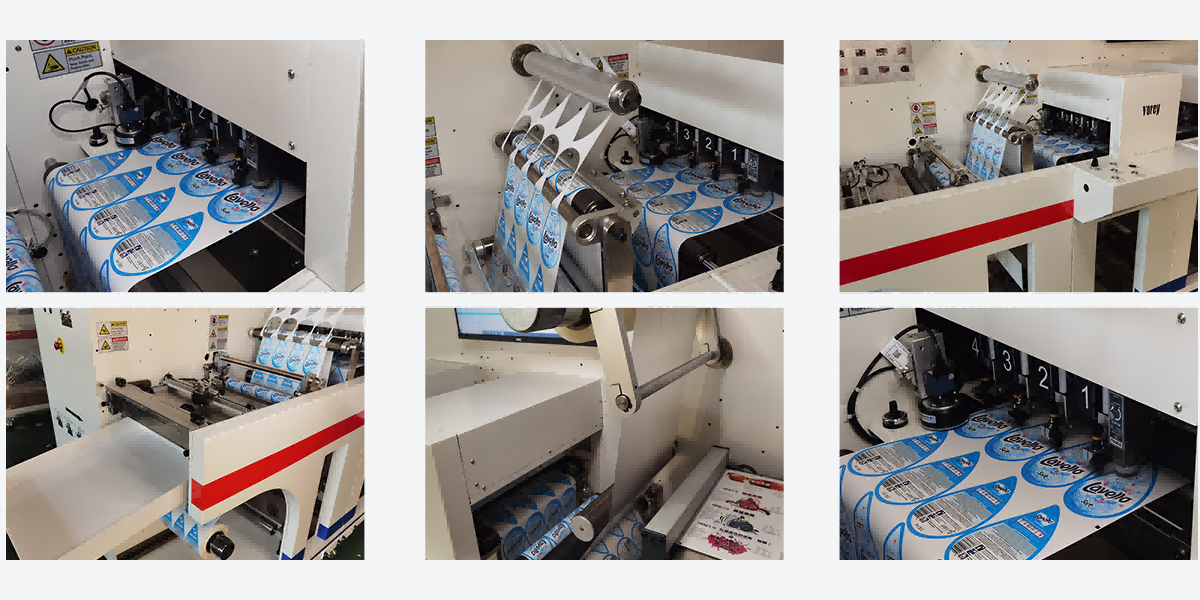

4. FUNCTION UNIT
High precision feeding system:
Utilize the ultrasonic web-guide system, it makes sure the feeding
perfectly.
Cold laminating
It has cold laminating function, your label will be bright and
perfect. The back liner removal is optional.
Digital die-cutting system
VD3350 Digital label die-cutter utilizes high precision screw
transmission system. Max speed can be 30m per minute. Individual
control for the 4 heads, combining with the function of auto adjust
the heads distance, to make the every single head on or off.
CCD identify system
With the CCD camera position and identify system, to recognize the
sequence, to reach the function of changing file and cutting next
graphics automatically.
Precision slitting system
Utilize rotary slitting mode, can install max.15 blades, high speed
with 60m per minute, instead of traditional slitting equipment
completely.
The waste removing system
The precision machinery design can control the roller rotating
uniformly, avoid removing waste discontinuously due to unstable
pressure, keep finishing labels clean.

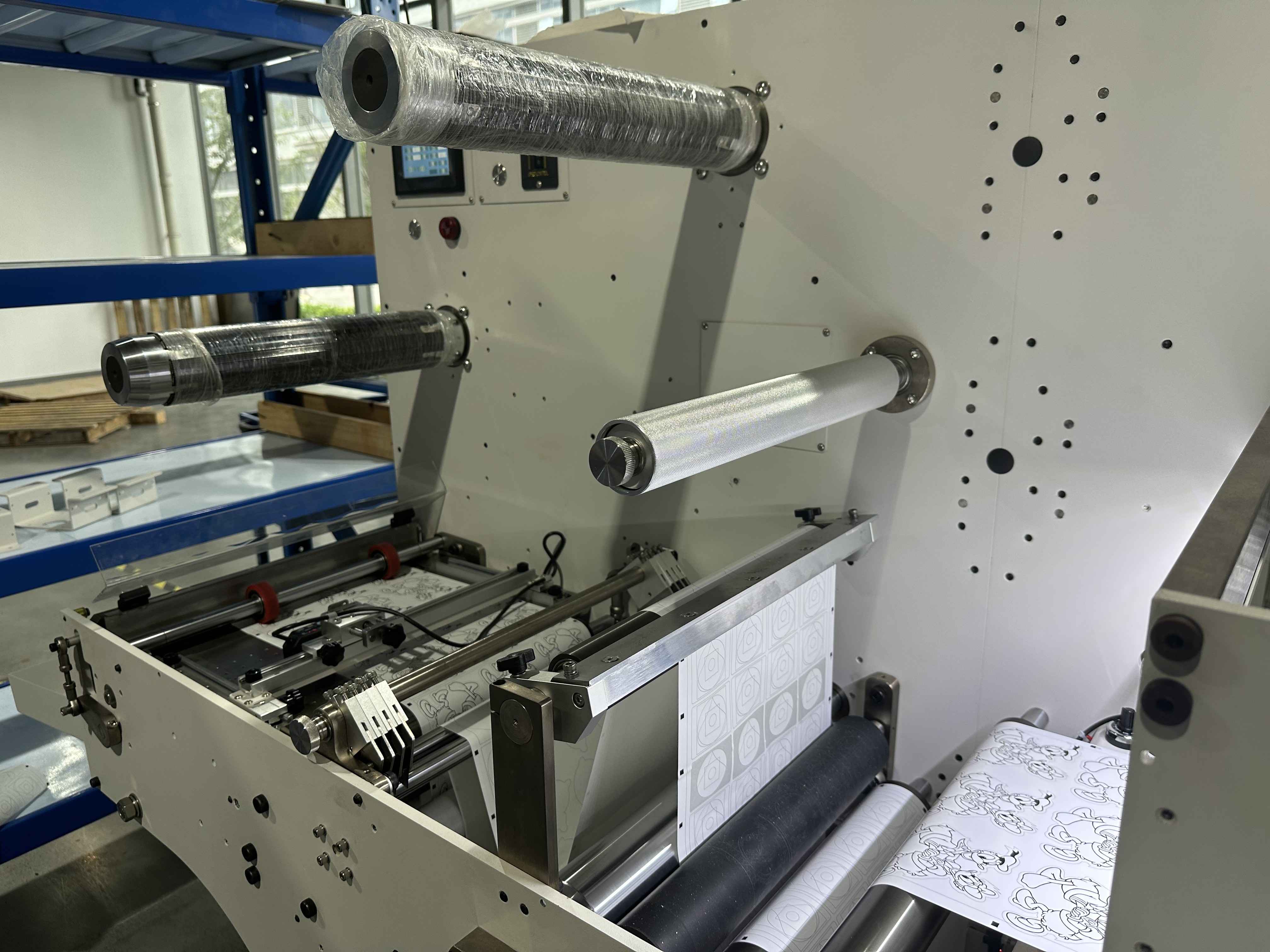

Sheet Cutter
The optional built-in Pc350 Sheet Cutter, can be inline with the
main Die-cutting, to perform the synchronous die-cutting and sheet
cutting.

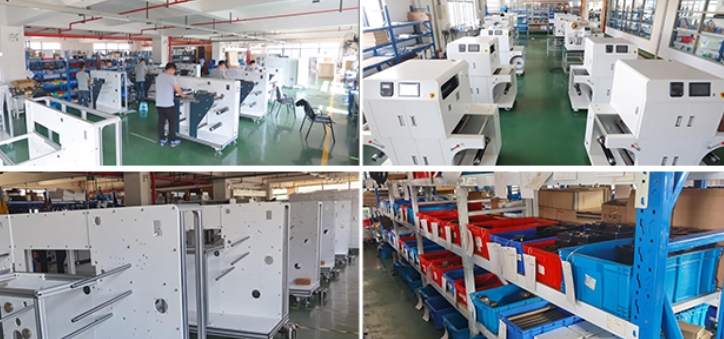

5.FACTORY AND CETIFICATE
