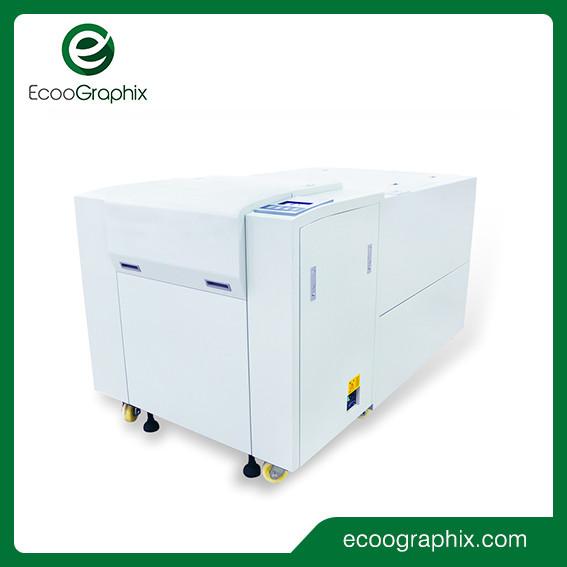

    High Precision Color Computer To Film Laser Film Making Machine Imagesetter CTF

    Ask Lasest Price
    Brand Name : EcooGraphix
    Model Number : Ecoo-DX2800
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 900 SETS/YEAR
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    High Precision Color Computer To Film Laser Film Making Machine Imagesetter CTF

    High Precision Color Computer To Film Laser Imagesetter CTF

    Model: Ecoo-DX2800


    Introduction:
    DX2800 High precision, full automatic, 60m lining by roller laser imagesetter without any dark room is with full automatictity operation during whole process, grid reverting exactly and high precision resetting and so on. Also it is the ideal choice of large plate making center, news printing, circuit printing and escutcheon trade.


    Machine Features:

    High precision
    Complete and automatic, from computer to film stacker
    Semiconducter lasers, being durable
    Stable service of spare parts and after-sale


    Specification:

    ModelDX1800DX2800DX4800DX2000
    Film dimensions(mm)

    1320mm/ 1120mm/ 940mm

    × 914mm / 760mm / 660mm

    940mm/ 812mm × 660mm - 508mm635mm × 457mm2000mm × 1200mm (optional)
    Scanning resolution1500dpi---4000dpi (optional)600dpi---4000dpi (optional)
    Scanning modeExternal drum, broad band laser scanning with high speed
    Repeatability Precision± 0.01mm± 0.02mm
    Operation modeFull automatic, 60m roll films with film processor, without dark roomHalf automatic, single piece of film loading, with dark room
    External dimensions2710mm×1600mm×1160mm2580mm×1360mm×1180mm2390mm×1060mm×1050mm2050mm×1040mm×1240mm



    The Applied film available on this machine:
    Thickness: 0.1mm
    Emulsion: outside
    Inner diameter: 72mm

    Spec: HeNe red laser sensitive, hard flange



    FAQ:
    1. What kind of laser heas is this machine using?
    It is semiconductor laser head, which is more durable.

    2. What is the language of the sofeware?
    English.

    3. What machines do the imagesetter system have? Shall the buyer buy other supporting machine?
    This system includes Imagesetter, with online processor, with Eagle 4.0 RIP software, driving computer. No need of other supporting devices purchasing.

    4. What is installation and training?

    We prefer remote installation online with the assisstance of our technical team. But if customer requires local installation, our engineer will fly as soon as possible the buyer should take the cost of visa, round trip freight, local accommodation and meal.
