Paper Roll Sheeter and Sheet Paper Cutter with Slitting and Trimming

Features

- Utilizes Advanced Techniques from Britain: The HSC web cutting machine incorporates cutting-edge technology sourced from Britain, ensuring superior performance.

- Servo Motor Transmission: Equipped with a servo motor for efficient and reliable transmission.
- Fast and Stable Paper Cutting: Achieves high-speed and stable paper cutting operations.
- Precision Engineering: Utilizes precision bearings and cutting knives from Germany to guarantee high cutting precision.
- User-Friendly Interface: Features a touch screen computer interface for simple operation. The intuitive design and reasonable structure enhance ease of use and prevent jams, ensuring smooth paper processing.
- Boosts Efficiency and Profitability: Widely favored in the papermaking and printing industry, this machine significantly enhances efficiency and brings substantial benefits to your company.

Specification

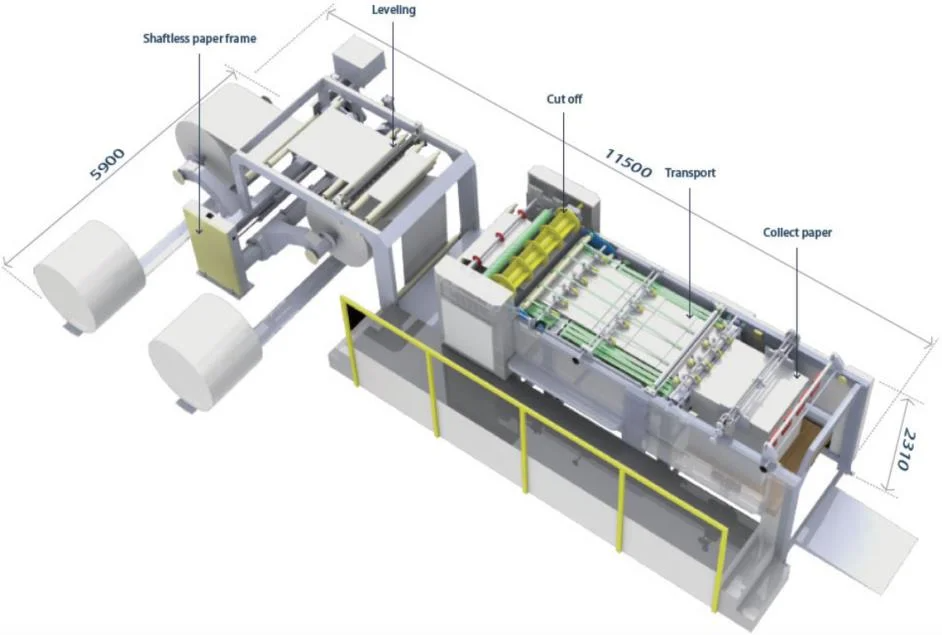

Machine Spare Parts

1. Precision Single Knife Cutting Machine
2. Automatic Prism Adjustment System for Paper
3. Middle Slitting and Waste Collection Paper System
4. Automated Counting and Label Insertion Equipment (with Count Marking)
5. Paper Transport System
6. Electrical Control System
7. Drive Motor
8. Accessories
9. Dual-Layer Pneumatic Shaft Paper Rack (2-Roll Stand)
10. Automated Jogger System with Motor-Controlled Paper Stacking Stand

Unwinded stand

Type: Double Arm Paper Core Rack for 3", 6", and 12" Rolls
- Features two unwinds with pick-up type located at the rear of the machine, designed to support reels weighing approximately 1500kgs.
- Hydraulic up and down movements, directly controlled from the console via selectors regulating solenoid valves.
- Hydraulic pressure controls the paper arm's closing, moving, and lifting actions.
- Stable and rapid lifting movement ensures simple and convenient operation.

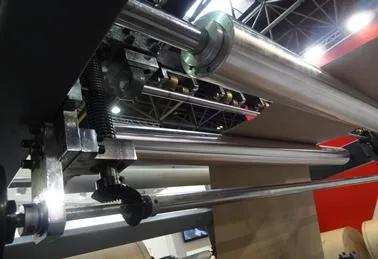

Cutting unit

Cutting Unit:
- Knife: Utilizes the British cutter method to minimize load and noise, extending cutter lifespan.
- Knife Roller Body: Steel welding construction undergoes precise machining and dynamic balance adjustment, effectively reducing vibration and noise during high-speed operation.
- Under the Knife: Knife block made of cast iron, integrally molded casting, and precision machining ensure stability.
- Back Cutter: Crafted from special steel and undergoes precision knife processing, resulting in a long-lasting blade that is easily adjustable.

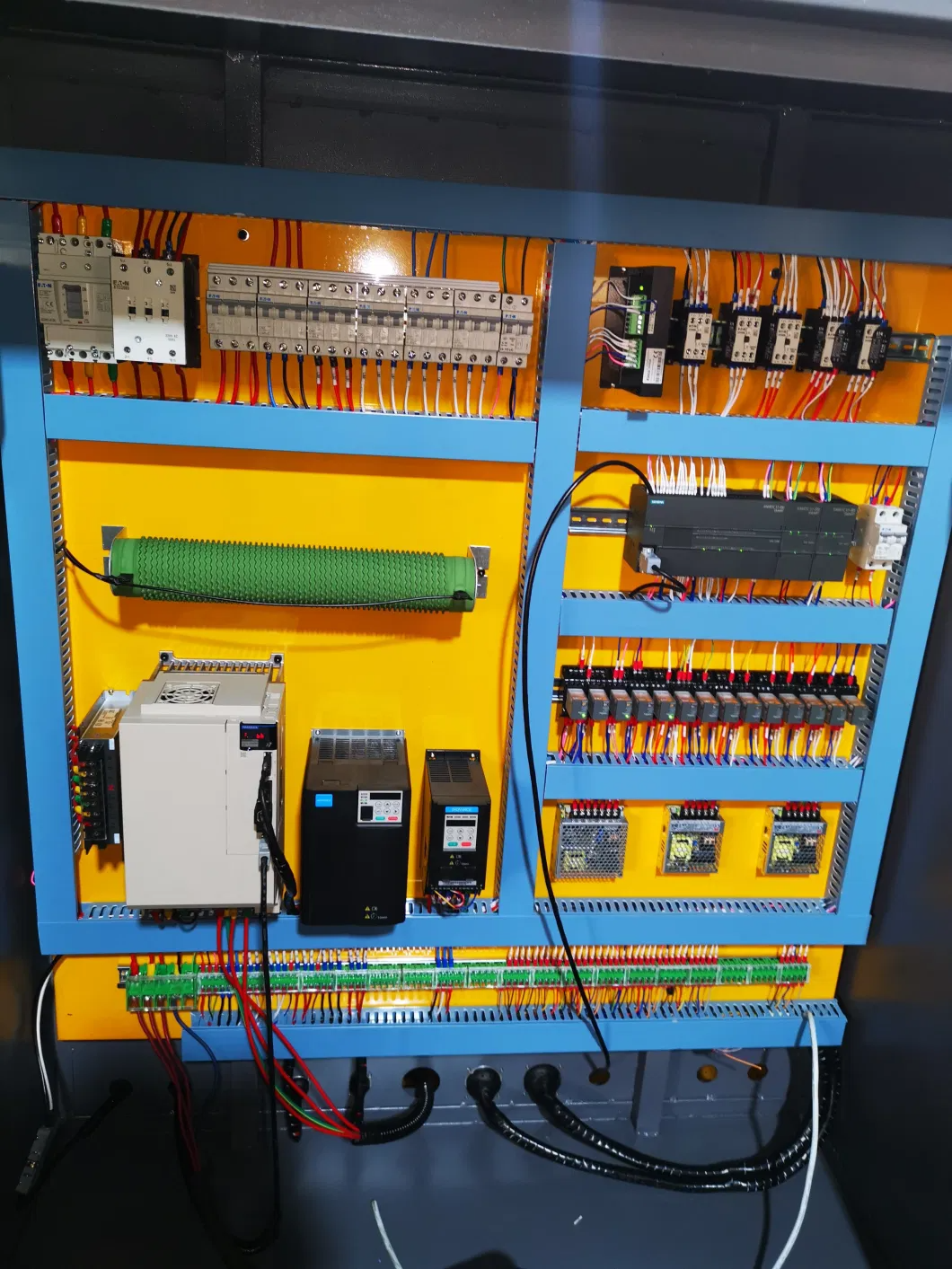

Electronic control (the Yaskawa servo and Siemens PLC)
TPC7062KS and Yaskawa Processor communication, Mainly used in the production of data input equipment operating status monitoring, and system failure alarm indication. The rotating series drives Yaskawa the JAPAN company Yaskawa I quick drive, based on the production of man-machine interface input parameters from the actual speed traction roller encoder feedback and accurate positioning.

The conveyor and paper collection system by jogger

- Multi-Stage Conveyor System: Features multiple stages, transitioning from high speed to low speed. Initially separates cut paper quickly, then overlaps the paper, followed by collection and stacking.

- Lift Mechanism for Stacked Paper: Raises stacked paper sets to a considerable height, automatically dropping them when needed.
- Stacker Table with Three-Sided Shake Finishing Function: Equipped with a motor to drive the paper from one side, while high-quality motor joggers on both sides manually adjust the paper's amplitude. This improves operational simplicity and safety.

Curly Device

The curling device, positioned before the slitting device, eliminates roll curl or fold, ensuring stable paper roll tension. As the paper roll enters the device, it first passes through the deconvolution component located at the edge of the roll, guided by rollers.

The New Anti curvature device
Effectively remove the curl of the roll to make the paper more flat, more conducive to the paper roll tension stability.

Squareness adjustment system (Auto Prismatic adjustment system for paper):
Adjust the squareness of the paper, our engineer will fix it once, and the operator will not need to readjust.

Slitting knife
Three sets of slitting knives are used to trim and middle slitting.

Adjust The Angle Automatically (paper aligning system)
The precision of the stepper motor is controlled by the length of the cut precision screw adjustment and the inclination of the knife group, to effectively ensure the straight angle of the edge of the cut sheer, reducing the waste of time manually adjusting the angle of error rate and adjustment.

Automatic paper jam stop:
Have a sensor to signal to the system if any paper jam occurs at the conveyor, and the machine will stop immediately to save the papers.

Automatic marking machine:
With precise count after insert marking, operators only need to input on the man-machine interface to after the number of paper, which can be by the Settings to marking the quantity of paper

The main machine structure (Knife holder and holder stand)
The main machine wall through finite element analysis, mechanical vibration analysis, and optimization of the frame uses high-quality nodular cast iron for the integration of design, and through precision machining, perfects the resonance phenomenon between the transmission components, making the operation more stable, improve the service life of the bearing parts.

Web-guide system
Strict process quality control, servo control system durable, maintenance-free, fine processing, high dynamic response, no buffering, accurate positioning, driver limit digitally adjustable. The display can be automatically set to sleep for automatic operation, which can save energy. The large screen displays in real-time, and the system running status is clear inside.

Driving Motors:
1. AC Servo motor & encoder for cross knife
2. AC motor & frequency transformer for high-speed conveyer and low-speed conveyor
3. AC motor for up & down paper piling stand
4. AC motor for joggers
5. AC motor for unwind stand
6. AC motor for collecting waste edge
