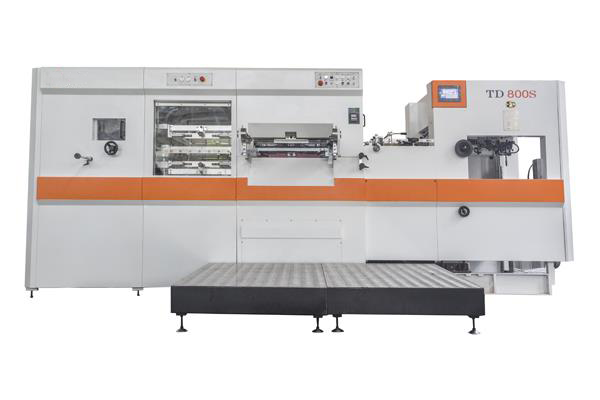

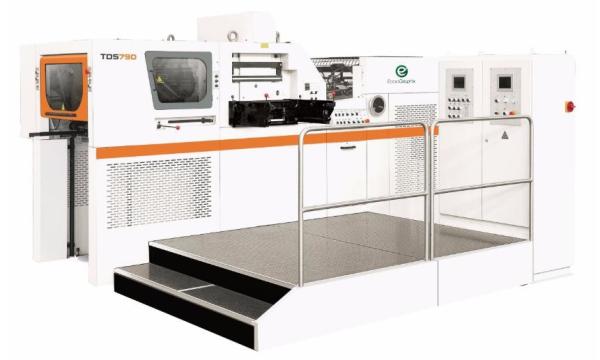

Specification
Model: ECOO-TDS800
Sheet thickness: 0.2-2mm cardboard E flute corrugated paper
Max. Sheet Size(mm): 800x580
Min. Sheet Size(mm): 310x310
Max. die cutting size(mm): 790x570
Max. stamping size(mm): 790x520
Inside chase size(mm): 940x610
Height of cutting rules(mm): 23.8
Inter-platen distance(mm): 51.5
Max. pressure: 200 tons
Min. gripper margin(mm): 8
Max. machine speed(sheets/hour): 7000
Max. stamping speed(s/h): 5000
The thickness of stamping plate(mm): 5(optional 4+1)
| Model | ECOO-TDS800 |
| Max. Sheet Size(mm) | 800x580 |
| Min. Sheet Size(mm) | 310x310 |
| Max. die cutting size(mm) | 790x570 |
| Max. stamping size(mm) | 790x520 |
| Inside chase size(mm) | 940x610 |
| Height of cutting rules(mm) | 23.8 |
| Inter-platen distance(mm) | 51.5 |
| Max. pressure | 200 tons |
| Min. gripper margin(mm) | 8 |
| Max. machine speed(sheets/hour) | 7000 |
| Max. stamping speed(s/h) | 5000 |
| The thickness of the stamping plate(mm) | 5(optional 4+1) |
| Sheet thickness | 0.2-2mm cardboard E flute corrugated paper |
| Feeding pile height(mm) | 1300 |
| Delivery pile height(mm) | 1000 |
| Electric heating system | 10 zones |
| Stamping rolls | 2 longitudinal and 2 transversal |
| Min. foil width(mm) | 40 |
| Foil reel core(mm) | 25(1") 76(3") |
| Mine Motor(kw) | 7.5 |
| Total power(kw) | 40 |
| Air supply | 0.8-1.0 MPa, ≥0.6cbm/min |
| Overall dimension(mm) | 4900x2000x2000 |
| Weight of machine(tons) | 15 |
Machine Spare Parts
Feeding Unit
• Pile tray with a handle allowing manual lateral correction of the
pile during production
• Stream-wise feeding system with the highest speed of 120 sheets
per minute
• 2 suction cups each for lifting paper, 2 suction cups for moving
paper
• Height and angle of suction heads are easily adjustable
• Electronic safety devices preventing feeder pile from over
ascending
• Micro-adjustment is available for transversal positioning of pile
table
• Precision double-sheet detector
• Easy changeover of pull and push side guides simply by turning a
bolt without the need to remove and replace the complete side guide
• 2 front guides with micro-adjustment and the side guide is
adjustable by wheel handle
• Photo-electric detector with automatic stop system on feeding
table in case of paper jam
• Separate drive controls of the feeding unit & the main machine
for easy make-ready
• PLC and electronic cam for timing control
Die cutting Unit
• Siemens main motor controlled by Schneider inverter control
• Micro-adjustment of cutting force by worm gear driven by motor
and controlled by touch screen
• The pressure accuracy can be up to 0.01mm
• Crankshaft made of 40Cr steel
• Machine frames made of Q235-A Steel, upper and lower platens made
of QT60 ductile iron with resin-coated sand with Meehanite Die Cast
Iron Technology
• Cutting chase turn-over device
• Overload protection device with torque limiter for the highest
safety of the operator
and equipment
• 7 sets of gripper bars with grippers made of lightweight and
durable aluminum
alloy with ultra-hard coat and anodized finish ensures accurate and
consistent
paper registering
• After a long run test and delivered in pairs, the main gripper,
chain from Subaki,
Japan
•High-pressuree index drive system for gripper bar positioning
control
• Pneumatic lock-up and release of cutting chase
• Centerline system for quick job changeover
Stamping unit
• The 2 longitudinal and 2 transversal hot stamping axes fully meet
the customer's hot stamping needs for products.
• The uniform heating of 10 areas enables the product to show a
more uniform hot stamping effect.
• PLC control servo system.
Delivery Unit
• Safety photo-electric devices preventing over-ascending and
over-descending of delivery paper pile
• Adjustable depressor brush helpsunloadg paper from grippers
andpileg up paper
• High pile design up to 1020mm
• Automatic auxiliary belt table available for non-stop delivery
• Feeder movement and speed control can be adjusted in the delivery
unit
Electric Parts, Operator Interface,e, and Safety Detector
• The high-speed Japanese industrial Omron PLC system
• Omron operator interface with touchscreen
• Omron Electronic cam switch and encoder
• Electronic detectors, micro switched and photo-electric cells
controlled by PLC on the entire machine
Automatic Lubrication System
• Automatic oil pump and distribution system for the entire machine
with a preset timer
• Lubrication oil distribution for gripper chains with individually
controllable valves for each chain
Safety Devices and Quality Approval of Components
• All electronic and electrical parts are CE-approved
• Overload protector for the protector and equipment
• Gripper chain clutch for the protection of gripper bars
• Emergency stop buttons on the entire machine for quick and easy
access
• Transmission of main unit adopts imported A/C frequency converter
control, start-up and stop of the machine are controlled using
imported air clutch
• Running of the whole machine is controlled by PLC. Interface
touch-screen for monitoring machine running condition, trouble
indications, and their corresponding shooting ways. This is more
operator-friendly
• Independent temperature control of each heating zone makes the
operation temperature of the machine more equal and stable. The
function of timing pre-heating can enhance working efficiency
greatly
