4Clamps Book Binding Machine PUR Gluing Perfect Binder
Introduction:
TBT50/4D is a cutting-edge 4-clamp PUR perfect binder designed for
efficient short and medium-order production. With a maximum
mechanical speed of 2000 copies per hour, its technical prowess
boasts stepless variable speed control, a PLC programmable
controller, and independent temperature control with overload
protection for its double glue pot.
This machine stands as the pinnacle of international counterparts,
featuring an upper-sealing clamp mechanism adorned with multiple
national patents. Compliant with European standards, it proudly
holds a CE certificate, solidifying its status as a leader in the
field.
| 4 Clamps PUR Automatic Book Binding Machine |
| Binding Size | Max:450X320mm ; Min:150X105mm |
| Binding thickness | 2-50mm |
| Binding speed | Max:2000 Books/ Hour |
| Cover Size | Max. 640*450mm |
| Cover Weight Range | Normal Paper 81.4 to 302.4 gsm Coated Paper 104.7 to 348.9 gsm |
| Power required | 13Kw |
| Weight | 2100Kg |
| Dimensions | 3100x1300 x1250mm |
Features
- Quick Setup and High Automation: All setups can be done automatically just by inputting data into
the touch screen or via scanning the barcode information of the
book block and the cover.
- Fast Automatic Changeover: Automatic job changeover can be accurately completed in as short as
10 seconds for changing book thickness and book formats at the
fastest speed.
- Large Binding Compatibility: Digital Robot 2000A offers strong binding for different kinds of
book blocks, such as loose-sheet book blocks, cold-glued book
blocks, sewn book blocks, etc.
- Optional PUR Gluing Station: Changeover between EVA and PUR gluing application systems can be
easily finished in just a few minutes.
- Soft Book Lay-down System: The specially designed soft book lay-down system can maximally
- protect the just-bound book spine from any slight deformation.
After data input, unites automatic adjustment as below:
- Spine milling station: Width adjusts automatically.
- Notching station: Width adjusts automatically.
- Side glue station: Width adjusts automatically, with automatic
spine glue cut-off.
- Cover guides on the cover feeder: Width adjusts automatically.
- Scoring: Width adjusts automatically.
- Cover guides (front and side) on the nipping table: Width adjusts
automatically.
- Book block width between nipping plates: Automatic adjustment.
Coupled with key features such as step-less-speed regulation, PLC
program control, precise temperature control, automatic detectors,
and overload protection, this equipment is tailored for the
flexible and swift binding of small to medium book quantities.
FAQ:
1. What are your main products?
We offer a full range of printing materials covering prepress,
pressroom, and post-press machines and consumables. We serve hard
around the clock for dealers and end users who are in either the
packaging industry or the book printing industry. We mainly supply
Prepress CTP machines, Printing materials, Digital Label Printers,
Digital Book Binders, Digital Foil Stamping and Die Cutting
Machine, UV Inkjet Printer, Paper Slitting and Rewinding machines,
Paper Box/Cup Forming machines, and so on.
2. Where is your factor?

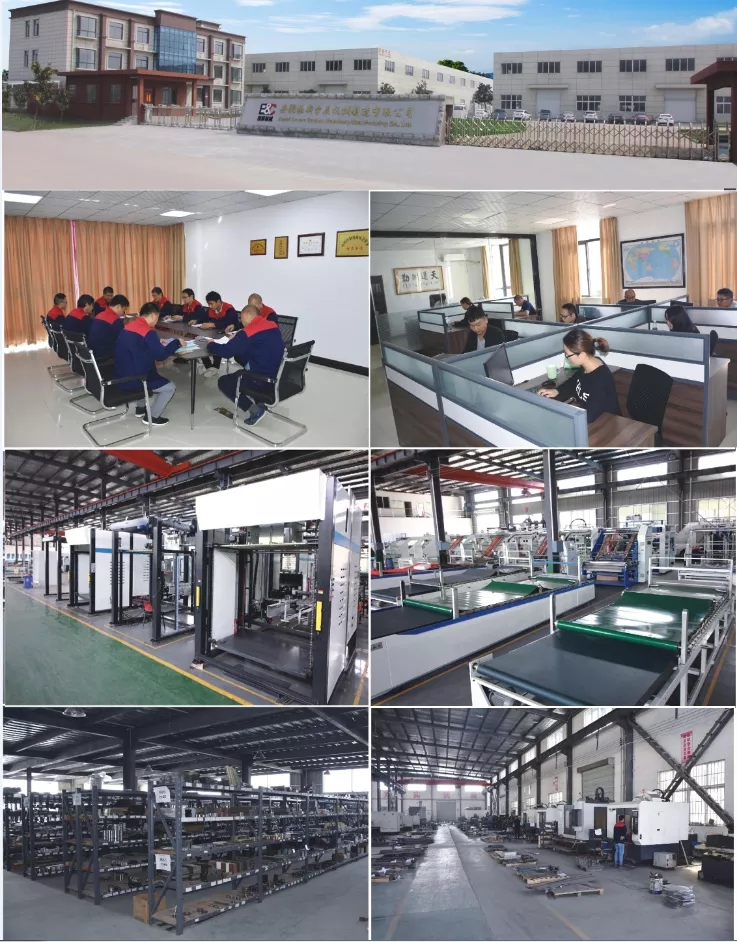

Our factory is located in Shenzhen city, which is about 1.5 hours
by train from Shanghai. You are warmly welcome to visit our
factory!
3. What is your warranty?
One to Three years.
4. What is the Lead Time?
Usually 20-30 days, and we will try our best to meet your demands.
5. Is there any options, please?
Yes, we provide Nordson Nozzle PUR Application System:
Nordson PUR melter (MiniPUR Plus) + Nordson PUR Automatic Gun
(SB60-Bod), but not for free.
6. What about the Installation and after-sales technician support?
Our engineer can help with the installation and provide the
necessary training. The buyer should take the round airplane
tickets and service charge and the local accommodation cost. If you
have any problems or questions, we will be at your disposal 7x24
hours.
