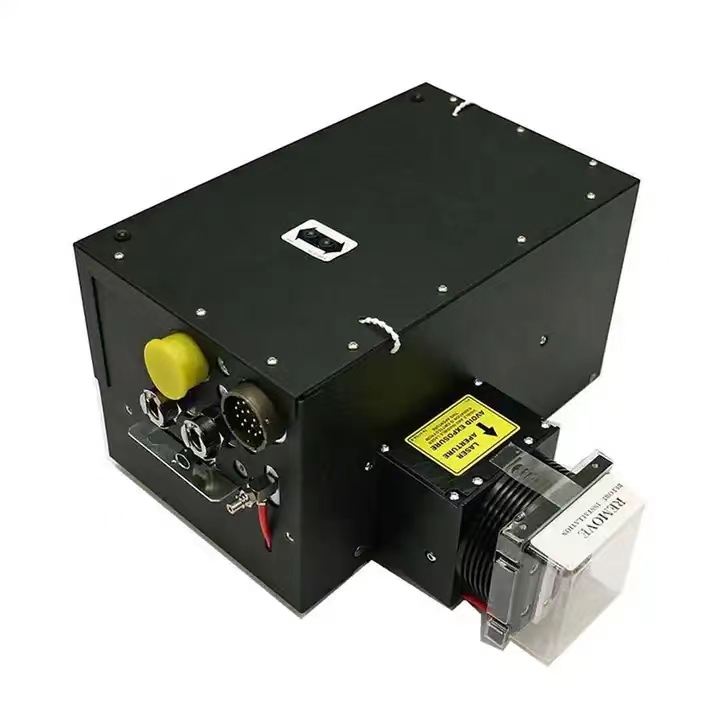

Offset Printing CTP Machine Laser Exposing Head Spare Parts
1. Application
EcooGraphix offers new or used laser heads for CTP (Computer To Plate) Plate-making Machines.
These heads efficiently translate computer images directly onto
printing CTP plates, eliminating the need for film and reducing
labor costs.
EcooGraphix UV400 series thermal CTP machines are designed for A2
or B2 paper sizes, catering to newspaper or commercial printing
needs. With an output speed ranging from 16 to 28 plates per hour
(PPH), these CTP machines are operated manually, ensuring
user-friendly operation.
With EcooGraphix CTP solutions, customers benefit from excellent
output image quality, reliable stability, and space-efficient
designs that offer enhanced flexibility while occupying minimal
space.
2. Characteristic
The EcooGraphix system supports plates up to 800×690mm in size.
Features: Compact design, ensuring a small footprint while maintaining high
stability and delivering impeccable output quality.
Choose between UV and thermal plates to optimize production costs
according to your requirements.
1. Specification
Model: EcooSetter UV-400S CTcP
Laser wavelength: 400-410nm
Plate: UV plate, high-sensitive PS plate
Exposing Method: External Drum
Imaging System: 32-channel Throughput: 22 plates per hour, 800mmx660mm 2400dpi
Plate Size: Max. 800x690mm min. 400x300mm
Plate Thickness:0.15mm to 0.3mm
Resolutions:2,400dpi, 1200dpi optional
Repeatability:±5μm(continuous exposure for four times or above on
the same plate with a temperature of 23ºC and humidity of 60%)
Interface: USB2.0
Weight:800KG
Size:1900×1200×1000mm(W×D×H)
Power Supply:Single-phase: 220AC+6%,-10%;Power Consumption:4KW
Environment:recommended: 21-25ºC,max.18-26ºC,humidity:40-70%
2. Other Similar Models:
| Model | UV-800F | UV-800S | UV-800E | UV-400F | UV-400S | UV-400E |
| Exposing Mothod | External Drum |
| Imaging System | 64-channel | 48-channel | 32-channel | 48-channel | 32-channel | 24-channel |
| Discrete 405nm laser diode |
| Throughput | 28plates/hour | 22plates/hour | 16plates/hour | 28plates/hour | 22plates/hour | 16plates/hour |
| 1030mm x 800mm, 2400dpi | 800mm x 660mm ,2400dpi |
| Plate Sizes | Max.1163mm x 940mm
Min.400mm x 300mm | Max.800mm x 690mm
Min. 260mm x 300mm |
| Exposing Size | Max.1160mm x 934mm
Min.260mm x 284mm | Max.800mm x 646mm
Min. 260mm x 284mm |
| Media Type | positive UV-CTP plate with sensitivity ≤75mj/cm2 |
| Plate Thickness | 0.14mm to 0.30mm |
| Resolution | 2400dpi,1200dpi optional |
| Repeatability | ±5μm(continuous exposing for 4times or above on the same plate with
a temperature of 23ºC and humidity of 60%) |
| Interface | USB 2.0 |
| Plate Loading | semi-automatic |
| Net Weight | 900kg | 800kg |
Machine Size
(WxLxH)mm | 2330x1050x950 | 1900x1200x1000 |
| Power Supply | single phase:220AC,+ 6%,- 10%, power Consumption:4KW |
| Operation Environment | recommended:21-25ºC, Max.18-26ºC, humidity:40-70% |
3. Major Highlights of EcooGraphixT-800 thermal CTP
Revised:
Major Highlights of EcooGraphixT-800 Thermal CTP:
1) Proven Dot Quality: Exceptional dot reproduction from 1% to 99%, supporting up to
250lpi screening. Choose between 2400 dpi or 1200 dpi options for
superior image quality.
2) Versatility: Fully compatible with thermal non-process plates and process
plates, ensuring comprehensive plate support.
3) Robust and User-Friendly: Robust machine design coupled with user-friendly features to
minimize human error and simplify operation.
4) Premium Components: Utilizes top-class components and parts from renowned
international suppliers in Japan, the USA, and Germany for enhanced
reliability and performance.
5) Long Lifespan: Laser diodes boast a lifetime of over 10,000 imaging hours,
equivalent to approximately 200,000 plates.
6) Extensive Warranty: Enjoy peace of mind with a 3-year warranty, including free
replacement of all parts. Beyond the warranty period, parts are
available at a low cost, such as laser diodes priced at US$250 per
piece.
7) Guaranteed Service: Professional installation and training conducted by factory
technical engineers ensure optimal setup and proficiency. Regular
remote maintenance is performed every two months, with proactive
engineer visits available. Benefit from 24/7 service response for
uninterrupted operation.
8) Global Market Leader: Trusted by customers worldwide with over 6000 units installed in
the past decade. Notable installations include over 50 units in the
USA and Canada by leading press manufacturers, 35 units in Turkey
by Esen Graphics, and installations in various other countries such
as the UK, Italy, Spain, Hungary, Russia, Mexico, Brazil, Colombia,
Ecuador, South Africa, Nigeria, and more.
4. Our Factory
FAQ:
Q1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline
Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor, Offset
Plates, inks, blankets, post press Packing equipment and so on.
Q2. Where is your factory?
Our CTP machine factory is located in Hangzhou city, which is about
1.5 hours by train from Shanghai.
You are warmly welcome to visit our factory!
Q3. What is your warranty for the CTP Laser Head Parts?
One Year
