Quality Offset Ink For High And Medium Speed Printing
Introduction
The latest European technology system develops ECOO-INK-C printing
ink. It is made from polymeric, high-soluble resin, and a
newly-invented paste pigment. This product is suitable for printing
packaging, advertisements, labels, high-quality brochures, and
decorative products on art paper, coated paper, offset paper,
cardboard, etc., and especially for medium and high-speed printing.
Specification
| Type | ECOO-INK-C |
| Packing | 1kg/vacuum tin, 12tins/carton |
| Shelf Life | 3 years(from the production date); Product against light and water |
| ITEM/TYPE | TACK
VALUE | FLUIDITY
(mm) | PARTICLE
SIZE (μm) | GLOSS | SETTING
TIME (min) | DRYING
TIME (hr) | SKINNING TIME (hr) |
C
YELLOW | 8-9 | 39±1 | 12.5 | 85 | 4 | < 8-10 | > 30 |
C
MAGENTA | 8.5-9.5 | 40±1 | 12.5 | 75 | 4 | < 8-10 | > 30 |
C
CYAN | 8.5-9.5 | 39±1 | 12.5 | 75 | 4 | < 8-10 | > 30 |
C
BLACK | 9-10 | 38±1 | 12.5 | 80 | 4 | < 8-10 | > 30 |
| Tack value | The value is measured in 1 minute by an inkometer at 32ºC and
400rpm. |
| Set time | Printing adapter, 157g art paper, the volume of ink-coating can be
up to 0.125cc |
| Condition of test | Room temperature 25ºC, humidity 65%-75% |
| ITEM/TYPE | Light
Resistance | Heat
Resistance | Acid
Resistance | Alkaline
Resistance | Alcohol
Resistance | Soap
Resistance |
C
YELLOW | 3-4 | 5 | 5 | 4 | 4 | 4 |
C
MAGENTA | 3-4 | 5 | 5 | 5 | 4 | 5 |
C
CYAN | 6-7 | 5 | 5 | 5 | 5 | 5 |
C
BLACK | 6-7 | 5 | 5 | 5 | 5 | 5 |
| Lightfastness | 1-8 (weak-strong) |
| Others | 1-5 (weak-strong) |
Features
Printing speed: 12000rph-15000rph
Environment friendly
Anti-skinning performance
Good water/ink balance
Rich in printing layer
Clear and complete in printing dots
Quick-drying performance, quick setting, quick turn

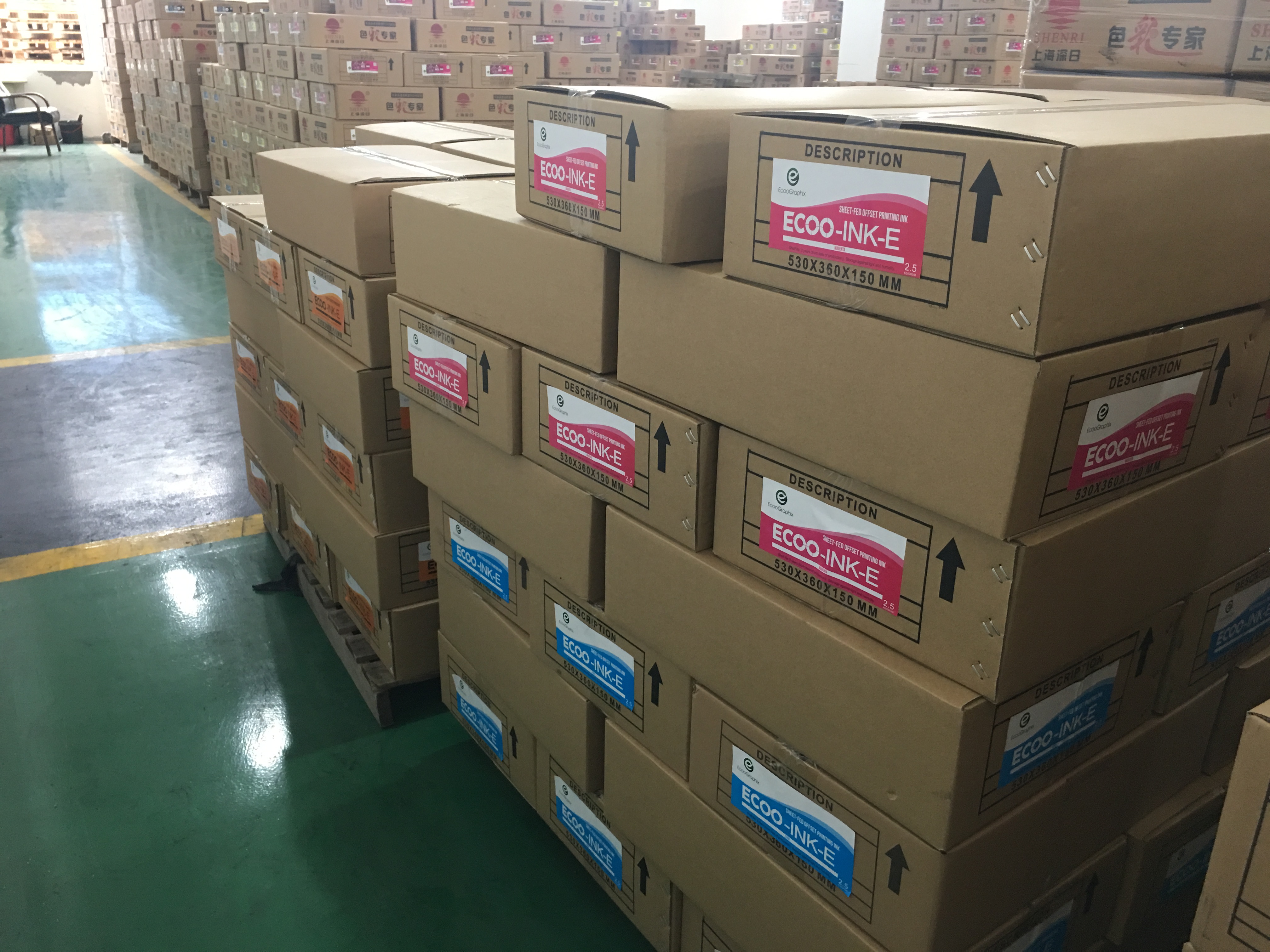

Producing And Packaging
Our factory is located in Shanghai. It has two producing plants and
an independent oil-producing line. The productivity reaches up to
4000000 tons. It is certified by ISO, Rohs. You can visit at any
time.
Certificates
EcooGraphix series Printing Inks have passed the China
environmental label product certification(ten central
certifications), ISO9001 quality management system, ISO14001
environmental protection system certification, ROHS certification
and REACH certification, American ASTM, CPSIA and other related
safety testing and certification, and the SONY SGS certification.
Tips
Tips before ink processing and after processing.
Do not judge the color of ink by the looking into the package only.
All inks appear in thick layers the container darker and dirtier as
in the print. You may mistake the black to the blue or red. You may
find bubbles in the ink which is nitrogen mixed in to exclude
oxidative drying problems. Do not worry, the bubbles will disappear
on the rolls of the inking unit and will not lead to printing
problems.
During longer print interruptions the rolls have to be cleaned and
ink in the ink duct has to be sprayed on with antioxidants.
Remove skin whenever you find it in the opened container regardless
of how small the skin is.
Inks which was mixed with printing aids should not filled back to
the original ink.
FAQ
Q1: What to do for specific color requirements from our company?
A: We offer customers inks in specific colors or ink with specific
characteristics sometimes, like drying speed, smell, resistance to
fading, and gloss. Please send us a detailed ink sample or Pantone
no# so that we can produce it carefully for you. |
| |
Q2: How to store offset printing ink?
A: The ideal process and storage temperature for offset inks is
between 18ºC-25ºC. If the offset inks are too high in viscosity due
to storing at low temperatures problems may occur due to
insufficient flow in the duct and picking at sensitive stocks. If
the inks will be processed in higher temperatures, so because of
low viscosity misting, ink/water problems or high sot gain may
occur.
The ink cans have to be stored vertically standing under the
exclusion of daylight.
|
| |
Q3: Can I visit your factory?
A: You are warmly welcome to visit our factory! Our company is in
Hangzhou city, which is about 1.5 hours by train from Shanghai.
|
| |
Q4: Can I take my brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
|
