    Ecoo 8w Paper Box Making Machine Fast Food Carton Erecting Machine

    Ask Lasest Price
    Brand Name : EcooGraphix
    Model Number : ECOO L-800A
    Certification : ISO9000, CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500 Sets/Year
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    Ecoo 8w Paper Box Making Machine Fast Food Carton Erecting Machine

    Fast Food Carton Erecting Machine Automatic Paper Box Maker


    Introduction



    The Ecoo lunch box forming machine is designed according to European industrial standards. Initially developed in China, the products developed in China, the products have achieved CE certification and have been sold to many countries in the world.

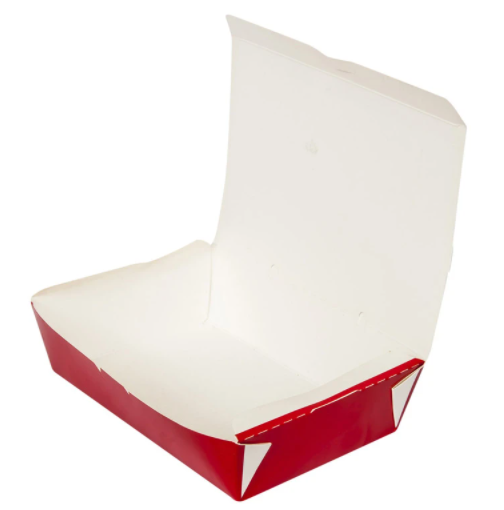

    With high quality and efficiency, it is an ideal choice for you to produce single PE-coated or double PE-coated paper lunch boxes. Adopting a servo system to control the forming structure.

    Specification


    Machine type
    L800-A

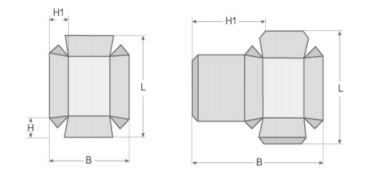

    Blank length (L)
    100mm-450mm

    Blank width (B)
    100mm-630mm

    Height of side flaps (H)
    15mm-250mm

    Height of side flaps+lid (HI)
    50mm-250mm

    Conicity
    5°-40°

    Voltage:
    380V/50HZ

    Covering Area:
    4.0M*1.2M

    The total Power:
    8KW

    Maximum Production Speed:
    200 pieces/min

    Air Pressure:
    0.6Mpa(Dry and clean compressed air)

    Packing:
    2980mm*1560mm*1320mm, N.W.: 1500KG, G.W.: 1600KG

    Materials:
    Paper Board 200-600gsm; Corrugated board paper with thickness not exceeding 1.5MM



    Machine typeL800-A
    Blank length (L)100mm-450mm
    Blank width (B)100mm-630mm
    Height of side flaps (H)15mm-250mm
    Height of side flaps+lid (HI)50mm-250mm
    Conicity5°-40°
    Voltage380V/50HZ
    Covering Area4.0M*1.2M
    The total Power8KW
    Maximum Production Speed200 pieces/min
    Air Pressure0.6Mpa(Dry and clean compressed air)
    Packing2980mm*1560mm*1320mm, N.W.: 1500KG, G.W.: 1600KG
    Materials

    Paper Board 200-600gsm;

    Corrugated board paper with a thickness not exceeding 1.5MM

    ​​

    Machine typeL800-A
    Blank lengthL100mm-450mm
    Blank widthB100mm-630mm
    Height of side flapsH15mm-250mm
    Height of side flaps+lidHI50mm-250mm
    Conicity5°-40°


    Features




    1. L800-A adopts a servo system to control the punching head, so L800-A makes it easier to change different boxes.

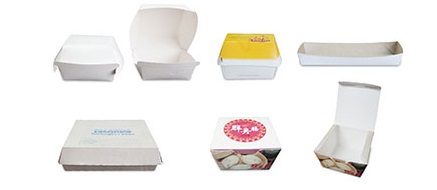

    2. L800-A is better for making eight corner boxes.

    Other Option of Food Carton Erecting Machine
    ModelL1000L1350L1560
    LanesDouble lanesThree lanesFour lanes
    Lane means independent production line. 3 lanes of the machine can make 3 types of cartons at the same time within its channels. The lanes are independent.
    Producing And Packaging


    From production to delivery, we carefully make every detail to guarantee good product quality and service to customers.
    Certificates


    FAQ


    Q1: What are your main products?

    A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.

    You can get the equipment and consumables all in one and no worry about the after-sales service from our company.


    Q2: Where is your factory?


    A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!

    Q3: What is your warranty for the CTPs?

    A: Three years' Laser Head and main spare parts for the CTPs, one year for the Processor.


    If the customer uses the EcooGraphix CTP plate with the CTP machine, we will provide a Lifetime Warranty.


    Q4: Can you also supply the Workflow and RIP?

    A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.


    Q5: What about the installation and after-sales technician support?


    A: Our engineer can help with the installation and provide the necessary training. The buyer should take the round airplane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and the EcooGraphix technical service team supports these installations remotely with regular onsite visits.


    These end users' printers all run the CTP systems with satisfaction due to our robust quality, seamless remote service, thorough training, and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle with installations, training, and after-sales service. We guarantee your satisfaction.
