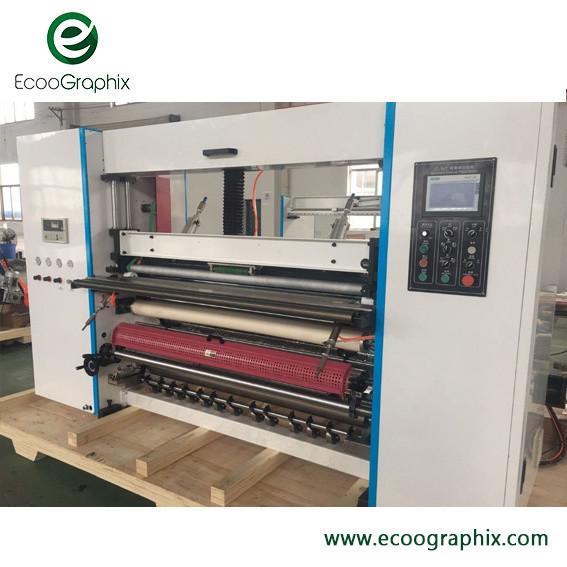

1400mm Max. Unwinding Width Shaftless Thermal Paper Slitting
Machine
Slitting Rewinding Machine Application
All sorts of thermal paper, including fax paper, cash register
paper, ATM paper, medical record paper, self-adhesive trade marks,
films and so on.
Specification
Model
ECOO T-1400C
Max. Unwinding Width
1400mm
Max. Unwinding Diameter
1200mm
Max. Rewinding Diameter
310mm
Min. Slitting Width
25mm
Max. Machine Speed
210 m/min
Main Power
3.7Kw
Total Power
6kw
Unwinding Shaft
Hydraulic Shaftless Unwinder to fix 3'' 6'' core
Rewinding Shaft
0.5'', 1'' or as your request
Weight
4000 kgs
Overall Dimension
3100*2100*1900mm
| Model | ECOO T-1400C |
| Max. Unwinding Width | 1400mm |
| Max. Unwinding Diameter | 1200mm |
| Max. Rewinding Diameter | 310mm |
| Min. Slitting Width | 25mm |
| Max. Machine Speed | 210 m/min |
| Main Power | 3.7Kw |
| Total Power | 6kw |
| Unwinding Shaft | Hydraulic Shaftless Unwinder to fix 3'' 6'' core |
| Rewinding Shaft | 0.5'', 1'' or as your request |
| Weight | 4000 kgs |
| Overall Dimension | 3100*2100*1900mm |
Details
Unwinding Section
Hydraulic Shaftless Unwinder to fix 3'' 6'' core which more easier
to loading material
Electromagnetic Brake from Taiwan
Fully automatic tension controller
One set of Photocell to tracking the precision
Slitting Section
Disc cutter
Cutter with adjustable and movable blade base.
Meter counter
Banana Roller which can avoid overlapping problem completely.
Rewinding Section
0.5", 1" or as your request
Surface Rewinding technology, it adopts vertical method to press
the rewinding roll
Electromagnetic Clutch from Taiwan
Surface Rewinding technology
Automatic cutting & gluing unit
Controlling Section
Siemens PLC & HMI from Germany
All the parameters are displayed on the monitor
Low voltage electrical appliances all from Schneider
Trimmed Waste
It adopts air blower to blow waste material off, the air blower
power is 0.75kw.
Air blower pipe is more wear-resisting.
Optional
Safety guard for the slitting device.
Emergency Switches on the 4 corner of machine.
Wrapping Line
Producing And Packaging
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
Certificates
FAQ
Q1: What are your main products?
A: Our main products are the Prepress 4up and 8up Online/Offline
Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates,
Offset Inks, Offset Printing Blankets, Postpress Packing Equipment
and so on.
You can get the equipment and consumables all in one and no worry
about the after-sales service from our company.
|
|
Q2: Where is your factory?
A: Our CTP Processor machine factory is in Shanghai, you are warmly
welcome to visit our factory!
|
|
Q3: How long is the lead time?
A: The lead time is normally 30 days. We can accelerate for emergency
cases.
|
|
Q4: Is there any certification for your machine?
A: Yes, all our machines have been certified by SGS and CE.
|
|
Q5: How long is the warranty period?
A: EcooGraphix guarantees 1 year of warranty for the laser head and
spare parts.
|
|
Q6: What is your normal payment term?
A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.
|
|
Q7: What about the installation and after-sales technician support?
A: Our engineer can help with the installation and provide the
necessary training. The buyer should take the round airplane
tickets, the service charge, and the local accommodation cost. Any
problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are
also many end users(printers) who have purchased the CTP products
from EcooGraphix China directly and the EcooGraphix technical
service team supports these installations remotely with regular
onsite visits.
These end users' printers all run the CTP systems with satisfaction
due to our robust quality, seamless remote service, thorough
training, and maintenance. If you are a printer who is considering
purchasing directly from EcooGraphix China, there is no hassle with
installations, training, and after-sales service. We guarantee your
satisfaction.
|
