ECOO T-1400C 1400mm Shaftless ATM Thermal Paper Roll Slitter Rewinder 1400mm

Hangzhou Ecoographix Digital Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap ECOO T-1400C 1400mm Shaftless ATM Thermal Paper Roll Slitter Rewinder 1400mm from wholesalers

    Buy cheap ECOO T-1400C 1400mm Shaftless ATM Thermal Paper Roll Slitter Rewinder 1400mm from wholesalers
    • Buy cheap ECOO T-1400C 1400mm Shaftless ATM Thermal Paper Roll Slitter Rewinder 1400mm from wholesalers

    ECOO T-1400C 1400mm Shaftless ATM Thermal Paper Roll Slitter Rewinder 1400mm

    Ask Lasest Price
    Brand Name : EcooGraphix
    Model Number : ECOO T-1400C
    Certification : ISO9000, CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500 Sets/Year
    Delivery Time : 45 Days
    • Product Details
    • Company Profile

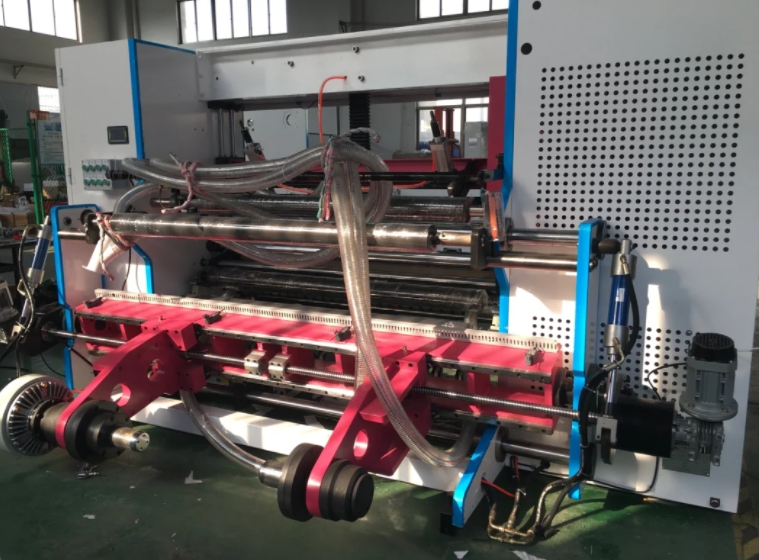

    ECOO T-1400C 1400mm Shaftless ATM Thermal Paper Roll Slitter Rewinder 1400mm


    1400mm Shaftless Thermal Paper ATM Paper Roll Slitter Rewinder





    Application Material

    All sorts of thermal paper, including fax paper, cash register paper, ATM paper, medical record paper, self-adhesive trade marks, films and so on for thermal paper slitting rewinding machine.



    *** *** *** *** *** *** *** *** *** *** *** *** *** *** *** ***

    Specifications
    Model
    ECOO T-1400C

    Max. Unwinding Width
    1400mm

    Max. Unwinding Diameter
    1200mm

    Max. Rewinding Diameter
    310mm

    Min. Slitting Width
    25mm

    Max. Machine Speed
    210 m/min

    Main Power
    3.7kw

    Total Power
    6kw

    Unwinding Shaft
    Hydraulic Shaftless Unwinder to fix 3'' 6'' core

    Rewinding Shaft
    0.5'', 1'' or as your request

    Weight
    4000 kgs

    Overall Dimension
    3100*2100*1900mm
    ModelECOO T-1400C
    Max. Unwinding Width1400mm
    Max. Unwinding Diameter1200mm
    Max. Rewinding Diameter310mm
    Min. Slitting Width25mm
    Max. Machine Speed210 m/min
    Main Power3.7kw
    Total Power6kw
    Unwinding ShaftHydraulic Shaftless Unwinder to fix 3'' 6'' core
    Rewinding Shaft0.5'', 1'' or as your request
    Weight4000 kgs
    Overall Dimension3100*2100*1900mm



    *** *** *** *** *** *** *** *** *** *** *** *** *** *** *** ***

    Technical Parameters

    Unwinding Section
    Hydraulic Shaftless Unwinder to fix 3'' 6'' core which more easier to loading material
    Electromagnetic Brake from Taiwan
    Fully automatic tension controller
    One set of Photocell to tracking the precision

    Slitting Section
    Disc cutter
    Cutter with adjustable and movable blade base.
    Meter counter
    Banana Roller which can avoid overlapping problem completely.

    Rewinding Section
    0.5", 1" or as your request
    Surface Rewinding technology, it adopts vertical method to press the rewinding roll
    Electromagnetic Clutch from Taiwan
    Surface Rewinding technology
    Automatic cutting & gluing unit
    Controlling Section
    Siemens PLC & HMI from Germany
    All the parameters are displayed on the monitor
    Low voltage electrical appliances all from S chneider

    Trimmed Waste
    It adopts air blower to blow waste material off, the air blower power is 0.75kw.
    Air blower pipe is more wear-resisting.

    Optional
    Safety guard for the slitting device.
    Emergency Switches on the 4 corner of machine.
    Wrapping Line


    *** *** *** *** *** *** *** *** *** *** *** *** *** *** *** ***

    Producing And Packaging
    From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.







    *** *** *** *** *** *** *** *** *** *** *** *** *** *** *** ***

    Certificates



    *** *** *** *** *** *** *** *** *** *** *** *** *** *** *** ***

    FAQ

    Q1: What are your main products ?

    A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.


    You can get the equipment and consumables all in one and no worry about the after-sales service from our company.




    Q2: Where is your factory ?

    A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!




    Q3: How long is the lead time ?

    A: The lead time is normally 30 days. We can accelerate for emergency cases.



    Q4: Is there any certification for your machine ?

    A: Yes, all our machines have been certified by SGS and CE.




    Q5: How long is the warranty period ?

    A: EcooGraphix guarantees 1 year of warranty for laser head and spare parts.



    Q6: What is your normal payment term ?

    A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.



    Q7: What about the installation and after-sales technician support ?

    A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.


    These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
