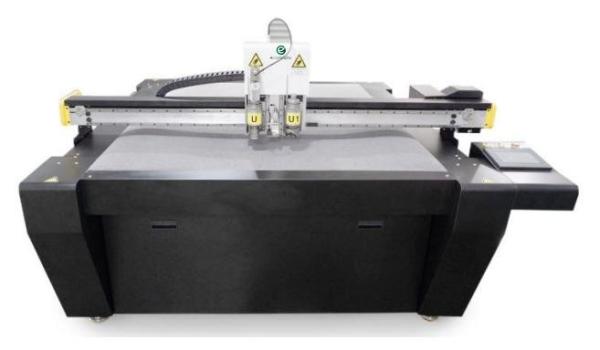

    Multi Axis Control Foil Stamping Die Cutting Machine For Packaging

    Ask Lasest Price
    Brand Name : EcooGraphix
    Model Number : ECOO-1316
    Certification : ISO9000, CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 2000 Sets/Year
    • Product Details
    • Company Profile

    Multi Axis Control Foil Stamping Die Cutting Machine For Packaging

    Intelligent Cutting Machine For Packaging


    Control System:
    Our printing machine is outfitted with an advanced multi-axis high-speed motion control system boasting independent intellectual property rights. This allows for convenient system upgrades and maintenance, reducing reliance on third-party services. With control firmly in hand, users can easily customize special procedures to meet personalized requirements and remotely upgrade the system, ensuring both convenience and cost-effectiveness.
    Positioning Function:
    Featuring both camera and laser technologies, our machine achieves precise positioning of various materials with high precision and minimal errors, guaranteeing exceptional printing accuracy.
    Safety Protection:
    To ensure user safety, the working area of the machine is equipped with infrared blocking technology, providing comprehensive safety protection throughout the printing process.
    Specification


    ModelECOO-1316
    Cutting size1300*1600mm
    Cutting materialsVarious corrugated board, plastic corrugated board, Yellow cardboard, red cardboard, white cardboard, gray cardboard, PVC board, Foam board, EVA, KT board, sticker, gasket, etc
    StandardOscillating tool, creasing wheel,pen,drag knife, V cut knife,cursor, milling cut knife
    Cutting thickness≤50mm(according to different materials)
    Speed0-1200 mm/s
    Fixing MethodVacuum suction
    Repeat precision≤0.01mm
    SoftwareIndependent software
    InterfaceEthernet port
    Buffer memoryfast transmission for multi-page large file at one time
    Control paneltouch screen
    Driving systemIntelligent digital control servo system
    Voltage/PowerAC220±V10%,50/60HZ
    Command modeHP-GL/GP-GL

    Producing And Packing





    Certificates


    FAQ



    1. What are your main products?
    We Ecoographix are a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom, and post-press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top-quality Chinese printing products to meet diversified printing requirements.

    2. Where is your factory?
    Our sales office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou, and Nanyang.

    3. What is your warranty?
    Normally 1 year.

    4. Can you also supply the software?
    Yes

    5. What about the Installation and after-sales technician support?
    Our engineer can help with the installation and provide the necessary training. The buyer should take the round airplane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
