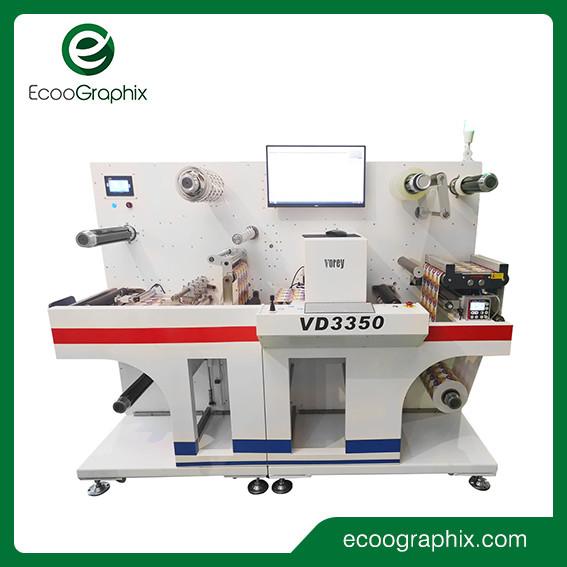

EcooGraphix High Speed Digital Label Die Cutter Cutting Machine
Model: EcooSetter VD3350
VD3350 is all-in-one digital label finisher equipped with cutting,
laminating, slitting, sheeting, matrix removal.
The maximum cutting speed 9M /min (10cm x 10cm square) and
automatic job changing by serial number.
Most of operations are done automatically like cutting heads
selection, which cutting head to use, etc.
You can see the estimated time to finish each cutting job in
cutting software.It has CCD camera system for fine cutting
accuracy.
Advantage:
1. Fast and high precision with full-servo motor
2. Fully automatic tension and feeding control
3. Intelligent position, choose file automatically
4. Standard 4 cutting heads distance can be adjusted automatically
5. Support 3 units cutting simultaneously
6. Intelligent cutting with trajectory optimization
Specifications:
| Model | Ecoo-VD3350 |
| Max. media roller | diameter 450mm |
| Cutting media width | 40-350mm |
| Max.label width | 330mm |
| Min.label length | 10mm |
| Max.label length | 600mm |
| Cutting speed | Max.9m per minute
(depend on label shape and size) |
| Cutting blades | (standard) 4 pcs |
| Slitting blades | (standard 4 pcs ) max.15pcs |
| Cutting tracking | CCD camera |
| Die-cutting technology | with tungsten steel rotary blades |
| Cutting precision | 0.1mm (duplicate) |
| Slitting speed | Max. 100m per minute |
| Slitting width | 10-330mm |
| Slitting precision | 0.1mm |
| Machine size (W*D*H) | 2100*1195*1575CM |
| Machine weight | 1200kg |
| Power | 110-127VAC 50-60HZ, 1000WATTS/220-240VAC
50-60HZ, 1000WATTS |
| Warranty | 1year (besides high consumable parts) |
| Options | Cutting head/Slitting unit/Film back liner removal/
Sheet paper cutter |

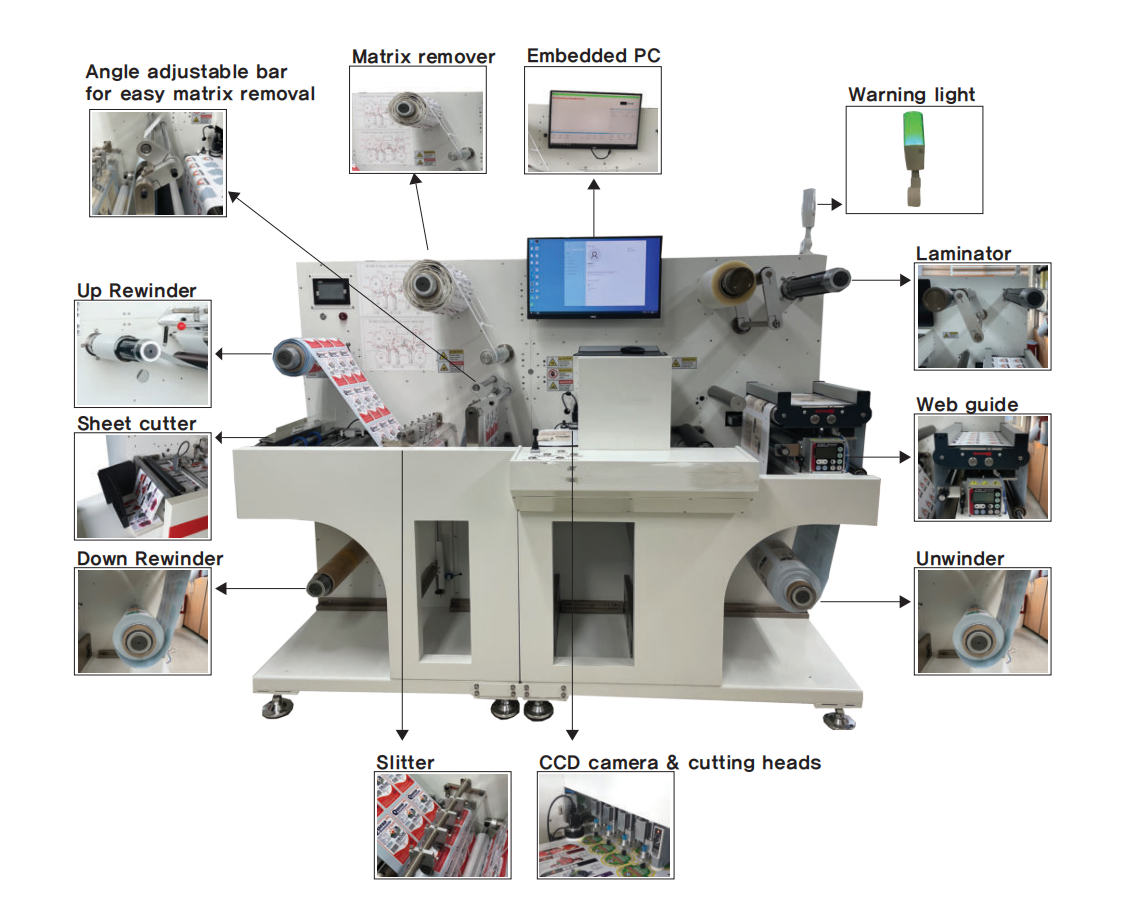

Machine Spare Parts:
1. High precision feeding system:
Utilize the ultrasonic web-guide system, it makes sure the feeding
perfectly.
2. Cold laminating:
It has cold laminating function, your label will be bright and
perfect. The back liner removal is optional.
3. Digital die-cutting system:
VD3350 Digital label die-cutter utilizes high precision screw
transmission system. Max soeed can be 9m per minute. Individual
control for the 4 heads, combining with the function of auto adjust
the heads distance, to make the every single head on or off.
4. CCD identify system:
With the CCD camera position and identify system, to recognize the
sequence, to reach the function of changing file and cutting next
graphics automatically.
5. Precision slitting system:
Utilize rotary slitting mode, can install max.15 blades, high speed
with 60m per minute, instead of traditional slitting equipment
completely.
6. The waste removing system:
The precision machinery design can control the roller rotating
uniformly, avoid removing waste discontinuously due to unstable
pressure, keep finishing labels clean.
7. Sheet Cutter:
The optional built-in Pc350 Sheet Cutter, can be inline with the
main Die-cutting, to perform the synchronous die-cutting and sheet
cutting.
FAQ:
1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and
consumables. We cover both digital printing and offset printing,
including prepress, pressroom and post press, focusing on packaging
printing and book printing.
We have hundreds of users all over the world. We bring forward top
quality of Chinese printing products to meet diversified printing
requirements.
2. What is your warranty?
One year for machine.
3. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the
necessary training. The buyer should take the round air plane
tickets and service charge and the local accommodation cost. Any
problems or questions, we will be at your disposal 7x24 hours.
