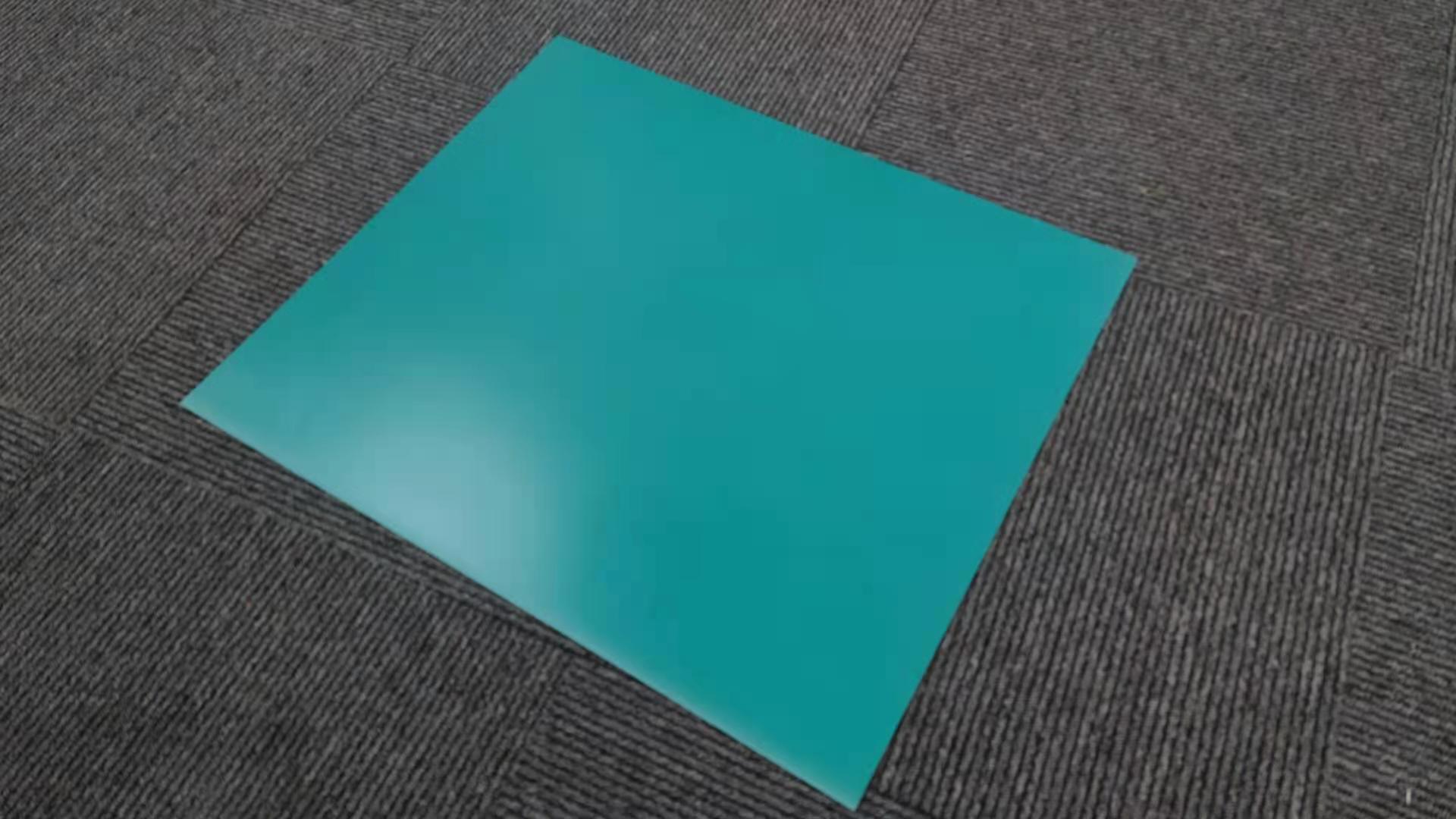

    Offset Conventional Aluminum Printing PS Plate High Sensitive Ecoographix

    Ask Lasest Price
    Brand Name : EcooGraphix
    Model Number : ECOO-PS
    Certification : CE, ISO900
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 2000, 000 Sqm Per Year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Offset Conventional Aluminum Printing PS Plate High Sensitive Ecoographix


    ECOO-PS Long run PS Plate, photographic plate, high sensitive offset plate



    Product Description



    Application:

    EcooGraphix PS Plate or conventional analog plate can be used for offset/lithographic commercial and newspaper printing.
    Unique production technology and high quality materials make the plate gain high photosensitive speed, good half-tone dot reproduction and stable performance.



    Characteristic:


    -Uniform surface coating and high photosensitive speed -High resolution and higher press run
    -Precise half-tone dot reproduction -Faster Exposure and good stability


    Specification



    General Information
    Plate ModelECOO-PS
    Plate TypePositive PS Plate/ Conventional Analog Plate
    ApplicationCommercial and newspaper printing
    SubstrateElectro chemically Grained and Anodized lithographic Aluminum
    Aluminum alloyStandard 1050 Alloy
    CoatingGreen
    Gauge0.15,0.20, 0.25,0.30, 0.40 (mm)
    Maximum short grain widthMaximum width 1280 mm
    Length of Press RunsUnbaked: 50000 to 80,000 impressions Baked: Over 100000 impressions
    Exposing
    Power of light3000 - 5000 W
    Exposure energy80 - 180 mJ/cm
    Resolution2 - 98% LPI 200
    Photosensitive wave length320 - 405nm
    Developing
    ProcessorAll the kind Brands or Manual
    DeveloperAny Positive plate developer or our own developer
    Processing temperature20 - 25°C
    Developing time20 - 30 sec
    Storage and handling
    SafelightHandle under yellow safelight (UV free)
    Shelf Life12 months under recommended storage conditions
    PackagingAvailable in all standard formats, including bulk packaging options such as APL packaging
    Storage and handlingStored in a cool and dry environment, away from excessive cold, heat and humidity

    Workflow




    Producing and Packing





    More details





    FAQ



    Q1: Can I get the sample?
    A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

    Q2: What is the cost for the CTP plate sample freight?
    A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

    Q3: How long can the sample be ready?
    A: It usually takes about 3days to prepare the sample.

    Q4: Can I visit your factory?
    A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

    Q5: How many Square Meters CTP plates can feed one 20' container?
    A: About 20000-25000SQM

    Q6: Can I take my own brand and label on the packing?
    A: Yes, we can provide the OEM with the customer's brand and label.
