    Environmental Friendly Thermal CTP Plate Negative Processless Chemical Free

    Ask Lasest Price
    Brand Name : EcooGraphix
    Model Number : ECOO-G
    Certification : ISO9000, CE
    Price : Negotiable
    Payment Terms : T/T, , Western Union
    Supply Ability : 2000, 000sqm/Year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Environmental Friendly Thermal CTP Plate Negative Processless Chemical Free

    Environmental Friendly Thermal CTP Plate Negative Processless Chemical Free


    Ecoo-G

    EcooGraphix Ecoo-G is a new, environmentally friendly, Development On Press CTP plate.

    It can be run directly on a printing press after imaging, without a need for chemical processing.


    Product parameters


    Thickness: 0.15mm / 0.30mm


    Spectrum scope: 800-850nm


    Type: thermal negative processless plate


    Low-energy imaging: 130~150mJ/cm²


    Suitable for: high grade commercial and newspaper printing


    Platesetter: Various dominant thermal platesetters in the market


    Run Length: 100,000 impressions,actual run length depends on printing conditions


    Specification


    ModelECOO-G
    Plate TypeNon-ablation thermal-negative type
    ApplicationHigh grade commercial and newspaper printing
    SubstrateElectrolyte graining and Anodized AL substrate
    Thickness0.15mm / 0.30mm
    Spectrum scope800-850nm
    PlatesetterVarious dominant thermal platesetters in the market
    Low-energy imaging130-150 mj/ m²
    The period of latent image stabilization≤7 days
    Recommended screen method1-99% @200 LPI AM or 20μm FM or mixture
    The paper number of start-up<50 sheets
    Safety light4 hours under yellow light; 1 hour under fluorescent lamp; Direct exposure under natural light is safe but not recommended.
    ProcessingWithout processing, directly on press
    Run Length100,000 impressions, actual run length depends on printing conditions
    BakingNo recommended
    Maximum short grain widthMaximum width 1280 mm
    Photosensitive wave length830 nm
    Coating colorGrey
    Shelf life12 months under recommended condition
    TransportationPacked in seal and stored by means of prevention from light, moisture, overheat and high humidity
    StorageRecommended condition: 18ºC-24ºC, 40%-50% RH.


    Comparing With The Plate Of Kodak Sonora XP

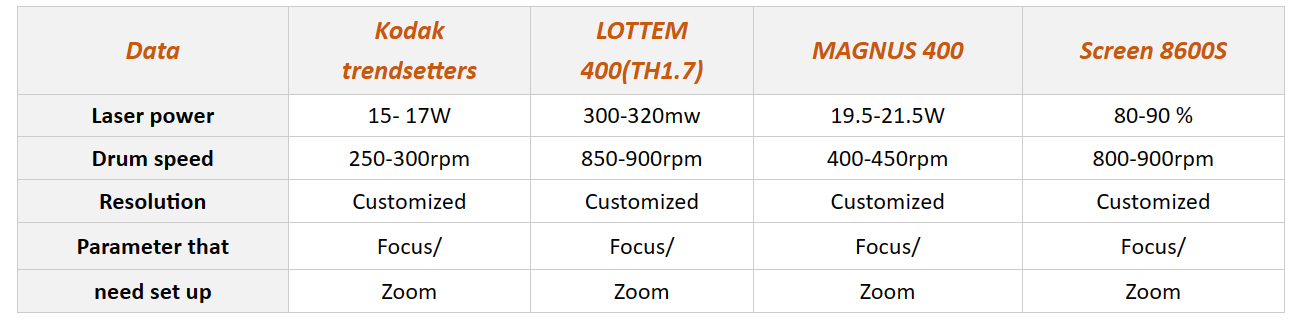

    Applied parameters In Imaging Device



    Advantage



    - Capable of bright room operation.
    - High resolution and precise half tone dot reproduction.
    - High development tolerance level and convenient operation.
    - High quality aluminum, composite grain and high press runs.

    Packing and Producing





    Workflow




    FAQ



    Q1: Can I get the sample?
    A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

    Q2: What is the cost for the CTP plate sample freight?
    A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

    Q3: How long can the sample be ready?
    A: It usually takes about 3days to prepare the sample.

    Q4: Can I visit your factory?
    A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

    Q5: How many Square Meters CTP plates can feed one 20' container?
    A: About 20000-25000SQM

    Q6: Can I take my own brand and label on the packing?
    A: Yes, we can provide the OEM with the customer's brand and label.
