    Aluminum Double Layered Positive Thermal CTP Plate For Long Runs Offset Printing

    Ask Lasest Price
    Brand Name : ECOOGRAPHIX
    Model Number : ECOO-ED
    Certification : ISO, CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 2000,000 sqm per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

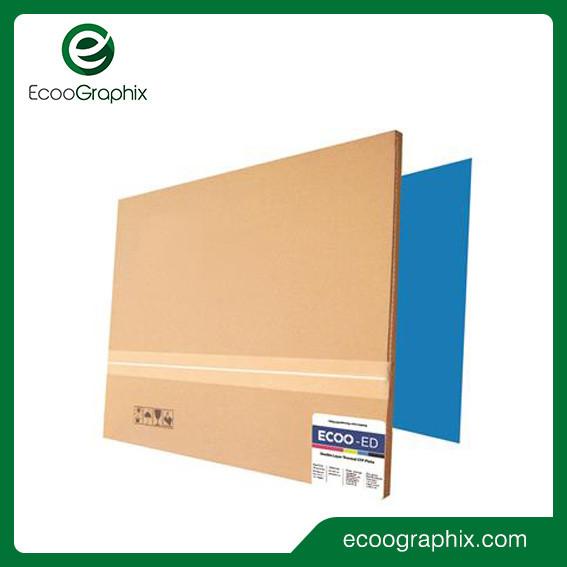

    Aluminum Double Layered Positive Thermal CTP Plate For Long Runs Offset Printing


    Product Description



    Thermal Double Layer Offset CTP Plate

    Durable Double Layer Offset Thermal Positive Printing CTP Plate
    Model: ECOO-ED
    EcooGraphix Double Layer Therrmal CTP Plate can be used for long runs high grade commercial and newspaper printing. It can also be used for the UV ink printing with good performance.

    Advantages
    - Long run length with non-ablative coating - Resist UV-ink; workable with both normal ink and UV ink
    - Mature product, good stability and wide processing latitude
    - Being adaptive to most of platesetters, processors and solutions.


    Features


    -Positive writing thermal plate -Double layers system -Made with high grade aluminum from Europe
    -Wide adaptability for different plate setter brands -Non-ablative coating
    -Run lengths up to 100,000 impressions -UV Ink up to 50,000 impressions -Ability to print both AM and FM screening
    Specification


    General Information
    Plate ModelECOO-ED
    Plate TypeThermal UV-CTP Plate(Double Layer)
    ApplicationHigh grade commercial and newspaper printing
    SubstrateElectro chemically Grained and Anodized lithographic Aluminum
    Aluminum alloyStandard 1050 Alloy
    CoatingTwo-layer system, IR sensitive, positive acting
    Gauge0.15, 0.20, 0.25, 0.30, 0.40 (mm)
    Maximum short grain widthMaximum width 1280 mm
    Plate intermixKodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword
    Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates,
    Kodak PP3 positive plates, Agfa Energy Elite, etc.
    Length of RunOrdinary Ink: 100,000 to 200,000 impressions
    UV Ink: 50,000 to 100,000 impressions
    Exposing
    CTP Plate Making Machine Plate settersKodak: Trendsetter/Lotem/Magnus; Fuji: Javelin T9000HS
    Heidelberg: Top setter/Supra setter; Luscher: Xpose Plate setter
    Screen: PT-R, Creo: Scitex
    EcooGraphix Thermal CTP Tseries
    Exposure energy110 - 130 mj/cm²
    Spectral Sensitivity800-850 nm - Peaks 830nm
    Resolution1-99% at 200 LPI
    FM capability20 micron stochastic
    Image colorBlue Green to Pale Green
    Developing
    ProcessorAll the kind Brands
    DeveloperKodak Gold Star or our own developer
    Processing temperature23°C +/- 2°C
    Developing time25 - 30 sec
    Processing Speed0.80 - 1.20 m/min
    Storage and handling
    SafelightDaylight handling
    Shelf Life12 months under recommended storage conditions
    PackagingAvailable in all standard formats, including bulk packaging options
    such as APL packaging
    Storage and handlingStored in a cool and dry environment, away from excessive cold,
    heat and humidity.

    Workflow




    Producing and Packing






    More details





    FAQ


    Q1: Can I get a sample?
    A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can ber returned to you in your first order.

    Q2: What is the cost for the CTP plate sample freight?
    A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

    Q3: How long can the sample be ready?
    A: It usually takes about 3days to prepare the sample.

    Q4: Can I visit your factory?
    A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

    Q5: How many Square Meters CTP plates can feed one 20' container?
    A: About 20000-25000SQM

    Q6: Can I take my own brand and label on the packing?
    A: Yes, we can provide the OEM with the customer's brand and label.
