Double Layer Non-Ablative Coating Positive Thermal CTP Offset
Printing Plate
Application
EcooGraphix Double Layer Therrmal CTP Plate can be used for long
runs high grade commercial and newspaper printing. It can also be
used for the UV ink printing with good performance.
Characteristic
Features
- Positive writing thermal plate
- Double layers system
- Made with high grade aluminum from Europe
- Wide adaptability for different plate setter brands
- Non-ablative coating
- Run lengths up to 100,000 impressions
- UV Ink up to 50,000 impressions
- Ability to print both AM and FM screening
Advantages
- Resist UV-ink; workable with both normal ink and UV ink
- Mature product, good stability and wide processing latitude
- Long run length with non-ablative coating
- Being adaptive to most of platesetters, processors and solutions
Specification
| General Information |
| Model | ECOO-ED |
| Plate Type | Positive Thermal CTP Plate |
| Application | High grade commercial and newspaper printing |
| Substrate | Electro chemically Grained and Anodized lithographic Aluminum |
Aluminum alloy | Standard 1050 Alloy |
Coating | Two-layer system, IR sensitive, positive acting |
| Gauage | 0.15, 0.20, 0.25, 0.30, 0.40(mm) |
| Maximum short grain width | Maximum width 1280 mm |
Plate intermix | Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc. |
| Length of Run | Ordinary Ink: 100,000 to 200,000 impressions UV Ink : 50,000 to 100,000 impressions |
| Exposing |
| Plate setters | Kodak: Trendsetter/Lotem/Magnus; Fuji : Javelin T9000HS Heidelberg : Top setter/Supra setter; Luscher : Xpose Plate setter Screen : PT-R,Creo : Scitex EcooGraphix Thermal CTP Tseries |
| Exposure energy | 110 - 130 mJ/cm² |
| Spectral Sensitivity | 800 - 850 nm - Peaks 830nm |
| Resolution | 1-99% @ 200LPI |
FM capability | 20 micron stochastic |
Image color | Blue Green to Pale Green |
| Developing |
| Processor | All the kind Brands. |
| Developer | Kodak Gold Star or our own developer |
| Processing temperature | 23ºC+/-2ºC |
Developing time | 25 - 30 sec |
| Processing Speed | 0.80 - 1.20 m/min |
| Storage and handing |
Safe Light | Daylight handling |
Shelf Life | 12 months under recommended storage conditions |
| Packaging | Available in all standard formats, including bulk packaging options
such as APL packaging |
| Storage and handing | Stored in a cool and dry environment, away from excessive cold,
heat and humidity |

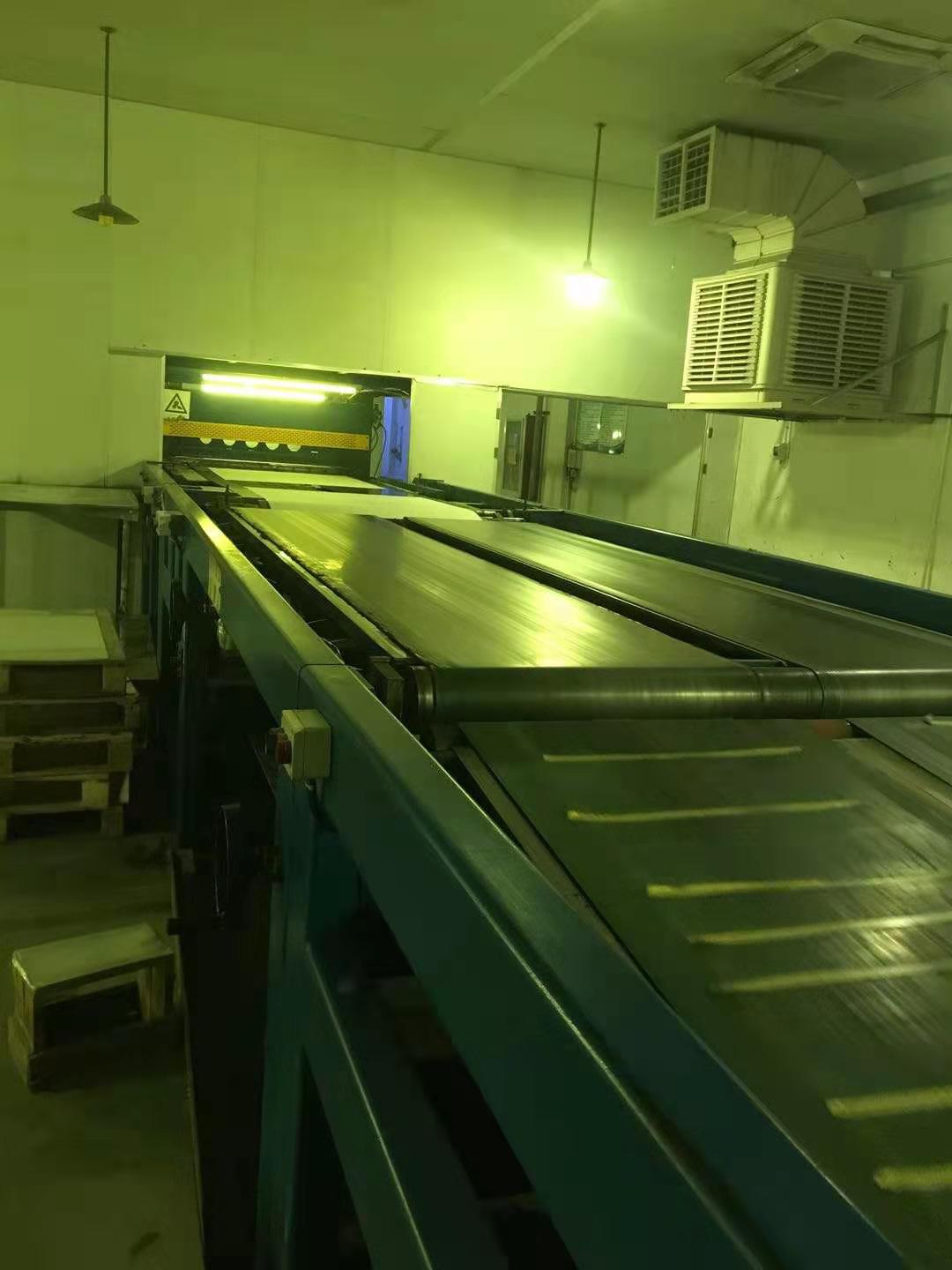

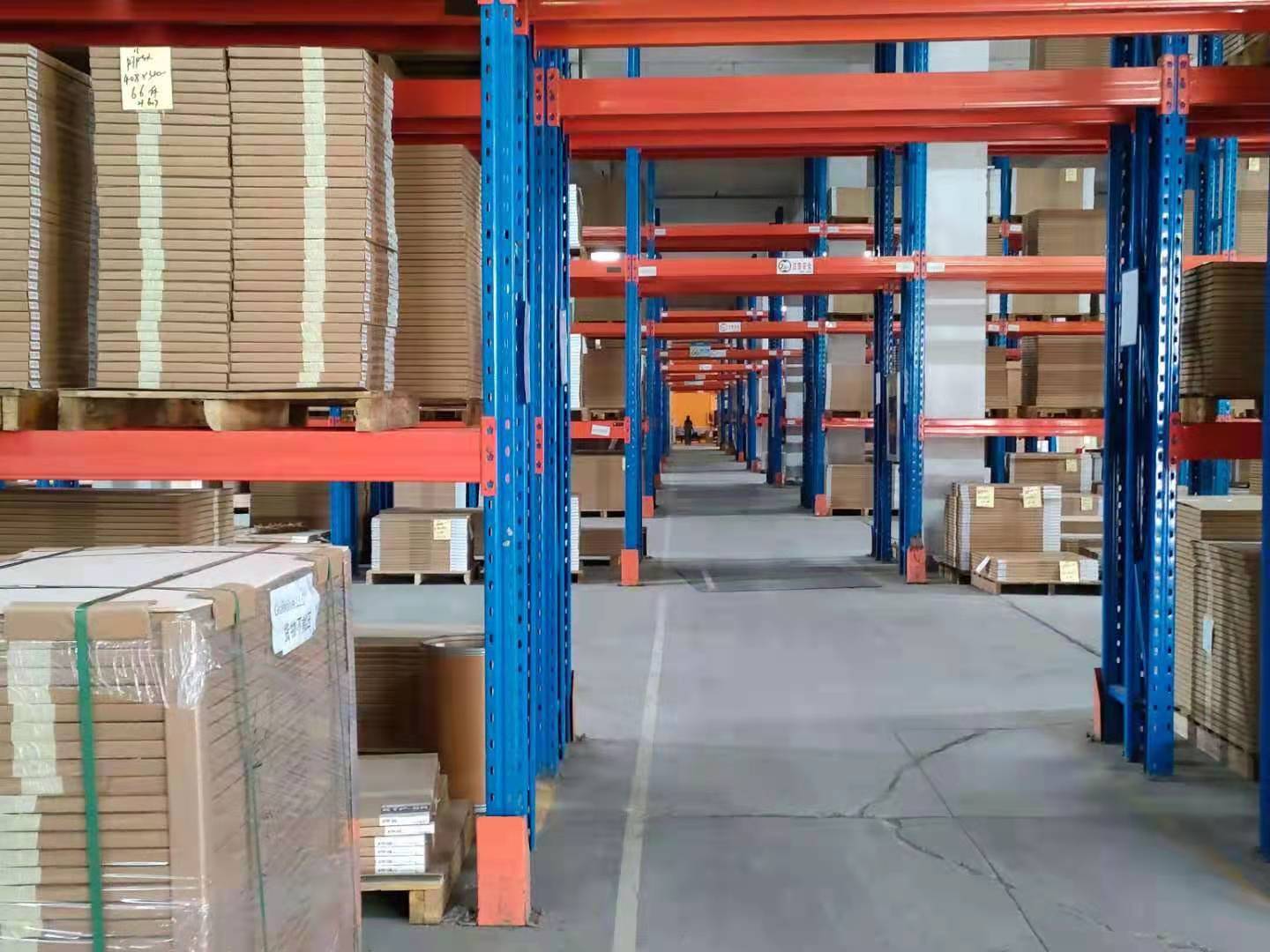

Producing And Packaging
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
FAQ
Q1: Can I get a sample?A: We are very glad to provide some sample for you to test. We
usually provide 5-15pieces plates for free,but sincerely hope to
get your kind support for the air courier freight. This can be returned to you in your first order.Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the
delivery destination. Or you can arrange the Pick-up service from
your local agent.
Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.
Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in
Hangzhou city,which is about 1.5 hour by train from Shanghai.
Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM
Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
