Four Color Offset Printing Machine With CC-LINK Technological Bus Module
Instructions
Four Color Offset Printing Machine is equipped with CC-LINK technological bus module from Mitsubishi.
Double-diameter impression cylinder and transfer drum can reduce
the times of sheet take-over between print units. The plate
cylinder can be adjusted in the circumferential direction, lateral
direction and diagonal direction.
Specifications
A2 Offset Printing Machine
Model ECOO JY 644; ECOO JY 744
Max. Sheet Size(mm) 660X480mm; 740X540mm
Min. Sheet Size(mm) 273X393mm; 273X393mm
Paper Thickness 0.06-0.6mm; 0.06-0.6mm
Max. Image Area 650x468mm; 730X528mm
Plate Size 675x560mm; 755x677mm
Blanket Size 740x680x1.9mm; 740x760x1.9mm
Max. Feeder Pile Height 940mm; 940mm
Max. Delivery Pile Height 780mm; 780mm
Motor Power 23kw; 23kw
Machine Size 7380×2470×1950mm; 7380×2550×1950mm
Weight 18700kg; 19700kg
| A2 Offset Printing Machine |
| Model | ECOO JY 644 | ECOO JY 744 |
| Max. Sheet Size(mm) | 660x480mm | 740x540mm |
| Min. Sheet Size(mm) | 273x393mm | 273x393mm |
| Paper Thickness | 0.06-0.6mm | 0.06-0.6mm |
| Max. Image Area | 650x468mm | 730x528mm |
| Plate Size | 675x560mm | 755x677mm |
| Blanket Size | 740x680x1.9mm | 740x760x1.9mm |
| Max. Feeder Pile Height | 940mm | 940mm |
| Max. Delivery Pile Height | 780mm | 780mm |
| Motor Power | 23kw | 23kw |
| Machine Size | 7380x2470x1950mm | 7380x2550x1950mm |
| Weight | 18700kg | 19700kg |
Configurations
Double diameter impression and paper transfer cylinder
Semi-automatic plate loading(unloading and loading of four plates
for 2 minutes and 40 seconds)
Computer automatic pressure regulation(paper pressure preset)
Computer ink control
CIP3 interface
Radial axial oblique electric plate drawing
Parallel double cylinder pneumatic clutch pressure
Vacuum suction paper conveyor ultrasonic double sheet detection
Ink outlet roller motor direct drive
Electronic powder spraying
Industrial bus(CC-Link) electrical system
High-precision photoelectric punching machine
Stainless steel thermal spraying treatment on the surface of
impression and plate cylinder
English version of operation procedure and interface
Export-oriented packaging
Details

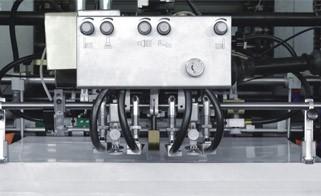

Feeder: - Conjugated cam. Forwarding mechanism controlled by linear guide rail makes machine speed faster and more
stable. - Rotary valve with patent can clean paper dust automatically and
reduce the fault. | Printing Units: - Both of frame and base are integral casting. - High frequency quenching of gears guarantee transmission accuracy. - Helical gears, high overlap coefficient and low noise. |
Cylinders: - The surface on the impression cylinders and plate cylinders are sprayed stainless steel so as to prolong press life better. - Dynamic balance design can reduce vibration during printing. | Console: - The press memory or job memory card(disk) can save the current job. Changes and settings made to the current job are transferred to the press. While in printing mode, you can enter the presetting values for next job into the press memory or stored to a
disk. - CIP3/CIP4 |
Pneumatic Clamp Bar, Change Plate Without Tools: - Tension of clamp bar is controlled by imported hoses and disc springs, so that it is more flexible for operation. - Corners of cylinders are controlled by high precision encoder. Plates will be installed and dismounted by program automatically. Thus it can meet the long version and short version edition of the printing business needs. - The tail of clamp bar is separated, so that it can help paper more smooth. | Ink Amount Control Console: - Every ink key in every unit can be set by console. - Ink amount can be displayed in digital and can be saved. |
Accurate Grippers: - After checkered high strength steel pads had been quenched, their life will be longer and replacement will be more conveniently. - Wear-resistant soft pads ensure stability of paper handover and precision of paper transmission. - High precision needle roller bearings and opening bearings improve stability of gripper system. | Automatic Device For Adjusting Paper Thickness: - It is equipped with gear driven. Distance between cylinders can be given some feedback to screen by potentiometer automatically. - Permanent magnetic generator driven can ensure stability of printing pressure, because of large torsion and strong self-lock. - It is easier and more convenient to input paper thickness on the screen directly. | Vacuum Suction Feeder Table: - Imported air pump with large volume. - It is suitable for all paper in any types or size automatically, so as to change paper format more quickly and more easily. - Ultrasonic double-sheet detector can protect cylinders better |
