Printing Aluminum Plate High Sensitivity CTCP Double UV Positive
CTP Plate
Introduction
EcooGraphix Positive CTCP Plate(Double Layer) are made for UV based
ink. It is also compatible with an ordinary ink.
It is use for long run length high grade offset commercial and
newspaper printing.
SpecificationModel
ECOO-CTCP-D
Plate Type
No preheat, positive working, UV sensitive plate, double coated, no
need baking for UV ink printing
Application
Newspaper Printing, commercial printing, and package printing
Substrate
Electrochemically Grained and Anodized Aluminum
Gauge
0.15, 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width
Maximum width 1350 mm
Developer
Any positive plate developer or our own developer
Length of Run
200,000 impressions unbaked;
70,000 impressions with UV ink unbaked;
1,000,000 impression baked.
Plate setters Capability
All the main brands violet CTP in market, laser power no less than
30 mw
Aluminum
Standard 1050 Alloy
Exposure energy
50-65uj/ cm²(based on plate setter and developing condition)
Developing time
20±3 sec
Developing Temperature
28±2ºC
Spectral Sensitivity
405 nm
Resolution
1-99% @ 200 LPI & 20 uFM
Shelf life
12 months under recommended storage conditions
Storage and handing
Stored in a cool and dry environment, away from excessive cold,
heat.
Product highlight
High sensitivity; Extend laser life for image setter; Grain
efficiency; Positive CTCP plate
| Model | ECOO-CTCP-D |
| Plate Type | No preheat, positive working, UV sensitive plate, double coated, no
need baking for UV ink printing |
| Application | Newspaper Printing, commercial printing, and package printing |
| Substrate | Electrochemically Grained and Anodized Aluminum |
| Gauge | 0.15, 0.20, 0.25, 0.30, 0.40(mm) |
| Maximum short grain width | Maximum width 1350 mm |
| Developer | Any positive plate developer or our own developer |
| Length of Run | 200,000 impressions unbaked;
70,000 impressions with UV ink unbaked;
1,000,000 impression baked. |
| Plate setters Capability | All the main brands violet CTP in market, laser power no less than
30 mw |
| Aluminum | Standard 1050 Alloy |
| Exposure energy | 50-65uj/ cm²(based on plate setter and developing condition) |
| Developing time | 20±3 sec |
| Developing Temperature | 28±2ºC |
| Spectral Sensitivity | 405 nm |
| Resolution | 1-99% @ 200 LPI & 20 uFM |
| Shelf life | 12 months under recommended storage conditions |
| Storage and handing | Stored in a cool and dry environment, away from excessive cold,
heat. |
| Product highlight | High sensitivity; Extend laser life for image setter; Grain
efficiency; Positive CTCP plate |
Characteristic
- Positive writing CTCP (conventional) plate
- Double layers system
- Made with high grade aluminum from Europe
- Wide adaptability for different plate setter brands
- Non-ablative coating
- Run lengths up to 80,000 impressions
- UV Ink up to 50,000 impressions
- Ability to print both AM and FM screening

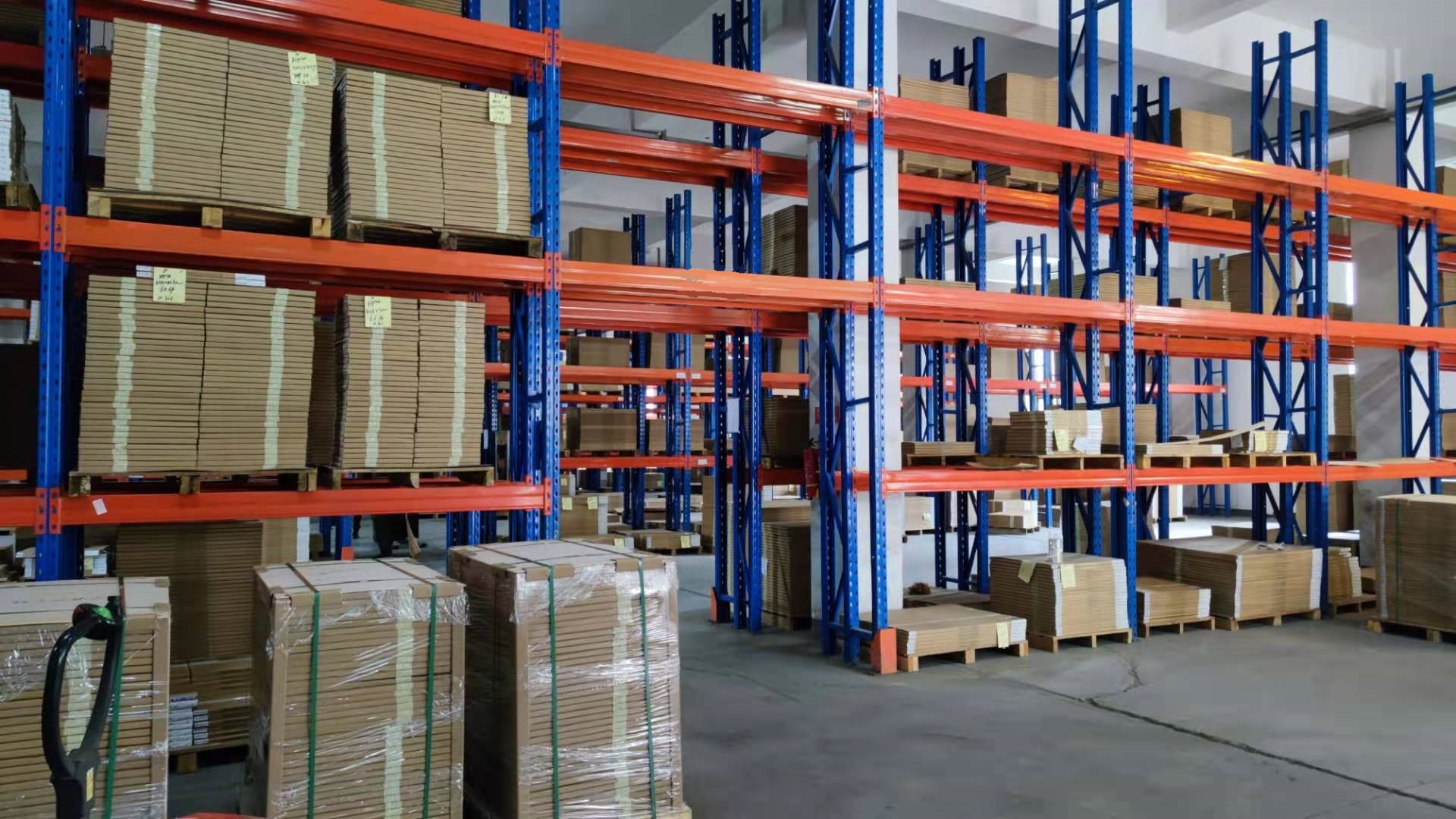

Producing And Packaging
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
Certificates
Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test.
We usually provide 5-15 pieces plates for free, but sincerely hope
to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight ?
A: The Air freight depends on the packing size and weight, and the
delivery destination.
Or you can arrange the Pick-up service from your local agent.
Q3: How long can the sample be ready ?
A: It usually takes about 3days to prepare the sample.
Q4: Can I visit your factory ?
A: You are warmly welcomed to visit our factory! Our company is in
Hangzhou city,
which is about 1.5 hours by train from Shanghai.
Q5: How many Square Meters CTP plates can feed one 20' container ?
A: About 20000-25000SQM.
Q6: Can I take my own brand and label on the packing ?
A: Yes, we can provide the OEM with the customer's brand and label.
