Eco-Friendly Long-Run Violet Offset Printing Plate
Introduction:
EcooGraphix Low-chemical Violet CTP Plate Ecoo-V can be used for
newspaper printing. It is an environmental friendly product.
Compared with normal Violet CTP plate, Ecoo-V keeps original
photosensitive features and printing compatibility.
Specification:
Model
ECOO-V
Plate Type
Low chemistry violet plate, negative printing
Application
Newspaper Printing
Substrate
Electro chemically Grained and Anodized Aluminum
Gauge
0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width
Maximum width 1320 mm
Developer
Developing gum
Length of Run
Unbaked: 200,000 impressions;
Baked: 500,000 impressions(dependent upon image resolution, press,
press chemical, ink and paper conditions)
Plate setters Capability
All the main brands violet CTP in market, laser power no less than
30 mw
Aluminum
Standard 1050 Alloy
Exposure Energy
50-60 μj/ cm² (based on plate setter and developing condition)
Developing Time
20±3 sec
Developing Temperature
28±2 ºC
Spectral Sensitivity
405 nm
Resolution
150lpi (2-98%), under 1800dpi, 25μm line can be produced.
Preheat
95-121 ºC
Brush Speed
100 rpm
Shelf Life
12 months under recommended storage conditions
Storage and Handling
Store plates flat in their packaging, away from excessive cold,
heat or high humidity.
Recommended condition is: temperature 15-28ºC and RH between
30-70%;
Handle with care, the maximum height is 1.2m'
Open the box under yellow light. Sealed the box with remained plate
to avoid moisture.
| Model | ECOO-V |
| Plate Type | Low chemistry violet plate, negative printing |
| Application | Newspaper Printing |
| Substrate | Electro chemically Grained and Anodized Aluminum |
| Gauge | 0.20, 0.25, 0.30, 0.40(mm) |
| Maximum short grain width | Maximum width 1320 mm |
| Developer | Developing gum |
| Length of Run | Unbaked: 200,000 impressions;
Baked: 500,000 impressions(dependent upon image resolution, press,
press chemical, ink and paper conditions) |
| Plate setters Capability | All the main brands violet CTP in market, laser power no less than
30 mw |
| Aluminum | Standard 1050 Alloy |
| Exposure energy | 50-60 μj/ cm²(based on plate setter and developing condition) |
| Developing time | 20±3 sec |
| Developing Temperature | 28±2 ºC |
| Spectral Sensitivity | 405 nm |
| Resolution | 150lpi (2-98%), under 1800dpi, 25μm line can be produced. |
| Preheat | 95-121 ºC |
| Brush Speed | 100 rpm |
| Shelf life | 12 months under recommended storage conditions |
| Storage and handling | Store plates flat in their packaging, away from excessive cold,
heat or high humidity.
Recommended condition is: temperature 15-28ºC and RH between
30-70%;
Handle with care, the maximum height is 1.2m'
Open the box under yellow light. Sealed the box with remained plate
to avoid moisture. |
Features:
1. Eco-Friendly: applied with low PH finisher during washout
treatment, reducing chemical consumption and liquid waste
2. Stable Developing Performance: compatible with most brands of violet plate developer and less sensitive to PH value of finisher
3. Lower Investment and Maintenance Cost: can work with simplied
processor, which removes prewash, post-rinse and gumming steps from
conventional processor
4. Higher Run Length: outside protective layer protects sensitive
layer from damage, making more impressions per plate.
Plate Making:

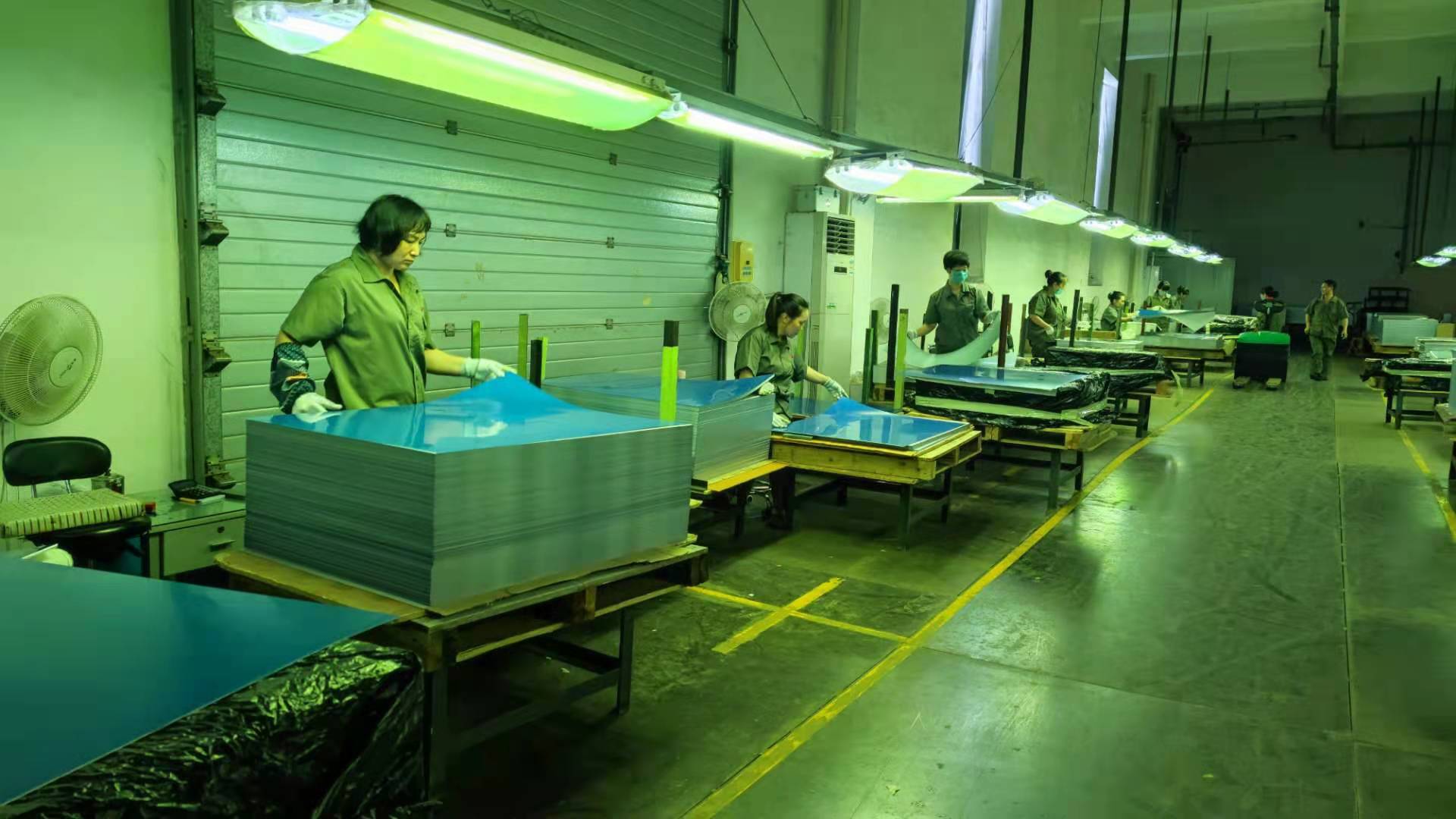

Producing And Packaging:
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
Certificates:
FAQ:
Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We
usually provide 5-15pieces plates for free,but sincerely hope to
get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight ?
A: The Air freight depends on the packing size and weight, and the
delivery destination. Or you can arrange the Pick-up service from
your local agent.
Q3: How long can the sample be ready ?
A: It usually takes about 3days to prepare the sample.
Q4: Can I visit your factory ?
A: You are warmly welcomed to visit our factory! Our company is in
Hangzhou city, which is about 1.5 hours by train from Shanghai.
Q5: How many Square Meters CTP plates can feed one 20' container ?
A: About 20000-25000SQM.
Q6: Can I take my own brand and label on the packing ?
A: Yes, we can provide the OEM with the customer's brand and label.
