Automatic Paper Jogging Machine With Continuous Feeding

    Buy cheap Automatic Paper Jogging Machine With Continuous Feeding from wholesalers

    Buy cheap Automatic Paper Jogging Machine With Continuous Feeding from wholesalers
    • Buy cheap Automatic Paper Jogging Machine With Continuous Feeding from wholesalers

    Automatic Paper Jogging Machine With Continuous Feeding

    Ask Lasest Price
    Brand Name : EcooGraphix
    Model Number : ECOO JP-2
    Certification : ISO9000, CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500 Sets/Year
    Delivery Time : 45 Days
    • Product Details
    • Company Profile

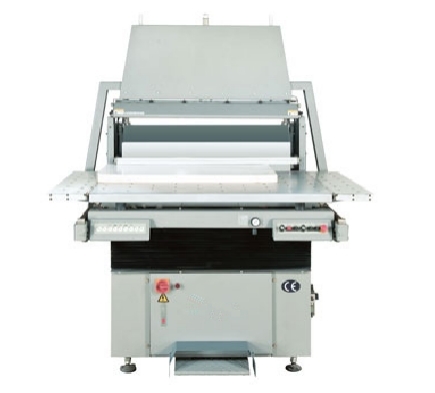

    Automatic Paper Jogging Machine With Continuous Feeding


    Automatic Paper Jogging Machine With Continuous Feeding

    Model: ECOO JP-2





    1} Details

    ★. The precise alignment of the cutting reams improves the quality considerably.

    ☆. Enables quality control.

    ★. Increases the efficiency of the cutting machine by up to 40% because cutting can be continued while new material is prepared.

    ☆. Blocks can be formed more easily from the layers owing to mechanized removal of air.

    ★. Four automatic table inclination angles on the right/left side just need one touch.





    2} Specification


    ECOO Paper Loader

    Model
    ECOO JP-2

    Table Length [mm/in](Y)
    1150/45.28


    Table Width [mm/in](X)
    900/35.43

    Width Of Machine [mm/in](B)
    1550/61.02


    Length Of Machine [mm/in](A)
    1290/50.79

    Height Of Machine [mm/in]
    1875/73.82


    Weight Of Machine [kg]
    600

    Ream Height Min. [mm/in]
    30/1.18


    Ream Height Max. [mm/in]
    165/6.5

    Table Height Min. [mm/in]
    860/33.86


    Table Height Max. [mm/in]
    950/37.40

    ECOO Paper Loader
    ModelECOO JP-2
    Table Length [mm/in](Y)1150/45.28
    Table Width [mm/in](X)900/35.43
    Width Of Machine [mm/in](B)1550/61.02
    Length Of Machine [mm/in](A)1290/50.79
    Height Of Machine [mm/in]1875/73.82
    Weight Of Machine [kg]600
    Ream Height Min. [mm/in]30/1.18
    Ream Height Max. [mm/in]165/6.5
    Table Height Min. [mm/in]860/33.86
    Table Height Max. [mm/in]950/37.40
    Automatic Paper Jogging Machine With Continuous FeedingAutomatic Paper Jogging Machine With Continuous FeedingAutomatic Paper Jogging Machine With Continuous FeedingAutomatic Paper Jogging Machine With Continuous Feeding




    3} Die Cutting Line


    1) Paper Loader
    2) Paper Jogger

    3) Paper Unloader




    4} Certificates








    5} FAQ



    Q1: What are your main products ?

    A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.

    You can get the equipment and consumables all in one and no worry about the after-sales service from our company.






    Q2: Where is your factory ?

    A: Our CTP processor machine factory is in Shanghai, you are warmly welcome to visit our factory!






    Q3: What is your warranty for the CTPs ?

    A: Three years' laser head and main spare parts for the CTPs, one year for the processor. If the customer use EcooGraphix CTP plate with the CTP machine, we will provide the Lifetime Warranty.






    Q4: Can you also supply the Workflow and RIP ?

    A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.






    Q5: What about the installation and after-sales technician support ?

    A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.

    These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
