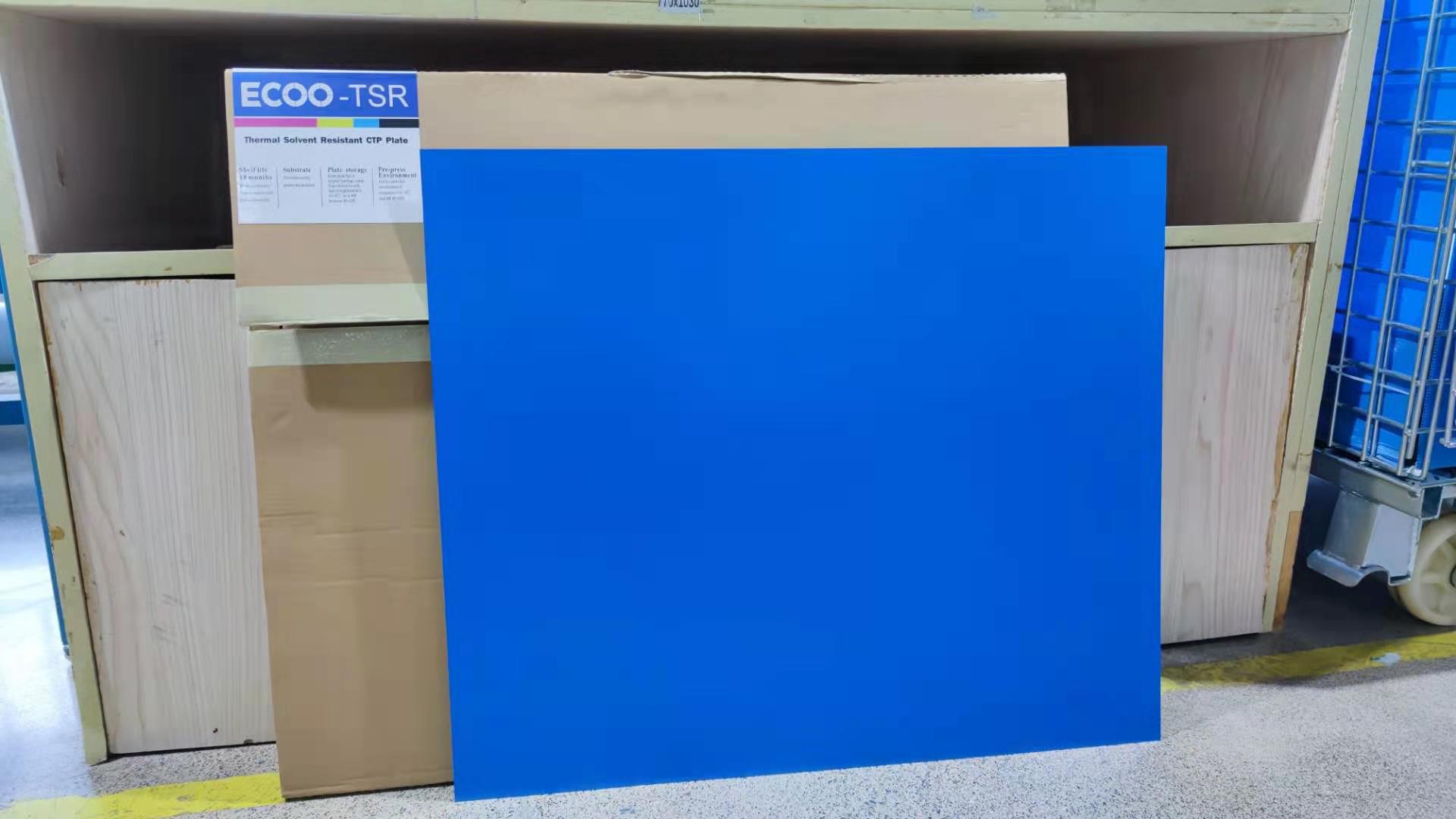

Positive Thermal Digital Plate Double Layer CTP Plate For Packaging
Print
Application
EcooGraphix Thermal Solvent Resistance CTP plate can be used for
long runs high grade commercial and newspaper printing. It can also
be used for the UV ink printing with perfect performance.
Specification
Model
ECOO-TSR
Plate Type
Positive Thermal Digital Plate
Application
Commercial, newspaper and packaging print
Substrate
Electro chemically Grained and Anodized lithographic Aluminum
Gauge
0.15, 0.20, 0.24, 0.30, 0.40(mm)
Maximum short grain width
Maximum width 1280 mm
Coating
Blue
Length of Run
Unbaked: 400,000 impressions
UV Ink: 100,000 impressions
Plate setters
All thermal CTP machine
Aluminum
Standard 1050 Alloy
Exposure energy
120 - 150 mj/ cm²
Developing time
25-30 sec
Spectral Sensitivity
780 - 850 nm
Resolution
1-99% @ 400LPI
Developer
Ecoo DV-T Series Developer
Processing temperature
23ºC+/-2ºC
Processing Speed
0.80 - 1.20 m/min
Safelight
Daylight handling
Shelf life
12 months under recommended storage conditions
Packaging
Available in all standard formats, including bulk packaging options
such as APL packaging
Storage and handling
Stored in a cool and dry environment, away from excessive cold,
heat and humidity
| Model | ECOO-TSR |
| Plate Type | Positive Thermal Digital Plate |
| Application | Commercial, newspaper and packaging print |
| Substrate | Electro chemically Grained and Anodized lithographic Aluminum |
| Gauge | 0.15, 0.20, 0.24, 0.30, 0.40(mm) |
| Maximum short grain width | Maximum width 1280 mm |
| Coating | Blue |
| Length of Run | Unbaked: 400,000 impressions
UV Ink: 100,000 impressions |
| Plate setters | All thermal CTP machine |
| Aluminum | Standard 1050 Alloy |
| Exposure energy | 120 - 150 mj/ cm² |
| Developing time | 25-30 sec |
| Spectral Sensitivity | 780 - 850 nm |
| Resolution | 1-99% @ 400LPI |
| Developer | Ecoo DV-T Series Developer |
| Processing temperature | 23ºC+/-2ºC |
| Processing Speed | 0.80 - 1.20 m/min |
| Safelight | Daylight handling |
| Shelf life | 12 months under recommended storage conditions |
| Packaging | Available in all standard formats, including bulk packaging options
such as APL packaging |
| Storage and handing | Stored in a cool and dry environment, away from excessive cold,
heat and humidity |
Characteristic
Features
- Positive writing thermal plate
- Double layers system
- Made with high grade aluminum base
- Wide adaptability for different plate setter brands
- Non-ablative coating
- Run lengths up to 150,000 impressions
- UV Ink up to 80,000 impressions
- Ability to print both AM and FM screening
Benefits
- Extensive adaptability, saving from waste during possible swift
of consumables' supplying
- Quick turn around time on press
- Compatible with common developers
- Premium quality of dot reproduction and super long run length
Producing And Packaging
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
Certificates
FAQ
Q1: Can I get a sample?
A: We are very glad to provide some sample for you to test. We
usually provide 5-15pieces plates for free,but sincerely hope to
get your kind support for the air courier freight. This cost can ber returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the
delivery destination. Or you can arrange the Pick-up service from
your local agent.
Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.
Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in
Hangzhou city,which is about 1.5 hour by train from Shanghai.
Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM
Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
