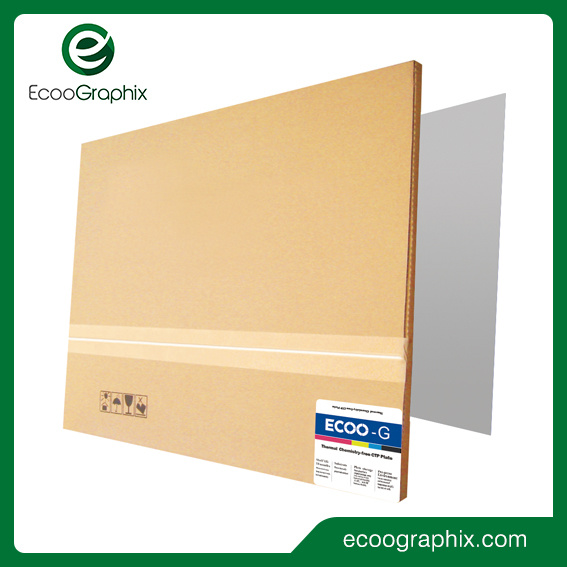

High Sensitivity Offset Printing Positive Thermal CTP Plate
ECOO-G plate can be run on press machine directly after CTP
exposing, no need chemistry processing.
ECOO-G thermal plate is a new environmental-friendly processless
printing plate, as same as Sonora XP.
Product Description
1. Introduction Of ECOO-G
ECOO-G is well sold in Europe, USA, Canada. It is like Kodak Sonora and Agfa Azura
It meets the trend of being environment-friendly and has bright
future.
This plate can be applied on printing machine directly without
processing and developing.
So it saves cost of labor, water treatment and developer tank. Hope
you like it!
2. Characteristic Of ECOO-G
High-quality aluminum substrate and unique-grain processing
technology.
The substrate grain is uniform fine, which ensures the exact dot
reproduction and excellent printing adaptability of the printing
plate.
The professional formula design with infrared laser sensitive
phase-change layer ensures that the plate can be put on press
directly after exposure.
3. Recommendes Application To Press Procedures Of ECOO-G
-Clean all the inks on the blanket;
-Start the press machine, apply the water roller, run 30-40
seconds;
-Apply the ink rollers 20-30 seconds;
-Apply the paper and start print.
Specification
| Plate Technical Specification |
| Model | ECOO-G |
| Plate Type | Non-ablation thermal-negative type |
| Application | High grade commercial and newspaper printing |
| Substrate | Electrolyte graining and Anodized AL substrate |
| Thickness | 0.30mm |
| Spectrum scope | 800-850nm |
| Platesetter | Various dominant thermal platesetters in the market |
| Low-energy imaging | 130-150 mj/ m² |
| The period of latent image stabilization | ≤7 days |
| Recommended screen method | 1-99% @200 LPI AM or 20μm FM or mixture |
| The paper number of start-up | <50 sheets |
| Safety light | 4 hours under yellow light; 1 hour under fluorescent lamp; Direct exposure under natural light is safe but not recommended. |
| Processing | Without processing, directly on press |
| Run Length | 100,000 impressions, actual run length depends on printing
conditions |
| Baking | No recommended |
| Maximum short grain width | Maximum width 1280 mm |
| Photosensitive wave length | 830 nm |
| Coating color | Grey |
| Shelf life | 12 months under recommended condition |
| Transportation | Packed in seal and stored by means of prevention |
| from light, moisture, overheat and high humidity |
| Storage | Recommended condition: 18ºC-24ºC, 40%-50% RH. |
Comparing With The Plate Of Kodak Sonora XP
| Features | ECOO-G | Kodak
Sonora XP |
| Sensitive wavelength(nm) | 800-850 | 800-850 |
| Coating color | Light green | Light green |
| Sensitivity (mj/cm2 ) | 150 | 150 |
| Exposure in safe light | White light 1 hour; yellow light 24 hours | White light 1 hour; yellow light 24 hours |
| After image contrast | Can be spotted by eyes, but
auto punching machine
cannot recognize it | Can be spotted by eyes, but
auto punching machine
cannot recognize it |
| Imaging device | Normal thermal CTP device
1-99% @ 200lpi | Normal thermal CTP device
1-99% @ 200lpi |
| Resolution | 1-99% @ 200lpi
(dependent on CTP capability) | 1-99% @ 200lpi
(dependent on CTP capability) |
| Run-length | 100,000 | 100,000 |
| Storage | 12 month (under recommend environment) | 12 month (under recommend environment) |
Applied parameters In Imaging Device
| Data | Kodak Trendsetters | LOTTEM 400(TH1.7) | MAGNUS 400 | Screen 8600S |
| Laser power | 15- 17W | 300-320mw | 19.5-21.5W | 80-90 % |
| Drum speed | 250-300rpm | 850-900rpm | 400-450rpm | 800-900rpm |
| Resolution | Customized | Customized | Customized | Customized |
| Parameter that need set up | Focus/Zoom | Focus/Zoom | Focus/Zoom | Focus/Zoom |
Producing and Packing
Our Factory
1. Material Warehouse:
Only use South Western Aluminum, Best quality aluminum roll
manufacturer.
This ensure the plate substrate quality.
2. Worldwide Top Standard Production Line: 240meters long, 40meters
per minute.
3. Three Steps QC Control
Workflow
Certificate
FAQ
Q1: Can I get the sample?
A: We are very glad to provide some sample for you to test. We
usually provide 5-15pieces plates for free,but sincerely hope to
get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the
delivery destination. Or you can arrange the Pick-up service from
your local agent.
Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.
Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in
Hangzhou city,which is about 1.5 hour by train from Shanghai.
Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM
Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
