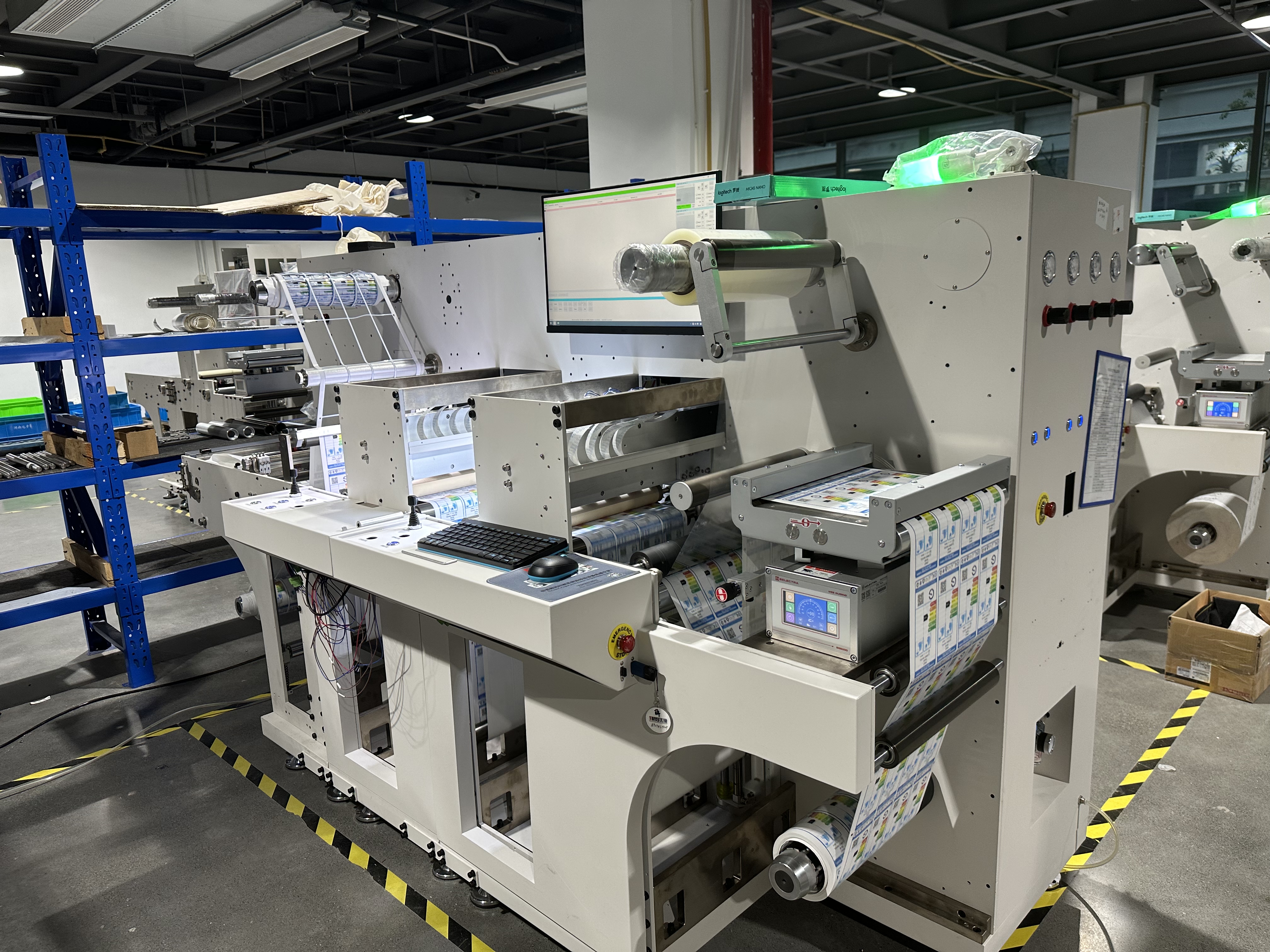

Introduction:
Use the unique and intelligent digital die-cutting technology of
our VD3350 high speed digital label due cutter, automatically choose cutting file and adjust te heads
distance. Cutting by four heads*3 units simultaneously. You do not need to worry about the production
of small and medium batch labels. What is more important is it reduces the manual
intervention and greatly improves the work efficiency compared with the previous digital cuttings.
Advantage:
1. Fast and high precision with full-servo motor
2. Fully automatic tension and feeding control
3. Intelligent position, choose file automatically
4. Standard 4 cutting heads distance can be adjusted automatically
5. Support 3 units cutting simultaneously
6. Intelligent cutting with trajectory optimization
Specification
Specificatio Of Digital Label Die-cutter Ecoo-VD3350:
Mode: VD3350
Max. media roller: diameter 450mm Cutting media width: 40-350mm
Max.label width: 330mm
Min.label length: 10mm Max.label length: 600mm
Cutting speed: Max.9m per minute (depend on label shape and size)
Cutting blades: (standard) 4 pcs
Slitting blades: (standard 4 pcs ) max.15pcs
Slitting speed: Max. 100m per minute
| Model | Ecoo-VD3350 |
| Max. media roller | diameter 450mm |
| Cutting media width | 40-350mm |
| Max.label width | 330mm |
| Min.label length | 10mm |
| Max.label length | 600mm |
| Cutting speed | max.9m per minute (depend on label shape and size) |
| Cutting blades | (standard) 4 pcs |
| Slitting blades | (standard 4 pcs ) max.15pcs |
| Cutting tracking | CCD camera |
| Die-cutting technology | with tungsten steel rotary blades |
| Cutting precision | 0.1mm (duplicate) |
| Slitting speed | Max. 100m per minute |
| Slitting width | 10-330mm |
| Slitting precision | 0.1mm |
| Machine size (W*D*H) | 2100*1195*1575CM |
| Machine weight | 1200kg |
| Power | 110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS |
| Warranty | 1year (besides high consumable parts) |
| Options | Cutting head/Slitting unit/Film back liner removal/Sheet paper
cutter |
1. Above data are get from tesing in lab, there is difference when
you use.
2. Product desing base on original parts or recommend parts.
3. We reserve right improve machine and change specification
without note in advance.
Machine Spare Parts
1. High precision feeding system:
Utilize the ultrasonic web-guide system, it makes sure the feeding
perfectly.
2. Cold laminating
It has cold laminating function, your label will be bright and
perfect. The back liner removal is optional.
3. Digital die-cutting system
VD3350 Digital label die-cutter utilizes high precision screw
transmission system. Max soeed can be 9m per minute. Individual
control for the 4 heads, combining with the function of auto adjust
the heads distance, to make the every single head on or off.
4. CCD identify system
With the CCD camera position and identify system, to recognize the
sequence, to reach the function of changing file and cutting next
graphics automatically.

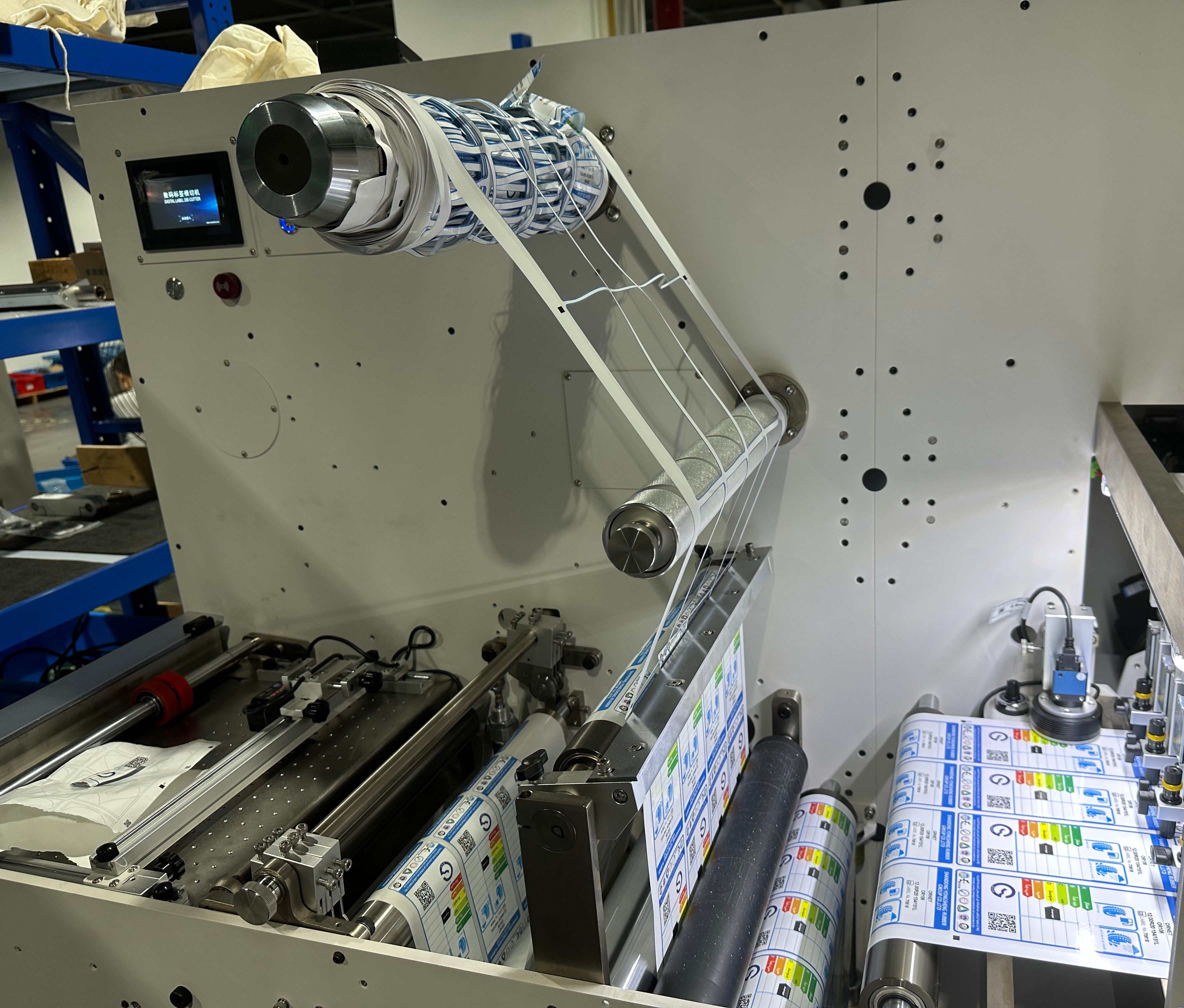

5. Precision slitting system
Utilize rotary slitting mode, can install max.15 blades, high speed
with 60m per minute, instead of traditional slitting equipment
completely.
6. The waste removing system
The precision machinery design can control the roller rotating
uniformly, avoid removing waste discontinuously due to unstable
pressure, keep finishing labels clean.
7. Sheet Cutter
The optional built-in Pc350 Sheet Cutter, can be inline with the
main Die-cutting, to perform the synchronous die-cutting and sheet
cutting.
More Details
FAQ
What about the Installation and after-sales technician support?
A: Our engineer can go to help the installation and provide the
necessary training. The buyer should take the round air plane
tickets and service charge and the local accommodation cost. Any
problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are
also many end users (printers) who have purchased the CTP products
from EcooGraphix China directly and EcooGraphix technical service
team support these installations remotely with regular onsite
visits.
These end users Printers all run the CTP systems with full
satisfaction due to our robust quality, seamless remote service,
thorough training and maintanence. If you are a printer who is
considering purchasing directly from EcooGraphix China, there is no
hasle on installations, training and after sales service. We
guarantee your satisfaction.
