Specification
| Model | ECOO-TD1060S | ECOO-TDS1060 |
| Maximum sheet(mm) | 1060x740 | 1060x740 |
| Minimum sheet size(mm) | 400x360 | 400x360 |
| Max. Die cutting size(mm) | 1040x730 | 1040x730 |
| Max. Stamping size(mm) | / | 1020x720 |
| Height of cutting rules(mm) | 23.8 | 23.8 |
| Maximum pressure(N) | 300x10 | 300x10 |
| Inside chase size(mm) | 1120x760 | 1120x760 |
| Stock range | Cardboard 90-2000g/m²(E, B flute) | Cardboard 90-2000g/m²(E, B flute) |
| Min. gripper margin(mm) | 4 | 4 |
| Maximum speed(s/h) | 7500 | 7500 |
| Max. hologram stamping plate(mm) | / | 6000 |
| The thickness of stamping plate | 5 | 5 |
| Longitudinal feeding shafts | / | 3 (optional 6) |
| Transversal feeding shafts | / | 2 |
| Feeding pile height(mm) | 1150 | 1500 |
| Delivery pile height(mm) | 1100 | 1100 |
| Electric heating system | / | 12 zones |
| Min. foil width(mm) | / | 15 |
| Foil reel core(mm) | / | 25(1") 76(3") |
| Rated power(kw) | 23 | 46 |
| Air supply | 0.8-1.0 MPa, ≥0.6m/min | 0.8-1.0 MPa, ≥0.6m/min |
| Overail dimension(mm) | 6000x4200x2400 | 6000x4530x2250 |
| Weight of machine(kg) | 16000 | 18000 |

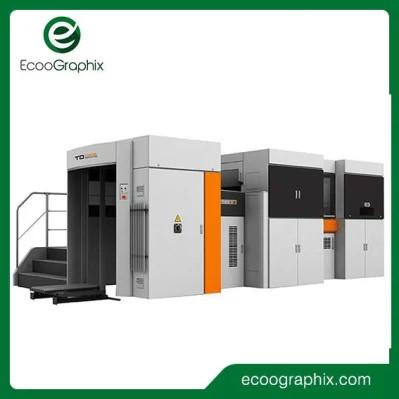

Model
Main Features
1. Delivers accurate, adjustable impression for foil stamping,
embossing and die cutting
2. Two horizontal, cross pull foil feeds are fully programmable to
provide maximum versatility and excellent foil economy
3. Air blast system helps to separate foil from stock on critical
jobs
4. Micrometer adjustment on side guide and front guide
5. Adjustable dwell on impression
6. Honeycomb base is convenient for loading
7. Missed sheet detector
8. 4 heating zones with digital control
9. 24 hours preheating device
10. Control system with touch screen HMI, PLC and servo system.
Machine Spare Parts List
Feeder
The intelligent feeder system gives perfect sheet feeding,
cuts feeder errors on all the material you work with everyday
include paper, cardboard and mocroflute.
Die cutting section
Pressure can be set on the touch screen.
The machine supervission display and 3D touch screen show the
working condition of the machine for malfunction diagnosis.
Chase is installed with centerline system and pheumatic lock-up
system.
Stripping unit
The stripping unit is designed to remove even the smallest pieces
of waste.
Using dedecated or universal tooling, the station is up and running
in no time, delivery outstanding performance and quality, whatever
the jol.
Quick lock system provide fast and easy makerady.
Packaging & Shipping
Certificates
FAQ
Q: What about the Installation and after-sales technician support?
A: Our engineer can go to help the installation and provide the
necessary training. The buyer should take the round air plane
tickets and service charge and the local accommodation cost. Any
problems or questions, we will be at your disposal 7x24 hours. Among our large amount of equipments installations worldwide, there
are also many end users (printers) who have purchased the products
from EcooGraphix China directly and EcooGraphix technical service
team support these installations remotely with regular onsite
visits.
