Ecoographix High Speed Paper Sheeter Cutting Machine

Product Description

INTRODUCTION:

GM model Servo Precision High Speed Sheet Cutter apply the advanced technique of Germany and England. The machine computer control system apply servo motor and AC transducer which are both international of top brand. The conveyer belt apply NITTA from Japan. The pneumatic vibrator apply FINDEVA from Switzerland. The electrical system adopts MOELLER&OMRON. The speed of cutting paper is so fast and stable. Germany precise bearing and cutting knife assure the high cutting precision. The touchscreen makes the operation easy. The anti-curve rack assure the paper flat. This machine is the paper processing machine which is very popular in the paper making and printing industry. It can improve the efficiency and benefit of your work.

Specification

Model: Ecoo GM-1400

Cutting type: The up knife cut reciprocally and the down knife is fixed

Applicable: Range of paper 60-550g

Max. paper roll diameter: 1800mm

Max. paper-cutting width: 1400mm

Range of cutting length: 450-1600mm

The format of slitting: 2 sheet

Max. cutting speed: 350 cut/min

Max. paper stacking height: 1500mm

Air pressure source requirement: 0.8Mpa

Design power: 380V/220V 50HZ

Gross weight: 13000KGS

Cutting precision:

Depending on the density, roll number and material of paper roll, ±0.5mm for 1000mm, ±0.1% for over 1000mm, and ±0.1% for acceleration or deceleration. The above data is based on the stable cutting operation and correct operation procedure. (When the cutting paper roll is one, the length of the cutting paper is the correct length)

Output:

Actual output depends on the paper material, paper weight, cutting length, number of paper roll, techn ology of the operator and operation conditions, etc.

Machine Spare Parts

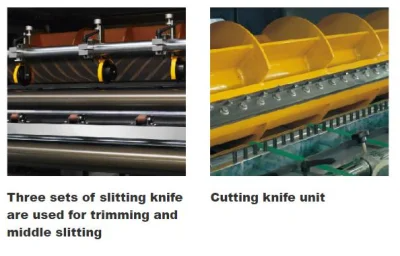

1. High-precision single knife cutting machine
2. Auto Prismatic adjustment system for paper
3. Middle slitting and waste collection paper system
4. Automatic counting and label inserting equipment
5. Paper transporting equipment
6. Automatic paper trimming and collecting machine
7. Electrical controlling system
8. Driving motor system
9. Accessory by machine
10. Double arm oil pressure shaftless mill roll stand
11. Equipment of electrostatic elimination
12. Automatic directing and paper tension controller
13. Equipment of automatic vacuum
14. Operation system: LCD panel by operator
15. Main drive system: AC servo motor

Producing And Packaging

More Details

FAQ

1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing,
including prepress, pressroom and post press, focusing on packaging printing and book printing.
We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.

2. Where is your factory?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.

3. What is your warranty?
One year for machine and printing head if use our ink. One year for machine only if do not use our ink.

4. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.

5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
