Brand Name : | EcooGraphix |
Model Number : | S-720A |
Certification : | CE |
Price : | Negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 1000sets/Year |
Small Format Laminating Machine With Cutters For Office Use
Product Description
Features
1. Intelligent temperature control, thermally conductive inner
steel reel, infrared internal heating.
2. Electric adjustment of single-sided reverse curl function.
Electric adjustment of single-sided reverse curl function.
3. Frequency converter speed control, 400W gearbox decelerating
motor.
4. Manual pump hydraulic control system, shockproof pressure
display gauge.

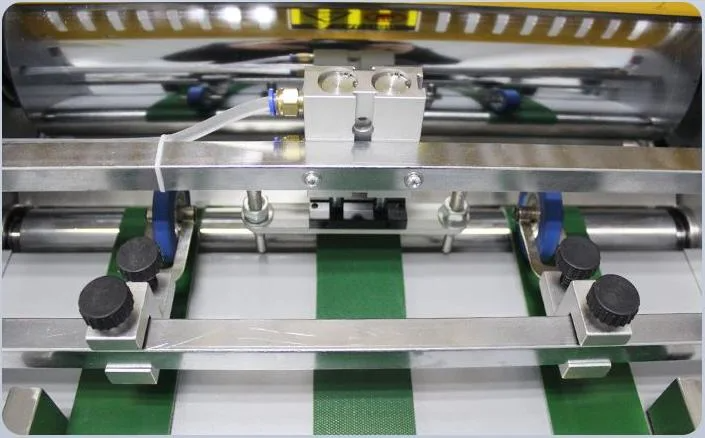

5. Synchronous conveyor belt automatically feeds paper, and the
finished product is automatically broken.

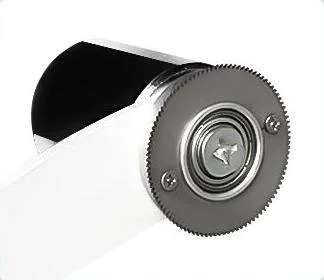

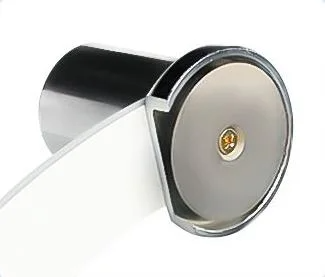

6. Equipped with trimming cutter and dotted tooth cutter.
7. Equipped with an inching foot switch to facilitate film
channeling.
8. The diameter of the steel roller is 200mm, and the diameter of
the lower rubber roller is 150mm.
9. The rubber roller is made of imported non-sticky high
temperature resistant silicone rubber.
Specification
Model | S-720A |
Max. Laminating Width | 720mm |
Maximum Thickness | 2/7mm(according to custom needs) |
Laminating Speed | 20-25m/min |
Roller Diameter | 200/150mm |
Max. Heating Temperature | 160ºC |
Preheat Time | 15-20 minutes |
Heating Mode | Infrared heating |
Heating Power | 3900W/ 5400W |
Power Supply | AC100, 110, 220-240V / 50,60Hz |
Motor Power | 400W |
Weight | Net: 480kgs, Gross: 550kgs |
Producing And Packaging
More Details
FAQ
1. Where is your company?
Our company is located in Hangzhou city , which is 1 hour by train
from Shanghai.
2. What about the Installation and after-sales technician support?
Our engineer will go to help the installation and will provide the
necessary training on site. (The buyer should take the round
airplane tickets and service charge and the local accommodation
cost). Any problems or questions,we will be at your disposal 7x24
hours.
![]() |
