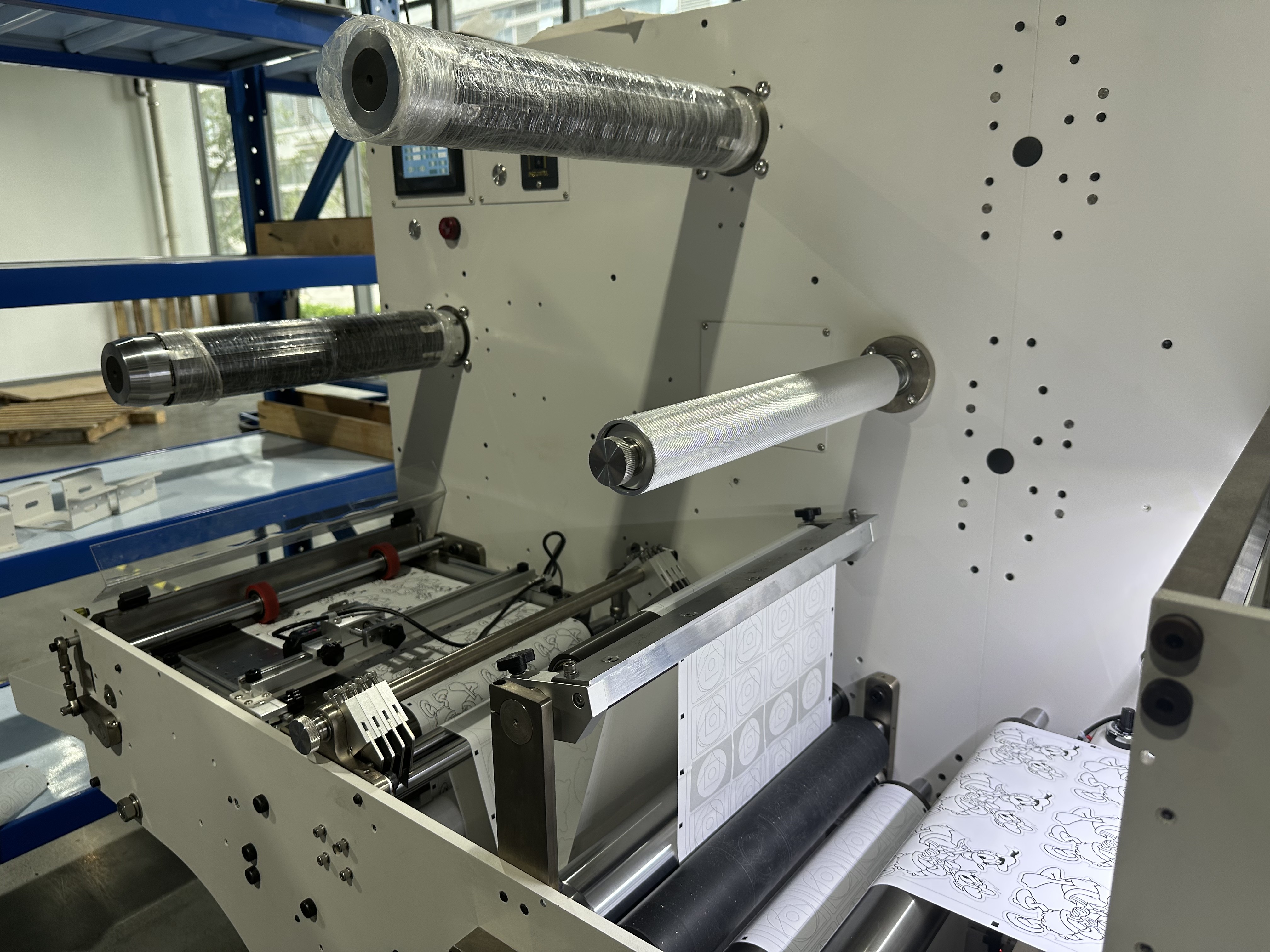

    Intelligent Digital Roll To Roll Label Cutting And Rewinding Machine

    Ask Lasest Price
    Brand Name : ECOOGRAPHIX
    Model Number : VD3350
    Certification : ISO, SGS, CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000 unit per year
    Delivery Time : 30-60 days
    • Product Details
    • Company Profile

    Intelligent Digital Roll To Roll Label Cutting And Rewinding Machine

    Brief introduction and application


    VD3350 is designed to work with digital label printing machines. It is fully computer-controlled and can cut any sizes or curves.

    It does not require cutting die or mould. It can deal with variable data and can do tailer made or complicated designs.



    Machine features and functions


    1 High precision feeding system:

    Utilize the ultrasonic web-guide system,

    it makes sure the feeding perfectly.

    2 Cold laminating

    It has cold laminating function, your label will be bright and perfect. The back liner removal is optional.

    3 Digital die-cutting system

    VD3350 Digital label die-cutter utilizes high precision screw transmission system. Max speed can be 30m per minute. Individual control for the 4 heads, combining with the function of auto adjust the heads distance, to make the every single head on or off.


    4 CCD identify system

    With the CCD camera position and identify system, to recognize the sequence, to reach the function of changing file and cutting next graphics automatically.

    5 Precision slitting system

    Utilize rotary slitting mode, can install max.15 blades, high speed with 60m per minute, instead of traditional slitting equipment completely.

    6 The waste removing system

    The precision machinery design can control the roller rotating uniformly, avoid removing waste discontinuously due to unstable pressure, keep finishing labels clean.


    Technical data


    ModelEcoo-VD3350
    Max. media rollerdiameter 450mm
    Cutting media width40-350mm
    Max.label width330mm
    Min.label length10mm
    Max.label length600mm
    Cutting speedmax.9m per minute (depend on label shape and size)
    Cutting blades(standard) 4 pcs
    Slitting blades(standard 4 pcs ) max.15pcs
    Cutting trackingCCD camera
    Die-cutting technologywith tungsten steel rotary blades
    Cutting precision0.1mm (duplicate)
    Slitting speedMax. 100m per minute
    Slitting width10-330mm
    Slitting precision0.1mm
    Machine size (W*D*H)2100*1195*1575CM
    Machine weight1200kg
    Power110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS
    Warranty1year (besides high consumable parts)
    OptionsCutting head/Slitting unit/Film back liner removal/Sheet paper cutter


    It depends on the customer's inquiry for speed. The standard configuration is one group of 4 pcs of blades. The max speed 30 m/min will require 3 groups of blades.


    4. is it flatbed or roll cutting?

    Actually, it is not flatbed cutting nor roll cutting. It is digital cutting. The blades look like needles and cut in any curves. It is totally computerized.
