    Automatic Self Adhesive Thermal Paper Label Flexo Printing Machines 60m/min

    Ask Lasest Price
    Brand Name : EcooGraphix
    Model Number : Ecoo ZBS-320
    Certification : ISO9000, CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 200 Sets/Year
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    Automatic Self Adhesive Thermal Paper Label Flexo Printing Machines 60m/min

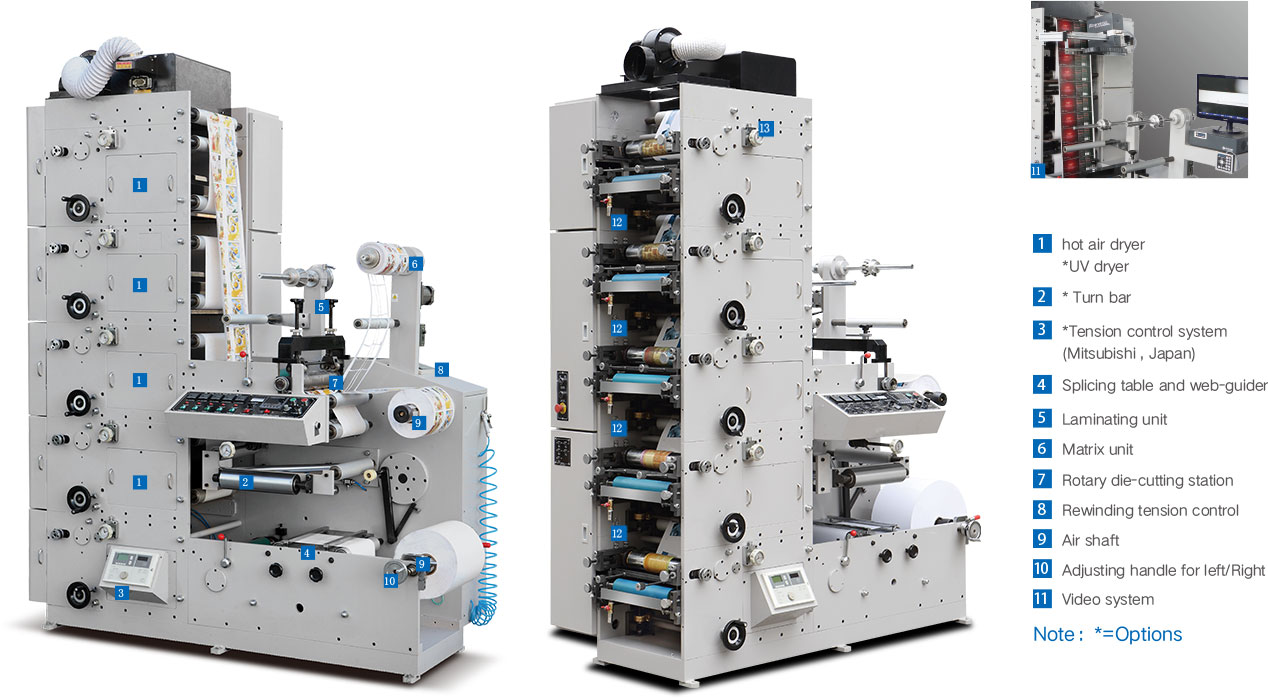

    Automatic Flexographic Label Printer With One Die-cutting Station




    Features


    1. Adopt the ceramic anilox cylinder to transfer the ink.

    2. Unwinding and rewinding are controlled by magnetic powder brake/clutch.

    3. Each printing unit adopts 360°plate adjustment.

    4. Each printing unit equips with hot air dryer.

    5. This machine with one die-cutting station, which makes printing and die-cutting can be finished in one process.

    6. The ink rollers will be separated from the printing rollers, and keep running when the machine stops.

    7. Main motor use inverter to adjust stepless speed.

    8. The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in a lump. It is an ideal machine for printing adhesive label.




    Specifications




    Automatic Flexographic Label Printing Machine
    ModelEcoo-320
    Printing speed60 m/min
    Printing color1-6 colors
    Max. web width320mm
    Max. printing width310mm
    Max. unwinding diameter600mm
    Max. rewinding diameter600mm
    Printing length177.8-355.6mm
    Precision of chromatography±0.1mm
    Dimensions (L*W*H)2000x1100x2600mm
    Machine weightabout 2150kgs




    Main Configuration


    MAIN CONFIGURATION
    DescriptionBrandQuantityOrigin
    Printing roller 3 setsChina
    Anilox rollerAuclean/Laser1 setChina
    Unwind tension controllerMitsubishi1 setJapan
    Rewind tension controllerZXTEC1 setChina
    Main motorWannan1 setChina
    TransducerMitsubishi2 setsJapan
    Magnetic power brake/cluthNingxia3 setsChina
    Electromagnetic valveAirtac2 setTaiwan
    InverterSchneider1 setFrence
    AC ContactorSchneider2 pcsFrance
    Time relayC-LIN1 pcChina
    Solid relayOmron6 pcsJapan
    Micro relayWeidmiiller2 pcsGermany
    Temperature ControllerYuyao6 pcsChina
    Air switchesSiemens8 pcsGermany
    Low pressure wiringSchneiderAllFrance
    All the bearingNSK/CHINA JAPAN/CHINA




    Producing And Packaging


    From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.











    Certificates






    FAQ


    1. Payment term?
    Down payment 30% of the total payment shall be made by T/T once order is confirmed and the balance shall be paid by T/T before delivery.

    2. Installation and after service?
    Conditional and prior to mutual agreement between the seller and the buyer.

    3. Warranty?
    12 months from the date of arrival at the port of destination. Damages caused by faulty operation do not fall under warranty wear and tears parts are not under warranty.

    4. Package?
    Seaworthy packaging (vacuum packed with aluminum foil in wooden cases).
