Auto Calculate Label Printing Machine 320mm Media Width

    Buy cheap Auto Calculate Label Printing Machine 320mm Media Width from wholesalers

    Buy cheap Auto Calculate Label Printing Machine 320mm Media Width from wholesalers
    • Buy cheap Auto Calculate Label Printing Machine 320mm Media Width from wholesalers
    • Buy cheap Auto Calculate Label Printing Machine 320mm Media Width from wholesalers
    • Buy cheap Auto Calculate Label Printing Machine 320mm Media Width from wholesalers

    Auto Calculate Label Printing Machine 320mm Media Width

    Ask Lasest Price
    Brand Name : EcooGraphix
    Model Number : Ecoo LL320
    Certification : ISO9000, CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500 Sets/Year
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

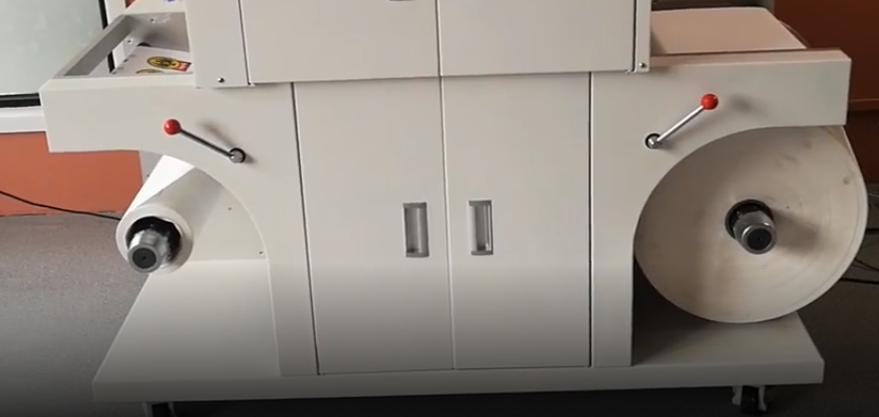

    Auto Calculate Label Printing Machine 320mm Media Width


    4 Color LED Technology Digital Label Printing Machine


    With the development of society and people's pursuit of product diversification, more and more products need to be labeled and customized.
    Label printing company and some enterprises need digital label printers to save printing costs and time costs.
    Digital Label Printer meets the different needs of various customers with suitable printing costs and lower product prices.



    MODEL: Ecoo LL320


    In order to get a high quality printing, we researched and developed typical and easy a printer software for LL320. This software has friendly interface, and easy to understand. Automatically edit jobs together, integrated with programmatic printing. PhaserMatch 5 color management system was nested to printing software. You can get best image label and finish the jobs easily.

    It running must be with connecting machine

    Easy user operation interface and media management system
    Rotate, zoom, minor and nest your labels and jobs freely
    Calculate the toner using volume, label cost and job cost
    Color management with RIP
    Second track printing
    Cycling printing for many pages in job


    Digital Label Printing Machine
    ModelEcoo LL320
    Print speedUp to 7.26 meters/min (30ft/min)
    Print technology4 Color (CMYK) LED technology
    Preparing timeLess than 28s
    Printer processor533MHz
    Data port(Standard)10BASE-T/100BASE-TX, USB2.0; (Options) internet 1000BASE-T, IEEE1284-B
    Media width320mm
    Print widthMin 210mm, Max 308mm
    Print lengthMax 1200mm, Min 98mm
    Substrate typesPaper: Paper, High glossy paper, Matt paper; Film: PET, PP, PE, GHS..
    All of media was tested in special environment, not tested media possible can't be used.
    Print quality1200x2400dpi
    Toner suppliesCMY-18500sheets (A4, 5% coverage rate) K-26000 sheets (A4, 5%
    coverage rate); (Rated according to ISO/IEC 19798 guidelines)
    Drum suppliesCMYK-100000 (print runs according to the operating cycle, Medium size and the direction to change)
    Size1400*810*1600mm
    WeightPrint engine: 423KGS
    Operating environmentTemperature: 20ºC-23ºC, Humidity: 45-55% RH
    Power supply110-127 VAC, 50-60Hz@2800W, 220-240 VAC, 50-60Hz@2800W
    Power consumption(AC220-240V) sleep 75W; waiting 100W; running 1100W
    Monthly running jobMax. 20000sqm (advice)
    Warranty1 year (excluding high consumable parts)

    Consumbales:
    Toner K: print 26 sheets A4 with 5% coverage
    Toner CMY: print 18.5K sheets A4 with 5% coverage
    Drum: 100K sheets A4
    Waste box: 300k sheets A4
    Transfer cleaner: 200k sheets A4
    Transfer roller: 200k sheets A4
    Developer CMYK: 480k sheets A4
    Developer house: 480k sheets A4
    Fuser: 480k sheets A4
    Transfer belt Assy: 480k sheets A4






    Features


    Software Features

    The Ecoo LL320 digital label priting machine overturns digital label printing line. She has best advanced LED production printing engine. We have paid efforts integrate with much year experience. We get high efficiency and low cost printing machine. Most of printing company and print shop can have it and create a wonderful wealth.

    • LED low temperature image technology
    • CMYK 4 colors
    • Printing resolution 1200*2400 dpi
    • Print speed 7.26m per minute
    • Print width 308mm
    Auto web guide tension system

    1. For tension adjustment of all media


    2. Auto calculate the length of feeding

    3. Ultrasonic detect edge of media to avoid media loading twisty

    4. Avoid printing image to stretched and twisted

    5. Increase the lifespam of engine


    Producing And Packaging
    From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.









    Certifications






    FAQ



    1. Payment term?
    Down payment 30% of the total payment shall be made by T/T once order is confirmed and the balance shall be paid by T/T before delivery.

    2. Installation and after service?
    Conditional and prior to mutual agreement between the seller and the buyer.

    3. Warranty?
    12 months from the date of arrival at the port of destination. Damages caused by faulty operation do not fall under warranty wear and tears parts are not under warranty.

    4. Package?
    Seaworthy packaging (vacuum packed with aluminum foil in wooden cases).
