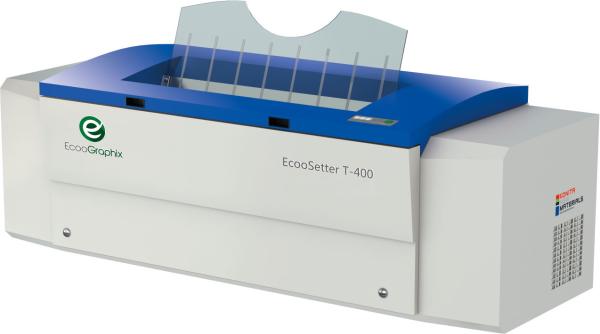

4UP Plate Making Machine - T400 Serie
EcooGraphix Thermal CTP (Computer To Plate) Plate making Machine is
the first Prepress necessity of quick short-run offset printing.
It can output the Images on the computer to Printing CTP plate
directly though the CTP machine and save the film and labor.
Product Description
Application
EcooGraphix CTP Plate Making Machine is the first prepress
necessity of quick short-run offset printing. It can output the
images on the computer to printing CTP plate directly through the
CTP machine and save the film and labor.
Specification
Model
T-400F, T-400S, T-400E
Exposing Method
External Drum
Imaging System
48-channel, 32-channel, 24-channel,
Discrete 830nm laser diode
Throughput
28plates/hour, 22plates/hour, 16plates/hour,
800mm x 660mm, 2400dpi
Plate Sizes
Max. 800mm x 690mm, Min. 400mm x 300mm
Exposing Size
Max. 800mm x 646mm, Min. 260mm x 284mm
Media Type
Positive 830nm thermal CTP plate
Plate Thickness
0.15mm to 0.30mm
Resolution
2400dpi
Repeatablity
±5μm (Continuous exposing for 4 times or above on the same plate
with a temperature of 23ºC and humidity of 60%)
Interface
USB 2.0
Plate Loading
Semi automatic
Net Weight
800kg
Machine Size (WxLxH)mm
1900x1200x1000
Power Supply
Single phase: 220AC, + 6%, - 10%, Power Consumption: 4KW
Environment
Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%
| EcooGraphix 400 CTP Series Specifications |
| Model | T-400F | T-400S | T-400E |
| Imaging System | 48 channel | 32 channel | 24 channel |
| Output Speed | 28 pph | 22 pph | 16 pph |
| 800mm x 600mm / 2400dpi |
| Plate Size | Max. 800 x 690mm Min. 400mm x 300mm |
| Plate Thickness | 0.15mm to 0.30mm |
| Resolution | 2400dpi |
| Weight | 800KG |
| Repeatability | ±5μm(continuous exposing for 4times or above on the same plate with
a temperature of 23ºC and humidity of 60%) |
| Machine Size (WxLxH)mm | 1900×1200×1000mm(W×D×H) |
| Power Supply | single-phase: 260AC, +6%-10%; Power Conumption: 4KW |
| Environment | recommended: 21-25ºC, Allowed temperature:15-30ºC, Humidity:
40-70%RH |
Producing and Packing
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.

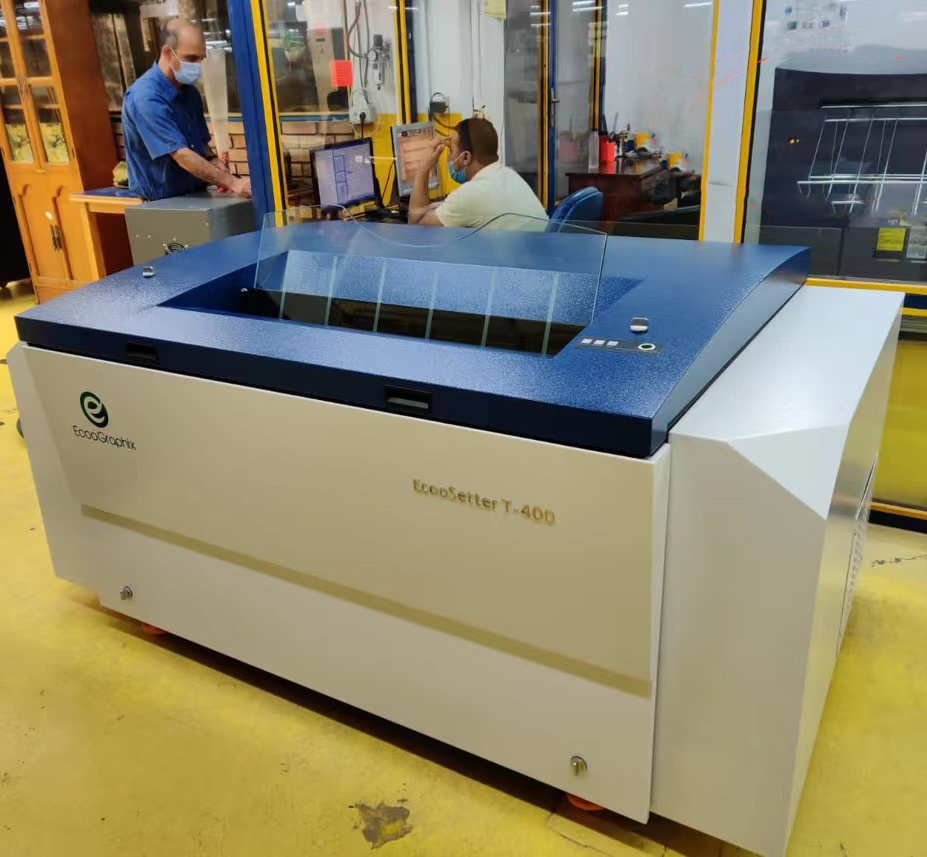

Installation Worldwide
About us
EcooGraphix is a leading worldwide prepress and graphics arts
supply provider. With our main office in China and top quality
factories mostly based in China. We provide top quality as well as
cost competitive products including CTP/CTCP equipments, CTP/CTCP
plates, and some other graphics arts supply. Furthermore, we treat
quality service as our top priority to ensure evey single customer
operates seamlessly. We are by far one of largest and top quality
and service provide for CTP equipments, plates and service from
China. With hundreds of EcooGraphix CTP installations across USA,
Canada, Mexico, South America, UK, Europe, Middle East, Turkey and
etcs, we have gained a very fine international reputation in the
industry.
FAQ
1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline
Thermal CTP, CTCP, VLF CTP and CTCP, FlexoCTP, Processor, Offset
Plates, inks, blankets, postpress packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in
USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so
on are very pleased with our technician support service and product
performance.
We also have five offset plates production lines producing the
thermal CTP plate(single and double layers), positive CTCP
plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and
no worry about the after-sales service from our company.
2. Where is your factory?
Our CTP machine factory is located in Hangzhou city, which is about
1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTP, one year
for the processor.
4. What is the Lead Time?
Usually 30-45 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the
necessary training. The buyer should take the round air plane
tickets and service charge and the local accommodation cost. Any
problems or questions, we will be at your disposal 7x24 hours.
