8 Up UV/Ctcp CTP Machine Model: UV-800S
This is a UV CTP machine, also known as CTCP machine, conventional
CTP machine. The laser wavelength is 400-410 nm. It applies CTCP
plate or high sensitive PS plate. It is a 8-up format machine,
manual plate loading and unloading, 48 laser diodes. The max. speed
is 22 pcs per hour in size 1030*800nm. Resolution is 2400 dpi.
Specification
Model: EcooSetter UV-800S
Laser wavelength: 400-410nm
Plate: UV plate, high-sensitive PS plate
Exposing Method: External Drum
Imaging System: 48-channel
Throughput: 22 plates per hour, 1030mmx800mm 2400dpi
Plate Size: Max. 1163mm x 940mm Min. 400 x 300mm
Plate Thickness: 0.15mm to 0.3mm
Resolutions: 2,400dpi
Repeatability: ±5μm(continuous exposing for four times or above on the same plate
with a temperature of 23ºC and humidity of 60%)
Interface: USB2.0
Weight: 900KG
Size: 2320×1080×960mm(W×D×H)
Power Supply: single-phase: 220AC+6%,-10%; Power Consumption:4KW
Environment: recommended: 21-25ºC,max.15-30ºC, humidity:40-70%
| EcooGraphix UV800 Series Specifications |
| Model | UV-800F | UV-800S | UV-800E |
| Imaging System | 64 | 48 | 32 |
| Output Speed | 28 | 22 | 16 |
| 1030mm x 800mm / 2400dpi |
| Plate Size | Max. 1163 x 940mm Min. 400mm x 300mm |
| Plate Thickness | 0.15mm to 0.30mm |
| Resolution | 2400dpi |
| Weight | 900KG |
| Repeatability | ±5μm(continuous exposing for 4times or above on the same plate with
a temperature of 23ºC and humidity of 60%) |
| Machine Size (WxLxH)mm | 2320*1080*960mm (W*D*H) |
| Power Supply | Single-phase: 260AC, +6%-10%; Power Conumption: 4KW |
| Environment | recommended: 21-25ºC, Allowed temperature:15-30ºC, Humidity:
40-70%RH |
Producing and Packing

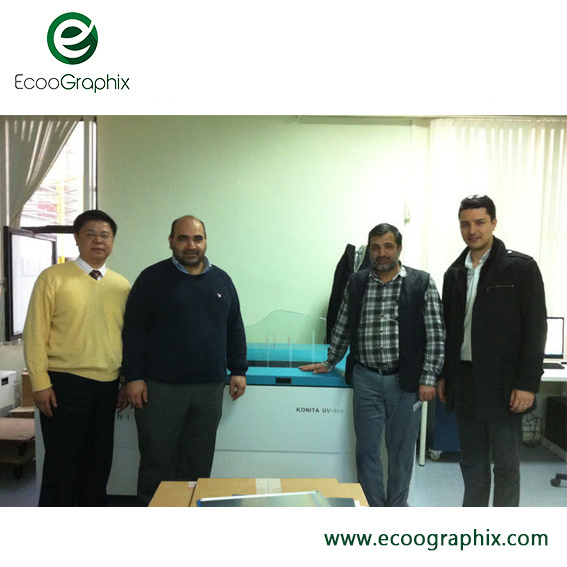

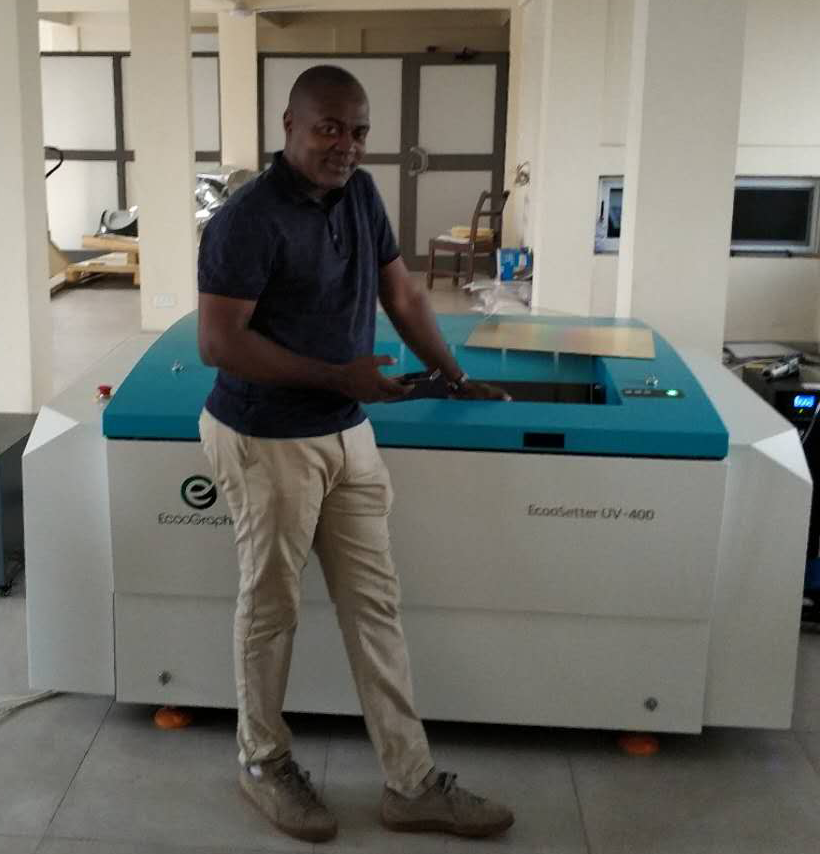

Installation Worldwide
FAQ
1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline
Thermal CTP, CTCP, VLF CTP and CTCP, FlexoCTP, Processor, Offset
Plates, inks, blankets, postpress packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in
USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so
on are very pleased with our technician support service and product
performance.
We also have five offset plates production lines producing the
thermal CTP plate(single and double layers), positive CTCP
plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and
no worry about the after-sales service from our company.
2. Where is your factory?
Our CTP machine factory is located in Hangzhou city, which is about
1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTP, one year
for the processor.
4. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the
necessary training. The buyer should take the round air plane
tickets and service charge and the local accommodation cost. Any
problems or questions, we will be at your disposal 7x24 hours.
