Durable 3 Ply Microspheres Compressible Blanket Polished

Ask Lasest Price
Brand Name :	EcooGraphix
Model Number :	ECOO-BL-M
Certification :	ISO9000, CE
Payment Terms :	L/C, T/T
Supply Ability :	300,000 Sqm/Year
Delivery Time :	25 Days
Price :	Negotiable

Add to Cart

Product Details
Company Profile

Durable 3 Ply Microspheres Compressible Blanket Polished

Durable 4/3 Ply Microspheres Fabric Printing & Coating Blanket

△ Application

EcooGraphix Printing Blanket is suitable for printing of coated papers, carton boards and the like.

So the finish products of whole offset printing would be carton, coated paper, newspaper, magazine and so on.

▽ Structure

The printing blanket normally includes 3 layers as below:

A: a base non-woven fabric or a spun bonded non-woven fabric layer which is assigned to the printing cylinder;

B: a soft, highly resilient void-free compressible intermediate rubber layer which has closed gas pores;

C: an outer-lying void-free layer of an elastomeric layer which faces toward the printing material.

☆ Specification

Model
ECOO-BL-M

Construction
4/3 ply fabric

Thickness
1.97/1.70 ± 0.02mm

Color
Blue/Green

Compressible
Microspheres

Surface
Micro-ground and polished

Roughness
0.8-1.0μm

Hardness
76-80 Shore A

Elongation
≤ 1.0%

Tensile Strength
≥ 85

Suitable Printing Segment
Publishing, Packaging, Plastic and Metal Printing

Application
Strong universality;
Appropriate to dot and word printing;
Speed about 15000 prints/hour.

Characteristic
Moderate compressible avoids moving image of machine and reduces the edge marking.
Wide-ranging print.
Prefer to carton print and full mold print.

Model	ECOO-BL-M
Construction	4/3 ply fabric
Thickness	1.97/1.70 ± 0.02mm
Color	Blue/Green
Compressible	Microspheres
Surface	Micro-ground and polished
Roughness	0.8-1.0μm
Hardness	76-80 Shore A
Elongation	≤ 1.0%
Tensile Strength	≥ 85
Suitable Printing Segment	Publishing, Packaging, Plastic and Metal Printing
Application	Strong universality; Appropriate to dot and word printing; Speed about 15000 prints/hour.
Characteristic	Moderate compressible avoids moving image of machine and reduces the edge marking. Wide-ranging print. Prefer to carton print and full mold print.

★ Features

♥ High cost-effective. Our most economic blanket model as well as most popular seller, could satisfy 85% printing jobs.

♠ High compressive ability, which allows many types and printing material in different thickness.

♦ Wide range printing, prefers package printing on carton in moderate speed.

♣ Be excellent in the action of absorbing a shock such as a mechanical impact.

♥ Prevent the material to be printed from winding around the blanket cylinder.

○ Aluminum Bar

We can offer blanket with or without bar, depending on customers' inquiry.
$5 for each pair of bars.
Please let us know the machine model or bar size if you need blanket with bars.

♪ Tips

1) Where does a blanket use in printing ?

See above image.
The blanket is used to cover the blanket cylinder(the intermediate cylinder) in each color unit within printing machine.

2) How does it work ?

Simply speaking, the blanket is to transfer the image from plate onto paper.
The image is "offset" onto the blanket and then to paper.
The blanket created a smoother image on most types of paper and can print on rough or heavy stocks as well as other media.
Most offset presses use this lithographic method.

♭ Packaging

We offer blanket in any sizes in sheet or in roll as following:

The blankets will be rolled and packed in polymer bag and carton with enough protective layers.

The customer can decide the content of back side, usually the logo or size.

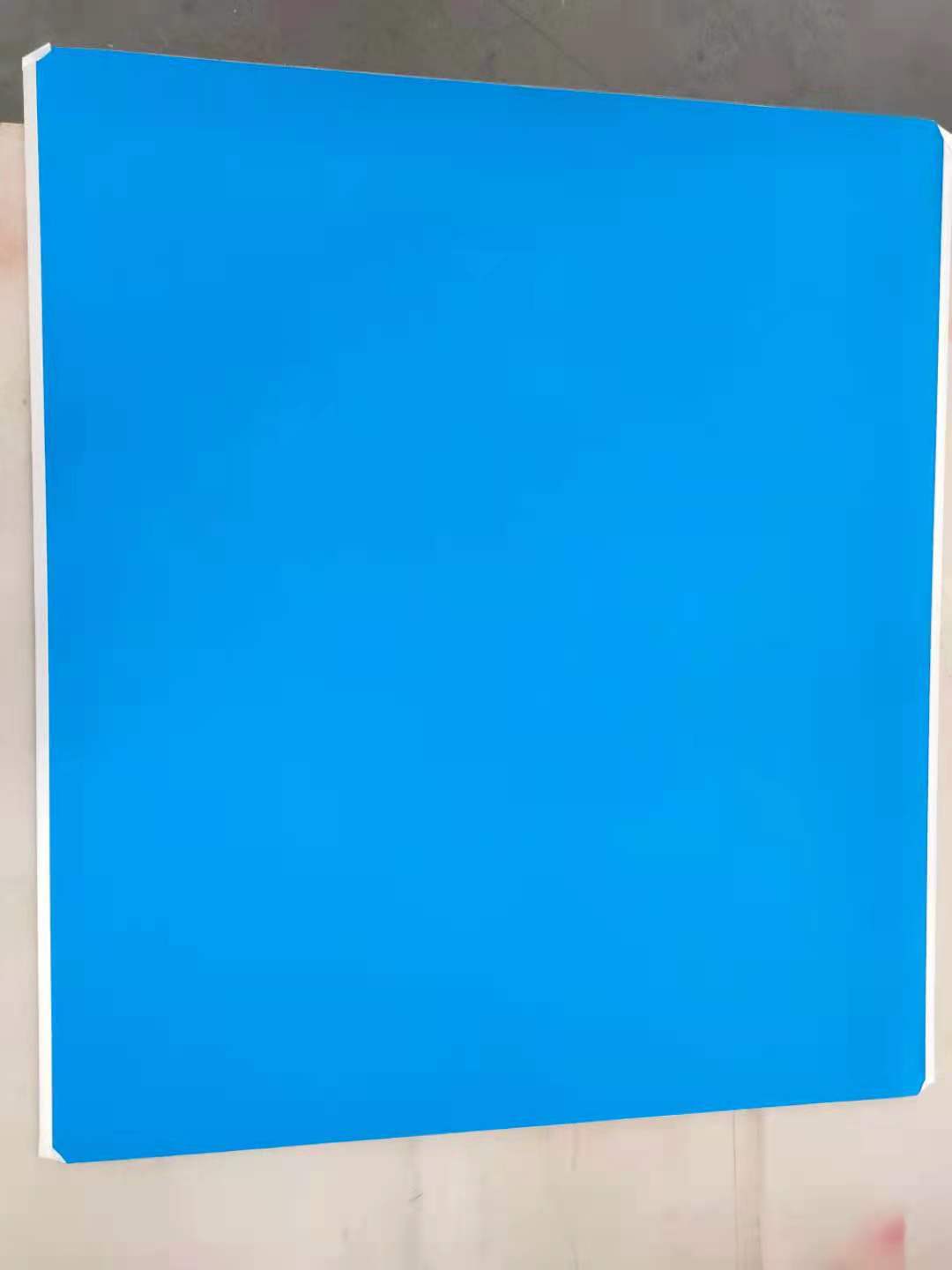

Blanket In Sheet

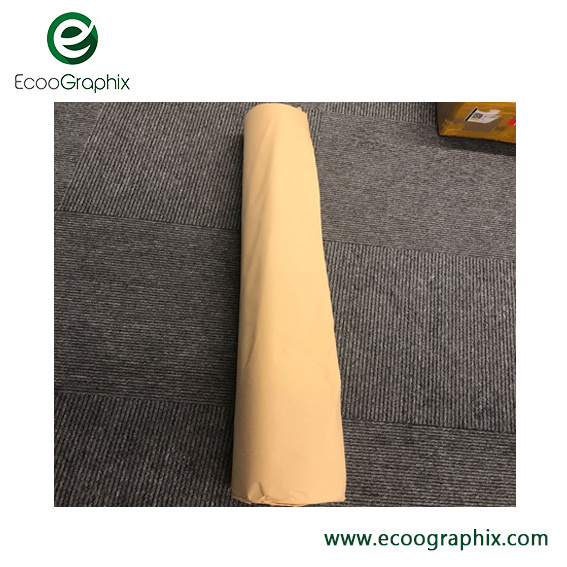

Blanket In Roll

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

¶ Maintenance

Clean the blanket with fast volatile organic solvents.

Clean rolls when ink color changing or refilling.

Release the blanket off the cylinder when the printing machine stopped for a long time.

New blankets should be stored in dry and cool place covered with dark layer.

♮ Certificates

♯ FAQ

Q1: Do you offer free sample ? How long is the sample time of the shipping ? Does the sample fee can be returned ?

A: Since blanket is high value, we did not offer free sample. But we can offer favorable discount. It will take 5 days to prepare sample. If you place formal bulk order, we will refund the sample fee and courier cost.

Q2: About the sample what is the cost of transportation ?

A: The freight depends on weight, packing size and your country or province region, etc.

Q3: How long can I expect to get the sample ?

A: The sample will be ready for delivery in 3-5 days and will be sent via international express such as DHL, UPS, TNT, FEDEX and would be arrived within 3-5 days.

Q4: Where is your factory ?
A: Our factory is located in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!
