High Sensitivity Double UV CTP Printing Plates 410nm Non Ablative Coating

    Buy cheap High Sensitivity Double UV CTP Printing Plates 410nm Non Ablative Coating from wholesalers

    Buy cheap High Sensitivity Double UV CTP Printing Plates 410nm Non Ablative Coating from wholesalers
    • Buy cheap High Sensitivity Double UV CTP Printing Plates 410nm Non Ablative Coating from wholesalers

    High Sensitivity Double UV CTP Printing Plates 410nm Non Ablative Coating

    Ask Lasest Price
    Brand Name : EcooGraphix
    Model Number : ECOO-CTCP-D
    Certification : ISO9000, CE
    Payment Terms : L/C, T/T
    Supply Ability : 2,000,000 Sqm Per Year
    Delivery Time : 30 Days
    Price : Negotiable
    • Product Details
    • Company Profile

    High Sensitivity Double UV CTP Printing Plates 410nm Non Ablative Coating


    EcooGraphix Offset Printing Plate High Sensitivity UV/Ctcp Plate



    (¦3[▓▓] Brief Introduction

    EcooGraphix Positive CTCP Plate(Double Layer) are made for UV based ink. It is also compatible with an ordinary ink.
    It is use for long run length high grade offset commercial and newspaper printing.





    (¦3[▓▓] Characteristics



    Features
    - Positive writing CTCP(conventional) plate
    - Double layers system
    - Made with high grade aluminum from Europe
    - Wide adaptability for different plate setter brands
    - Non-ablative coating
    - Run lengths up to 80,000 impressions
    - UV ink up to 50,000 impressions

    - Ability to print both AM and FM screening

    Advantages

    - Resist UV-ink; Workable with both normal ink and UV ink
    - Mature product, good stability and wide processing latitude
    - Long run length with non-ablative coating
    - Being adaptive to most of platesetters, processors and solutions.

    Benefits
    - Very quick turn around time on press
    - Robust coating and consistent reliablity
    - Compatible with most developers
    - Premium quality of dot reproduction and long run length




    (¦3[▓▓] Specification
    Model
    ECOO-CTCP-D

    Plate Type
    No preheat, positive working, UV sensitive plate, double coated, no need baking for UV ink printing


    Application
    Newspaper printing, commercial printing and package printing

    Substrate
    Electrochemically Grained and Anodized Aluminum


    Gauge
    0.15, 0.20, 0.25, 0.30, 0.40 mm

    Maximum short grain width
    Maximum width 1,350 mm


    Developer
    Any positive plate developer or our own developer

    Length of Run
    200,000 impressions unbaked;
    70,000 impressions with UV ink unbaked;
    1,000,000 impression baked.

    Plate setters Capability
    All the main brands violet CTP in market, laser power no less than 30 mw

    Aluminum
    Standard 1,050 Alloy


    Exposure energy
    50-65uj/cm²(based on plate setter and developing condition)

    Developing time
    20 ± 3 sec


    Developing Temperature
    28 ± 2ºC

    Spectral Sensitivity
    405 nm


    Resolution
    1-99% @200 LPI & 20 uFM

    Shelf life
    12 months under recommended storage conditions


    Storage and handing
    Stored in a cool and dry environment, away from excessive cold, heat.

    Product highlight
    High sensitivity; Extend laser life for image setter; Grain efficiency; Positive CTCP plate
    ModelECOO-CTCP-D
    Plate TypeNo preheat, positive working, UV sensitive plate, double coated, no need baking for UV ink printing
    ApplicationNewspaper printing, commercial printing and package printing
    SubstrateElectrochemically Grained and Anodized Aluminum
    Gauge0.15, 0.20, 0.25, 0.30, 0.40 mm
    Maximum short grain widthMaximum width 1,350 mm
    DeveloperAny positive plate developer or our own developer
    Length of Run200,000 impressions unbaked;
    70,000 impressions with UV ink unbaked;
    1,000,000 impression baked.
    Plate setters CapabilityAll the main brands violet CTP in market, laser power no less than 30 mw
    AluminumStandard 1,050 Alloy
    Exposure energy50-65uj/cm²(based on plate setter and developing condition)
    Developing time20 ± 3 sec
    Developing Temperature28 ± 2ºC
    Spectral Sensitivity405 nm
    Resolution1-99% @200 LPI & 20 uFM
    Shelf life12 months under recommended storage conditions
    Storage and handingStored in a cool and dry environment, away from excessive cold, heat.
    Product highlightHigh sensitivity; Extend laser life for image setter; Grain efficiency; Positive CTCP plate

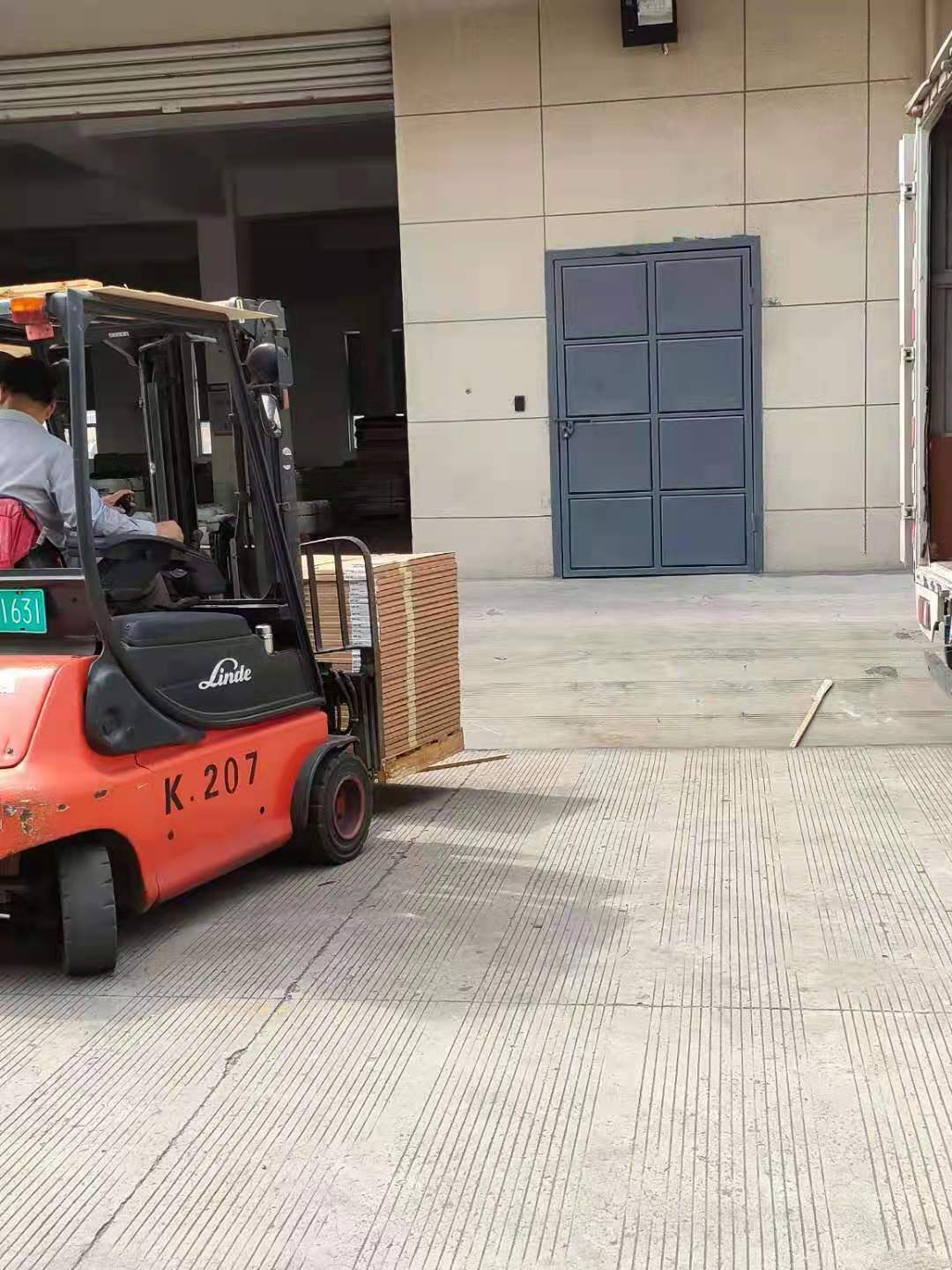

    (¦3[▓▓] Producing And Packaging



    From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.












    (¦3[▓▓] Certifications






    (¦3[▓▓] FAQ




    Q1: Can I get the sample ?


    A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.





    Q2: What is the cost for the CTP plate sample freight ?


    A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the pick-up service from your local agent.





    Q3: How long can the sample be ready ?


    A: It usually takes about 3 days to prepare the sample.





    Q4: Can I visit your factory ?


    A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.





    Q5: How many square meters CTP plates can feed one 20' container ?


    A: About 20,000-25,000sqm.





    Q6: Can I take my own brand and label on the packing ?


    A: Yes, we can provide the OEM with the customer's brand and label.
