    Adhesive Label Cold Foiling Digital Die Cutting Machine 60m/Min

    Ask Lasest Price
    Brand Name : ECOOGRAPHIX
    Model Number : DigiSpark
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 300SET
    Delivery Time : about 20days
    Price : Negotiable
    • Product Details
    • Company Profile

    Adhesive Label Cold Foiling Digital Die Cutting Machine 60m/Min

    Adhesive Label Cold Foiling Digital Die Cutting Machine 60m/Min

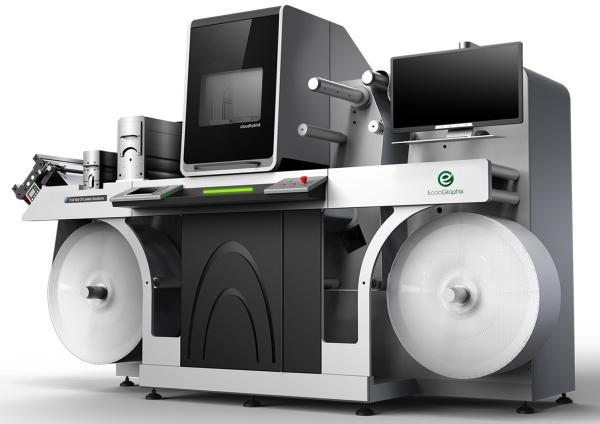

    DigiSpark is the Digital Roll Label enhancement machine,can do digital varnishing, 3D crystal bright, partial glazing, cold foil stamping, embossing, etc., without the need for plate making. It can reduce costs and instantly realize unique visual effects of printing. This is a digital post-press equipment that creates new profit points for users, and is a digital efficiency-enhancing printing machine.

    Applications: Wine Labels, Cosmetic Labels, Luxury labels ,Medical Label,Washi Tape and so on.


    EcooGraphix DigiSpark unique strengths:


    * Unlimited image variety, high resolution up to 1440X360 dpi;

    *lTop UV inkjet drop on head with printing width 288mm and extendable to 330mm;

    *lSpeed up to 50m/min; varnish printing thickness up to 180um~250um;

    *lReliable and cost effective parts and UV varnish supply ;

    *lProven market success with over 50 installations in Europe, China and other countries,satisfaction guaranteed with professional service;

    * CE certificate.


    Model DigiSpark
    Printing TechnologyUV Piezo DoD-inkjet
    Resolutionup to 1440*360 dpi
    Printing speed10m/min - 60m/min(depend on polymer layer thickness)
    Variable Image systemPDF, optimized PDF, Optional barcode system
    Supported image standardsPDF,PDF/VT,TIFF, JPEG, BMP & other data base files
    SubstratesOffset, Digital, Plastics, Laminated and coated substrates
    Printing image width288mm (extendable to 330 mm)
    PolymerWB-DS-Clear Polymer
    Polymer layer thicknessFrom 10 up to 180 microns
    Ink curingInter UV-LED Pre-curing/Full curing by UV-LED
    Unwinder diameterMax. 700mm, Core 76mm
    Rewinder diameterMax. 700mm, Core 76mm
    Substrates thickness30-400 micro
    Substrates width330mm

    Press with Foil station

    dimensions (LxHxW)

    3500mmx1900mmx1800mm
    Operating environmentTemperature: 15℃-30℃, Humidity: 40%-80% relative humidity

    Electrical requirements

    Voltage: 3x380, ±5% 3 phases +G+N Frequency: 50/60 Hz

    Current: Avg. 25 Amps in Production

    Weight2800kg
