Photopolymer Digital Offset CTP Printing Plates Negative

    Buy cheap Photopolymer Digital Offset CTP Printing Plates Negative from wholesalers

    Buy cheap Photopolymer Digital Offset CTP Printing Plates Negative from wholesalers
    • Buy cheap Photopolymer Digital Offset CTP Printing Plates Negative from wholesalers

    Photopolymer Digital Offset CTP Printing Plates Negative

    Ask Lasest Price
    Brand Name : EcooGraphix
    Model Number : ECOO-V
    Certification : ISO9000, CE
    Payment Terms : L/C, T/T
    Supply Ability : 300,000 Sqm/Year
    Delivery Time : 45 Days
    Price : Negotiable
    • Product Details
    • Company Profile

    Photopolymer Digital Offset CTP Printing Plates Negative


    Negative Working Violet Photopolymer Digital Offset Printing Plate


    Brief Introduction




    This violet CTP plate is a kind of plate specialized for violet CTP platesetters for high-level printing, which can be scanned by 410nm laser controlled by computer, and mounted on the press for printing after preheating, rinsing, developing, etc.

    The plate has applied many latest technologies like excellent roughed aluminum substrate, high-resolution formulation design and advanced Multi-layer Coating Technology. These advanced technologies ensure the high quality and stable property.



    Product Specification



    Model

    ECOO-V


    Plate Type

    Low chemistry violet plate, negative printing


    Application

    Newspaper Printing


    Substrate

    Electro Chemically Grained and Anodized Aluminum


    Gauge

    0.20, 0.25, 0.30, 0.40 mm


    Maximum short grain width

    Maximum width 1,320 mm


    Developer

    Developing gum


    Length of Run

    Unbaked: 200,000 impressions;
    Baked: 500,000 impressions(dependent upon image resolution, press,
    press chemical, ink and paper conditions)


    Plate setters Capability

    All the main brands violet CTP in market, laser power no less than 30 mw


    Aluminum

    Standard 1,050 Alloy


    Exposure energy

    50-60 μj/cm²(based on plate setter and developing condition)


    Developing time

    20 ±3 sec


    Developing Temperature

    28 ±2ºC


    Spectral Sensitivity

    405 nm


    Resolution

    150lpi (2-98%), under1800dpi, 25μm line can be produced.


    Preheat

    95-121ºC


    Brush Speed

    100 rpm


    Shelf life

    12 months under recommended storage conditions


    Storage and handling

    Store plates flat in their packaging, away from excessive cold, heat or high humidity.

    Recommended condition is: temperature 15-28ºC and RH between 30-70%;
    Handle with care, the maximum height is 1.2m'
    Open the box under yellow light. Sealed the box with remained plate to avoid moisture.


    ModelECOO-V
    Plate TypeLow chemistry violet plate, negative printing
    ApplicationNewspaper Printing
    SubstrateElectro Chemically Grained and Anodized Aluminum
    Gauge0.20, 0.25, 0.30, 0.40 mm
    Maximum short grain widthMaximum width 1,320 mm
    DeveloperDeveloping gum
    Length of RunUnbaked: 200,000 impressions;
    Baked: 500,000 impressions(dependent upon image resolution, press,
    press chemical, ink and paper conditions)
    Plate setters CapabilityAll the main brands violet CTP in market, laser power no less than 30 mw
    AluminumStandard 1,050 Alloy
    Exposure energy50-60 μj/cm²(based on plate setter and developing condition)
    Developing time20 ±3 sec
    Developing Temperature28 ±2ºC
    Spectral Sensitivity405 nm
    Resolution150lpi (2-98%), under1800dpi, 25μm line can be produced.
    Preheat95-121ºC
    Brush Speed100 rpm
    Shelf life12 months under recommended storage conditions
    Storage and handlingStore plates flat in their packaging, away from excessive cold, heat or high humidity.
    Recommended condition is: temperature 15-28ºC and RH between 30-70%;
    Handle with care, the maximum height is 1.2m'
    Open the box under yellow light. Sealed the box with remained plate to avoid moisture.

    ​​​​​​​Features:


    1. Simplifying the processing, only 3 steps including preheating, developing, and drying.
    2. Redusing chemical consuption, saving water.
    3. Weak alkali developer maximumly avoid developing inconsistency due to exhausted developer. It makes print wuality more stable.

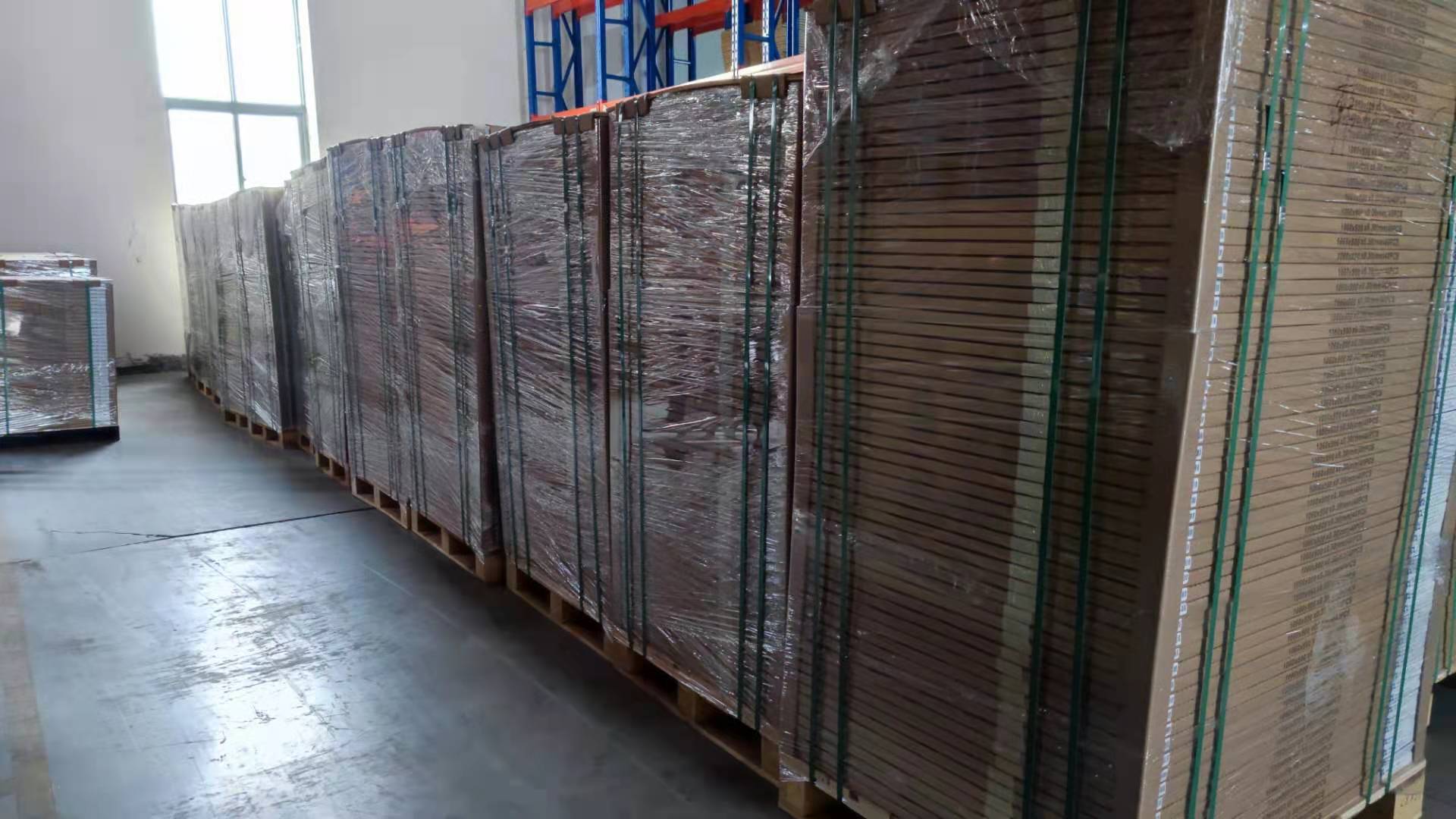

    Our Factory And Producing Line




    Producing ==> Cutting & paper lining ==> Sampling and inspection ==> Package and warehousing









    Plate Structure And Application





    ECOO-V is an environmental friendly product. Compared with normal Violet CTP plate, ECOO-V keeps original photosensitive features and printing compatibility and have following advantages.



    Application: newspaper printing and commercial printing




    Plate Making








    About us




    EcooGraphix is a leading worldwide prepress and graphics arts supply provider. With our main office in China and top quality factories mostly based in China. We provide top quality as well as cost competitive products including CTP/CTCP equipments, CTP/CTCP plates, and some other graphics arts supply. Furthermore, we treat quality service as our top priority to ensure evey single customer operates seamlessly. With hundreds of EcooGraphix CTP installations across USA, Canada, Mexico, South America, UK, Europe, Middle East, Turkey and etcs, we have gained a very fine international reputation in the industry.
    1. Prepress machines and consumables, including CTP machine, flexo CTP machine, ink, developer, processor, CTP/CTCP plate and blanket.
    2. Postpress equipment, including die cutting machine, automatic punching machine, book binding machine, carton erecting machine, paper cone cup machine, automatic folder gluer.





    Our Existing Deistruting Network



    Mature product, mature marketing work and well achieved and maintained network, to make EcooGraphix better and greater.







    Q&A





    1. How long is the lead time ?


    A: The lead time is normally 25 days.



    2. Do you offer free plate samples ?


    A: Yes, we offer free testing samples maximum 12 pcs for each size but with delivery fee collect.



    3. How do you guarantee stable quality ?


    A: There are 3 inpecting procedures: 1) automatic on-line 24h scanning detector; 2) random sampling per 15 mins at the producing line; 3) manually full inspection before packing.



    4. Do you have accompanying plate making products to enable one-stand easy purchase for some end users ?


    A: Yes. CTP machine, processors, developers, ink, blanket and some common finishing machines are also within our category.



    5. Payment term.


    A: Normally, 30% TT deposit, 70% before shipping.
