1. Application
EcooGraphix Positive CTCP Plate(Double Layer) are made for UV based
ink. It is also compatible with an ordinary ink. It is use for long
run length high grade offset commercial and newspaper printing.
2. Characteristic
Features
- Positive writing CTCP (conventional) plate
- Double layers system
- Made with high grade aluminum from Europe
- Wide adaptability for different plate setter brands
- Non-ablative coating
- Run lengths up to 80,000 impressions
- UV Ink up to 50,000 impressions
- Ability to print both AM and FM screening
Benefits
- Very Quick turn around time on press
- Robust coating and consistent reliablity
- compatible with most developers
- premium quality of dot reproduction and long run length
| Exposing |
| Plate setters | Luscher , Basysprint, Cron or EcooGraphix UV series CTCP machine |
| Exposure energy | 50 - 70 mJ/m² |
| Spectral Sensitivity | 400 - 410 nm – UV Laser |
| Resolution | 2 - 99% LPI 200 |
| Photosensitive Wave Length | 405nm |
| Coating | Magenta |
| Developing |
| Processor | All the kind Brands. |
| Developer | Any Positive plate developer or our own developer |
| Processing temperature | 23°C +/- 2°C |
| Developing time | 25 - 30 sec |
| Processing Speed | 0.80 – 1.20 m/min |
| Storage and handling |
| Safelight | Handle under yellow safelight (UV free) |
| Shelf Life | 12 months under recommended storage conditions |

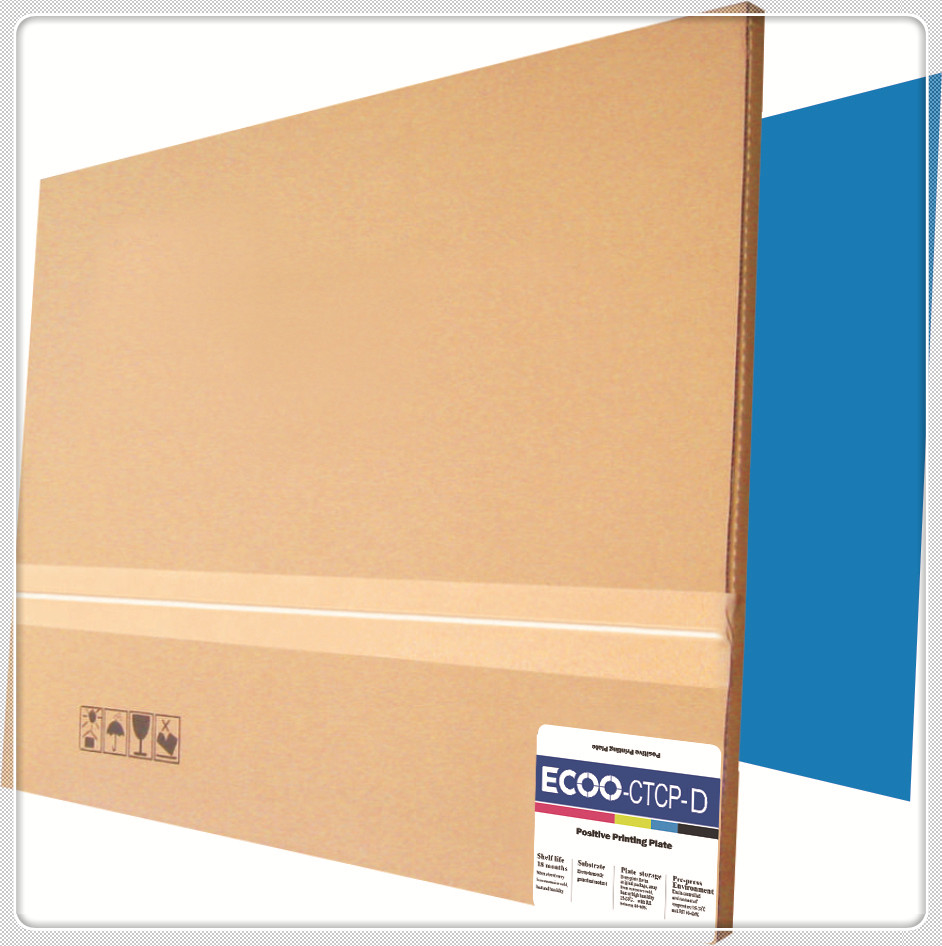

| Packaging | Available in all standard formats, including bulk packaging options
such as
APL packaging |
| Storage and handling | Stored in a cool and dry environment, away from excessive cold,
heat
and humidity. |

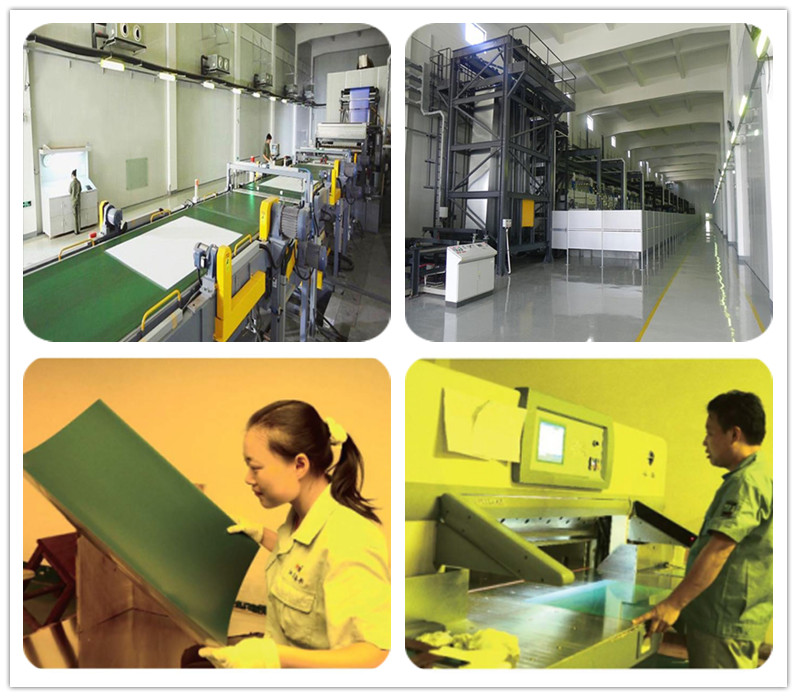

Our Production Lines
Our Partner and Customers
About our company:
EcooGraphix is a leading and professional Supplier for Prepress
Solution , Printing Materials and Post Packing Equipment.
Our main products are the Prepress 4up and 8up Online/Offline
Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor ,
Offset Plates ,inks , blankets , postpress Packing equipments and
so on.
Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South
Africa and so on are very pleased with our Technician Support
service and product performance.
We can also supply the thermal CTP plate(single and double
layers),positive CTCP plates(single and double layers) and
Processless Chemistry free CTP plate.
You can get the prepress equipment and consumables all in one and
no worry about the after-sales service from our company.
Q1: Can I get the sample?
A: We are very glad to provide some sample for you to test. We
usually provide 5-15pieces plates for free,but sincerely hope to
get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the
delivery destination. Or you can arrange the Pick-up service from
your local agent.
Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.
Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in
Hangzhou city,which is about 1.5 hour by train from Shanghai.
Q5: How many Square Meters CTP plates can feed one 20’ container?
A: About 20000-25000SQM
Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer’s brand and label.
