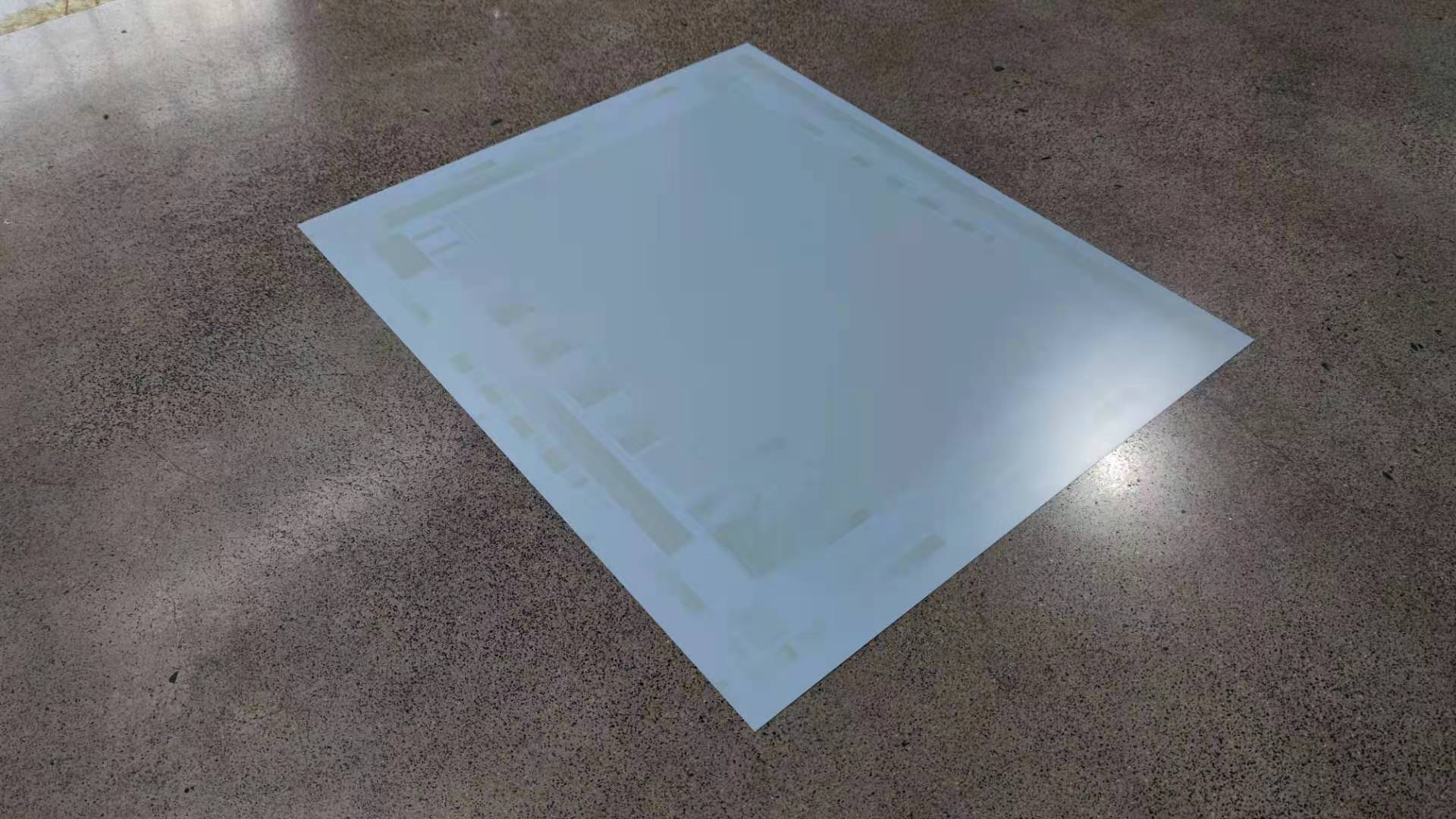

ECOO-H Processless negative CTCP Plate is the latest product. The plate can be exposed on UV image-setter
and applied on printing machine directly without processing or
developing. With ECOO-H, you can be more competitive in reducing
cost, and achieve higher gain efficiency and green printing. It is
very unique.
So far most orders comes from USA and Canada. Wish more printing
houses like this plate and try our free sample.
-------------------------------------------------------------------------------------------------------------------------------------------------------------
★ < Technical Data > ★
Model
ECOO-H
Plate Type
Non-ablation UV-negative type
Application
High grade commercial and newspaper printing
Substrate
Electrolyte graining and Anodized AL substrate
Thickness
0.15mm/ 0.30mm
Maximum short grain width
Maximum width 1280 mm
Photosensitive wave length
405 nm
Platesetter
Various dominant UV platesetters in the market
Image color
Gray
Low-energy imaging
20 mj/cm²
The period of latent image stabilization
≤ 7 days
Recommended screen method
1-99 @200 Lpi AM/ 20u FM and mixture
The paper number of start-up
< 50 sheets
Safety light
1 hour under fluorescent lamp, no direct irradiation with natural
light, 4 hours under yellow light
Processing
Without processing, directly on press
Run Length
100,000 impressions; Actual run length depends on printing
conditions
Shelf life
12 months under recommended
Transportation
Packed in seal and stored by means of preventing from
light/moisture, over heat and high humidity
Storage
Recommended condition: 18ºC-24ºC, 40%-50% RH
| Model | ECOO-H |
| Plate Type | Non-ablation UV-negative type |
| Application | High grade commercial and newspaper printing |
| Substrate | Electrolyte graining and Anodized AL substrate |
| Thickness | 0.15mm/ 0.30mm |
| Maximum short grain width | Maximum width 1280 mm |
| Photosensitive wave length | 405 nm |
| Platesetter | Various dominant UV platesetters in the market |
| Image color | Gray |
| Low-energy imaging | 20 mj/cm² |
| The period of latent image stabilization | ≤ 7 days |
| Recommended screen method | 1-99 @200 Lpi AM/ 20u FM and mixture |
| The paper number of start-up | < 50 sheets |
| Safety light | 1 hour under fluorescent lamp, no direct irradiation with natural
light, 4 hours under yellow light |
| Processing | Without processing, directly on press |
| Run Length | 100,000 impressions;
Actual run length depends on printing conditions |
| Shelf life | 12 months under recommended |
| Transportation | Packed in seal and stored by means of preventing from light/
moisture, over heat and high humidity |
| Storage | Recommended condition: 18ºC-24ºC, 40%-50% RH |
-------------------------------------------------------------------------------------------------------------------------------------------------------------
☆ < Advantages > ☆
♥ Negative non-ablation photosensitive system
♣ Compatible with the dominant devices in the market
♦ Can be printed directly on the machine without any processing
steps after scanning by thermal CTP platesetter
♠ Good dot reproduction, stable performance, wide processing latitude
♥ Long stability of latent image, can be stored at least a week
after plate-making
♣ High quality aluminum substrate, professional coating formulation
-------------------------------------------------------------------------------------------------------------------------------------------------------------

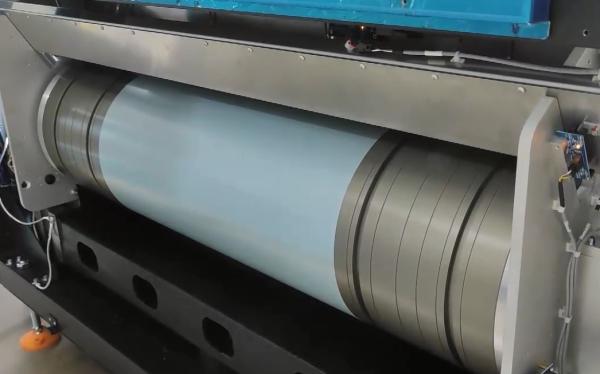

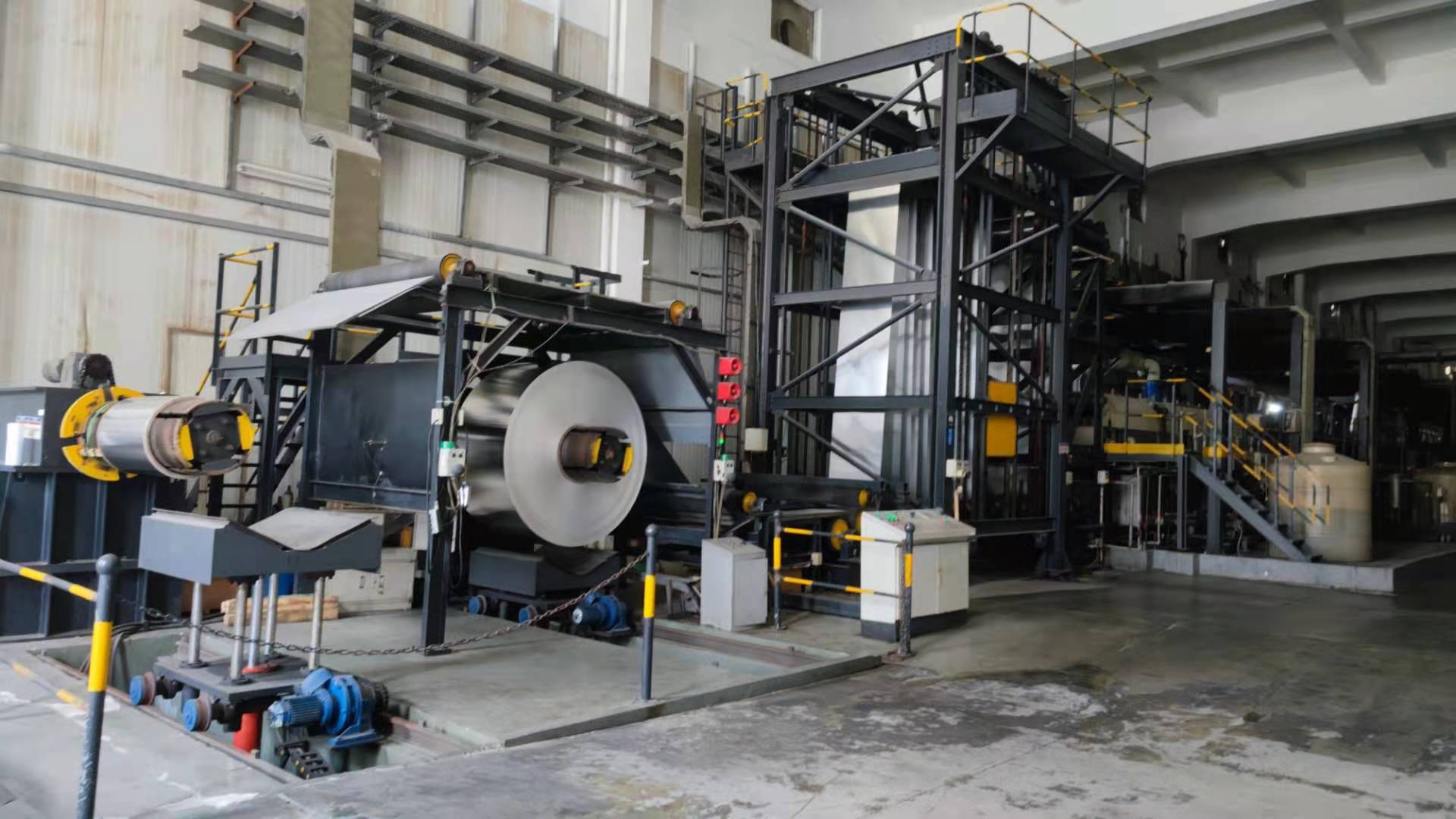

★ < Producing And Packaging > ★
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
-------------------------------------------------------------------------------------------------------------------------------------------------------------
☆ < Certificates > ☆
-------------------------------------------------------------------------------------------------------------------------------------------------------------
★ < FAQ > ★
Q1: Can I get the sample ? A: We are very glad to provide some sample for you to test. We
usually provide 5-15 pieces plates for free, but sincerely hope to
get your kind support for the air courier freight. This cost can be returned to you in your first order. |
| |
| |
Q2: What is the cost for the CTP plate sample freight ? A: The air freight depends on the packing size, weight and the
delivery destination. Or you can arrange the pick-up service from
your local agent. |
| |
| |
Q3: How long can the sample be ready ? A: It usually takes about 3 days to prepare the sample. |
| |
| |
Q4: Can I visit your factory ? A: You are warmly welcome to visit our factory! Our company is in
Hangzhou city, which is about 1.5 hours by train from Shanghai. |
| |
| |
Q5: How many square meters CTP plates can feed one 20' container ? A: About 20000-25000sqm. |
