Online ATM POS Thermal Paper Slitting and Rewinding Line Machine
ECOO-T1400FA
EcooGraphix T-1400FA suits to the slitting of various ultra-large
type coiled material, such as plastic film (PVC,OPP,PET, CPP),
paper, glass paper, aluminum-foil paper, aluminum foil, adhesive
sticker, non-woven fabrics, and other coiled materials slitting and
rewinding.
1. Features
1) SIEMENS PLC control system and touch screen, all the parameters
are displayed on the monitor. Just setup the roll diameter,
material thickness, initial tension, the machine runs
automatically.
2) Shaftless hydraulic loading system, Max. load capacity is 3
tons.
3) 20Kg/m2 electromagnetic brake for unwinding tension control.
4) CNC processed & heat-treatment foothold wall panel, no
deformation.
5) Unwinding section equips with direction adjustable balancing
roller, ensures roller itself keeping tight touch with whole web.
6) Dynamic / static balancing transmission rollers.
7) The upper circular knives are fixed by screws, and the lower
circular knives are fixed by aluminum spacer, cutting precision
could be guaranteed.
8) Automatic tucker tucks the tail, convenient for quickly trigger
rewinding.
9) Load cell sensor & automatic tension controller ensures constant
tension.
10) Automatic meter counter, when reaches preset length, machine
stops automatically.
11) Overlapping problem could be avoided with banana roller.
12) Equipped with emergency switch.
13) CCD digital camera sensor or photocell for web guiding.
2. Main Parameters:
| Model | Ecoo-1400FA |
| Max. Parent Web Width | 1400mm |
| Max. Parent Web Diameter | 1200mm |
| Max. Rewinding Diameter | 300mm |
| Min. Slit Width | 15mm |
| Max. Machine Speed | 300m/min |
| Torque | 100Nm |
| Unwinding Type | 3” air expanding shaft |
| Rewinding Shaft | 0.5”, 1” are available (or as your request) |
| Power | 20KW |
| Voltage | 3 phase, 380V, 50Hz |
| Weight | 4000kg |
| Dimension | 5500*2200*1880mm |

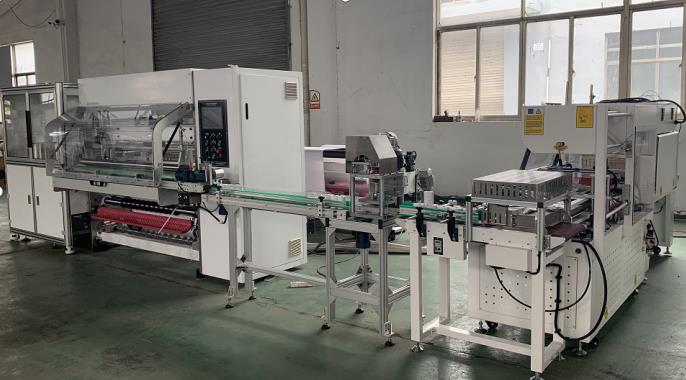

With Ecoo-1400FA, from core feeding to till roll packing, one-stop
thermal paper production can be realized.
Ecoo-1400FA can produce 23,0000-35,000 pcs 57mm x 50mm till roll in
8h, no need dedicated operator.
In order to assist you better understand this newly released
Ecoo-1400FA automatic thermal paper production line, let us
introduce it part by part according to its running process, please
click the youtube link to watch the demo video for reference.
Core feeding is completed by an automatic core feeder. As long as
the plastic core is placed in the bowl in advance, the core feeder
will automatically push the plastic core to the core staging
conveyor.
| Unwinding section | - 3”(76mm)air expanding rewinding shaft
- Hydraulic automatic lift-up loading system
- Ultrasonic correction to get the very high precision
- Electromagnetic Brake from Taiwan
- Fully automatic tension controller
- Balance Roller which used to adjust the Material Tightness |
| Slitting Section | - Choices of Razor cutter or Disc cutter
- Disc Cutter Assembly adopt the cam self-locking
- Cutter with adjustable and moveable blade base.
- Meter counter
- NIP Roller which controller by main motor. |

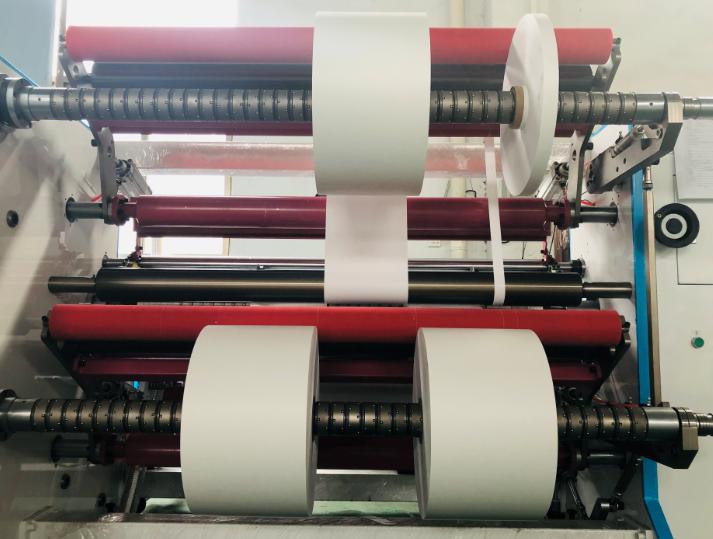

| Rewinding Section | - 3”air expanding rewinding shafts
- Center Rewinding technology
- Pressure Arm
- Electromagnetic Clutch from Taiwan |
| Controlling Section | - Inovance PLC & HMI
- All the parameters are displayed on the monitor
- Low voltage electrical appliances all from Schneider |
| Trimmed Waste Edge | -Edge Waste Blower with Expulsion Tube |
| Optional | - 6'' and 12” Unwinding shafts
- Shaftless type Unwinding Stand.
- Friction Differential Shaft for rewinding.
- Ultrasonic type Edge Position Control (EPC)
- Safety guard for the slitting device.
- Emergency Switches on the 4 corner of machine. |
