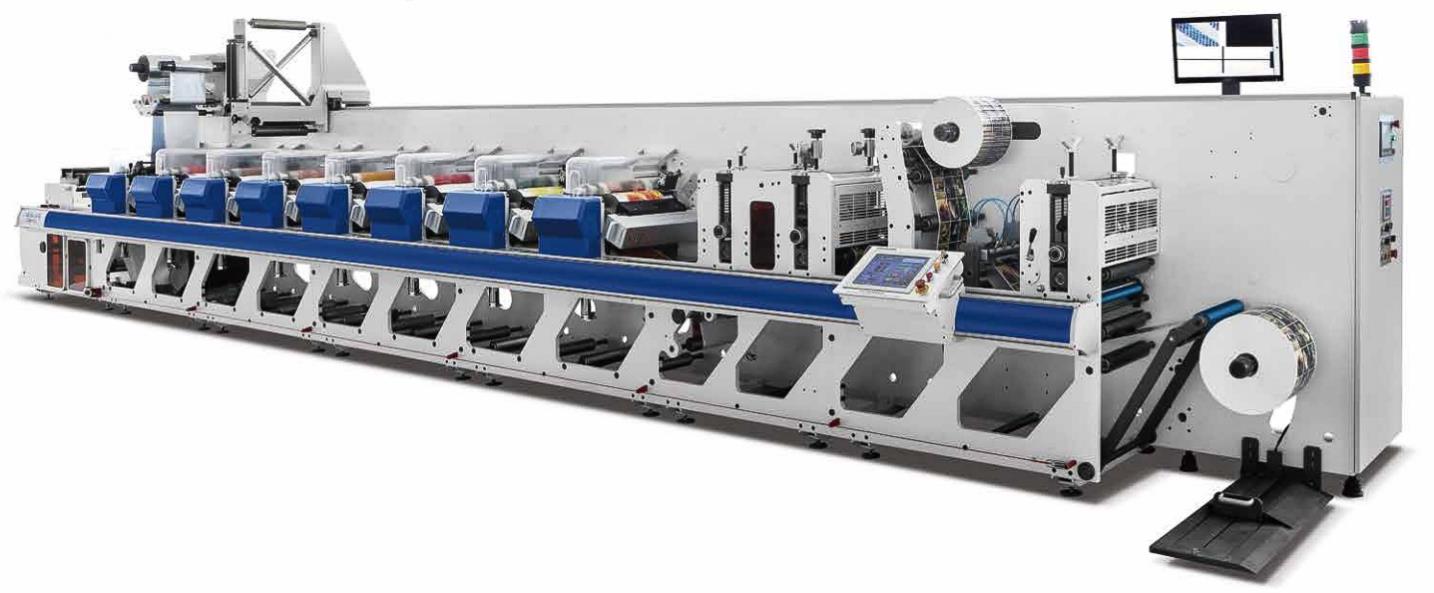

    80m/Min Adhesive Flexographic Printing Machine With Varnishing

    PP Transparent Film Adhesive Label Flexo Printer with Die Cutting and Varnishing

    Main Features

    1. The whole machine adopts the latest servo control system from Germany and each printing unit is driven by independent servo motor. There are 23 servo motors in total for 8color machine which
    ensure the accurate registration during high speed running.
    2. The printing roller adopts sleeve system which is light, easy, convenient and fast to change. This type of design is largely improve the printing quality and reduce the maintenance
    3. Fast and easy Pressure adjustment of printing or ink transferring: Printing roller run by bearer, it’s not necessary to adjust the pressure when change the roller, or at most ­ne adjust for special job.
    4. Anvil roller equips with water chiller, it’s good for ­lm material as well.
    5.Suitable for printing variety ­lm material, such as PET, OPP, CPP, PP and so on.


    ModelEcoo-ZJR350Ecoo-ZJR450Ecoo-ZJR650
    Max. Printing speed180m/min180m/min180m/min
    Printing color4-12 colors4-12 colors4-12 colors
    Max. web width360mm470mm670mm
    Max. printing width350mm450mm650mm
    Max. unwinding diameter900mm900mm1000mm
    Max. rewinding diameter900mm900mm1000mm
    Printing length241.3-603.25mm241.3-603.25mm304-730.25mm
    Dimensions (L×W×H)10.83m x 1.56m x 1.52m10.83m x 1.68m x 1.52m10.0m×1.88m×1.56m
    for 8colors, 3 die cutting stationsfor 8colors, 3 die cutting stationsNo die cutting stations


    MAIN CONFIGURATION:

    DescriptionBrandQuantityOrigin
    Printing roller3setsChina
    Anilox rollerAuclean/Laser1setChina
    Unwind tension controllerMitsubishi1setJapan
    Rewind tension controllerZXTEC1setChina
    Main motorWannan1setchina
    TransducerMitsubishi2setsJapan
    Magnetic power brake/cluthNingxia3setsChina
    Electromagnetic valveAirtac2 setTaiwan
    InverterSchneider1setFrence
    AC ContactorSchneider2pcsFrance
    Time relayC-LIN1pcChina
    Solid relayOmron6pcsJapan
    Micro relayWeidmiiller2pcsGermany
    Temperature ControllerYuyao6pcsChina
    Air switchesSiemens8pcsGermany
    Low pressure wiringSchneiderAllFrance
    All the bearingNSK/CHINAJAPAN/CHINA
