1650x1200mm Automatic Stripping Die Cutter For Corrugated Paper
---------------------------------------------------------------------------------------------------
▽△▽ Brief Introduction ▽△▽

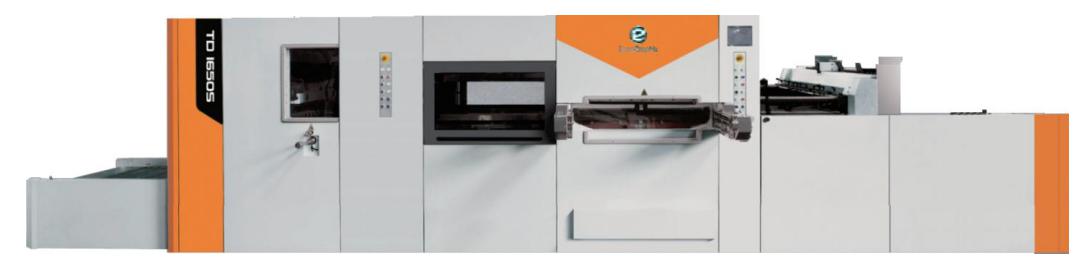

TD1650S automatic corrugated die cutting machine has two kinds of feeder: lead edge fed feeder and bottom suction
feeder. Each feeder meets different paper.
---------------------------------------------------------------------------------------------------
▽△▽ Specification ▽△▽
Model
TD 1650S(Lead edge fed feeder)
Max. Sheet Size (mm)
1650x1200
Min. Sheet Size (mm)
650x520
Max. Die-Cutting Size (mm)
1630x1180
Inside Chase Size (mm)
1660x1215
Min. Gripper Margin (mm)
6
Min. Gripper Waste (mm)
12mm(distance from first knife to paper edge)
Max. Die Cutting Pressure
400Tons
Corrugated Paper (mm)
2-9
Max. Machine Speed (s/h)
5000
Die Cutting Plate Size (mm)
1680x1186
Cutting Knife Height (mm)
23.8
Main Motor Power
22Kw
Total Power
40Kw
Voltage
380/220V, 3PH, 50/60HZ
Dimension (incl. platform)
(L)10255 x (W)5469 x (H)2500mm
Weight
38Tons| Model | TD 1650S (Lead edge fed feeder) | TD1650S (Bottom suction feeder) |
| Max. Sheet Size (mm) | 1650x1200 | 1650x1200 |
| Min. Sheet Size (mm) | 650x520 | 650x520 |
| Max. Die-Cutting Size(mm) | 1630x1180 | 1630x1180 |
| Inside Chase Size (mm) | 1660x1215 | 1660x1215 |
| Min. Gripper Margin (mm) | 6 | 6 |
| Min. Gripper Waste (mm) | 12mm(distance from first knife to paper edge) | 12mm(distance from first knife to paper edge) |
| Max. Die Cutting Pressure | 400tons | 400tons |
| Corrugated Paper (mm) | 2-9 | 2-9 |
| Max. Machine Speed (s/h) | 5000 | 5000 |
| Die Cutting Plate Size (mm) | 1680x1186 | 1680x1186 |
| Cutting Knife Height (mm) | 23.8 | 23.8 |
| Main Motor Power | 22Kw | 22Kw |
| Total Power | 40Kw | 45Kw |
| Voltage | 380/220V, 3PH, 50/60HZ | 380/220V, 3PH, 50/60HZ |
| Dimension (incl. platform) | (L)10255x(W)5469x(H)2500mm | (L)11130x(W)6000x(H)2564mm |
| Weight | 38tons | 38tons |
---------------------------------------------------------------------------------------------------
▽△▽ Details ▽△▽
Friction Feeder
Friction feeder brings strength and high accuracy. Equipped with
high-pressure sucking unit.
Feeding belt is controlled by servo or mechanical system depend
on different material, which is more stable.

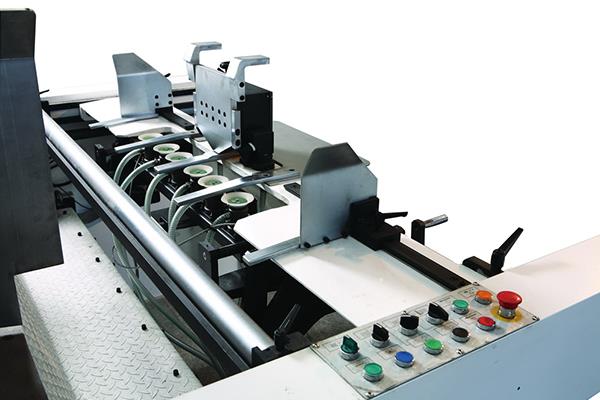

Bottom-fed with Suction Feeder
Equipped with Japanese design bottom-fed non-stop feeder
with 6 suckers. Scratches created on the paper during feeding
can be avoid.
Equipped with reliable paper feeding, front lay and double-sheet
sensor.
Stripping Section
Double-action movement structure with upper and lower stripping
frame facilitates die change,
motorized upper frame suspending hoistsystem for easy installation.
Male/female die are available
for different stripping.
Die Cutting Section
Pressure can be set on the touch screen. The machine
supervision display and 3d touch screen show the working
conditon of the machine for malfunction diagnosis.
Chase is installed with centerline system and pneumatic
lock-up system.
---------------------------------------------------------------------------------------------------
▽△▽ Application ▽△▽
Automatic corrugated die cutting machine also named as corrugated box die
cutting machine,
mostly uses to cut thick corrugated for package of TV, air
conditioner, washing machine and so on.
---------------------------------------------------------------------------------------------------
▽△▽ Producing And Packaging ▽△▽

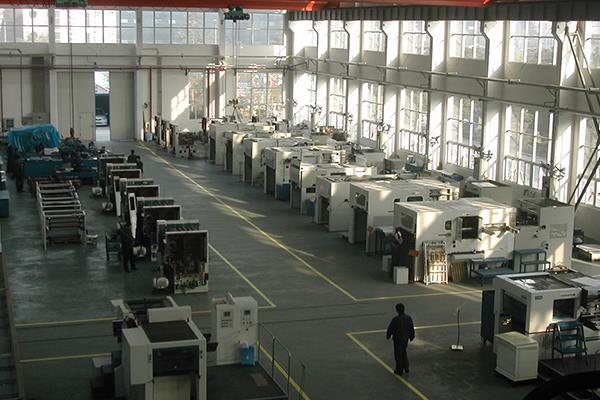

From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
---------------------------------------------------------------------------------------------------
▽△▽ Certificates ▽△▽
---------------------------------------------------------------------------------------------------
