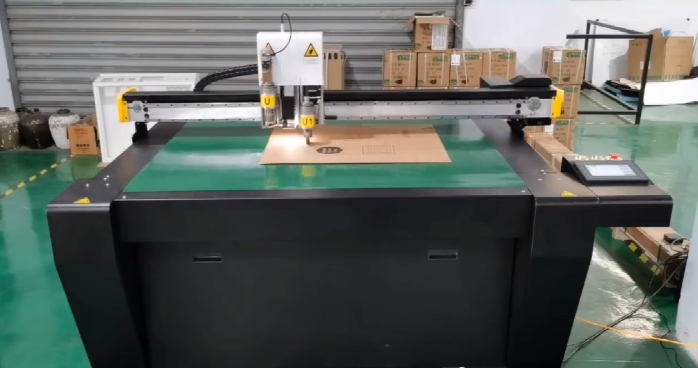

Less Than 50mm Cutting Thickness Digital Cutter For Various Corrugated Board
∷ ∷ ※ ∷ ∷ ∷ ※ ∷ ∷ ∷ ※ ∷ Flatbed Digital Cutter Features ∷ ※ ∷ ∷ ∷ ※ ∷ ∷ ∷ ※ ∷ ∷
Control System
Equipped with the advanced multi-axis high-speed motion control
system with independent intellectual property rights, the system
upgrade and maintenance are not controlled by the third party, the
late maintenance is convenient, high reliability, low cost, because
the right of control is in hand, it can be convenient for users to
customize special procedures for personalized needs and remote
upgrade.
Positioning Function
Equipped with camera and laser. Realize precise positioning of
various materials, with high precision and errors.
Safety Protection
The beam working area is equipped with infrared blocking technology
to ensure the safety of users.
∷ ∷ ※ ∷ ∷ ∷ ※ ∷ ∷ ∷ ※ ∷ Specification ∷ ※ ∷ ∷ ∷ ※ ∷ ∷ ∷ ※ ∷ ∷
Intelligent Cutting Machine
Model
ECOO 1316
Cutting size
1300*1600mm
Cutting materials
Various corrugated board, Plastic corrugated board, Yellow
cardboard, Red cardboard,
White cardboard, Gray cardboard, PVC board, Foam board, EVA, KT
board, Sticker, Gasket, etc
Standard Tool
Oscillating tool, creasing wheel, pen, drag knife, V cut knife,
cursor, milling cut knife
Cutting thickness
≤ 50mm (Customize according to different materials)
Speed
0-1200 mm/s
Fixing Method
Vacuum suction
Repeat precision
≤ 0.01mm
Software
Independent software
Interface
Ethernet port
Control panel
Touch screen
Driving system
Intelligent digital control servo system
Rated Voltage
220V ± 10%, 50HZ/60HZ
Command mode
HP-GL/ GP-GL
| Intelligent Cutting Machine |
| Model | ECOO 1316 |
| Cutting size | 1300*1600mm |
| Cutting materials | Various corrugated board, plastic corrugated board, yellow
cardboard, red cardboard, white cardboard, gray cardboard, PVC
board, Foam board, EVA, KT board, sticker, gasket, etc |
| Standard Tool | Oscillating tool, creasing wheel, pen, drag knife, V cut knife,
cursor, milling cut knife |
| Cutting thickness | ≤ 50mm (Customize according to different materials) |
| Speed | 0-1200 mm/s |
| Fixing Method | Vacuum suction |
| Repeat precision | ≤ 0.01mm |
| Software | Independent software |
| Interface | Ethernet port |
| Control panel | Touch screen |
| Driving system | Intelligent digital control servo system |
| Rated Voltage | 220V ± 10%, 50HZ/60HZ |
| Command mode | HP-GL/ GP-GL |
∷ ∷ ※ ∷ ∷ ∷ ※ ∷ ∷ ∷ ※ ∷ Application ∷ ※ ∷ ∷ ∷ ※ ∷ ∷ ∷ ※ ∷ ∷
Paper Packaging Materials, Stickers Products, Heat Insulation
Material, Insulating Materials, Dust-proof Material, EMI Shielding
Materials.
∷ ∷ ※ ∷ ∷ ∷ ※ ∷ ∷ ∷ ※ ∷ Producing And Packaging ∷ ※ ∷ ∷ ∷ ※ ∷ ∷ ∷ ※ ∷ ∷
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
∷ ∷ ※ ∷ ∷ ∷ ※ ∷ ∷ ∷ ※ ∷ Certificates ∷ ※ ∷ ∷ ∷ ※ ∷ ∷ ∷ ※ ∷ ∷
∷ ∷ ※ ∷ ∷ ∷ ※ ∷ ∷ ∷ ※ ∷ FAQ ∷ ※ ∷ ∷ ∷ ※ ∷ ∷ ∷ ※ ∷ ∷
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline
Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates,
Offset Inks, Offset Printing Blankets, Postpress Packing Equipment
and so on.
You can get the equipment and consumables all in one and no worry
about the after-sales service from our company.
Q2: Where is your factory ?
A: Our CTP Processor machine factory is in Shanghai, you are warmly
welcome to visit our factory!
Q3: What is your warranty for the CTPs ?
A: One year warranty of defects in materials and workmanship(except
the consumables like blades and mat) the full life-time remote
service support for products.
Q4: Can you also supply the Workflow and RIP ?
A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.
Q5: What about the installation and after-sales technician support
?
A: Our engineer can go to help the installation and provide the
necessary training. The buyer should take the round air plane
tickets, service charge and the local accommodation cost. Any
problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are
also many end users(printers) who have purchased the CTP products
from EcooGraphix China directly and EcooGraphix technical service
team support these installations remotely with regular onsite
visits.
These end users printers all run the CTP systems with full
satisfaction due to our robust quality, seamless remote service,
thorough training and maintanence. If you are a printer who is
considering purchasing directly from EcooGraphix China, there is no
hassle on installations, training and after sales service. We
guarantee your satisfaction.
