A2 Offset Printing Machine
Model	ECOO JY 644	ECOO JY 744
Max. Sheet size(mm)	660 x 480	740 x 540
Min. Sheet size(mm)	273 x 393	273 x 393
Paper thickness(mm)	0.06 - 0.6	0.06 - 0.6
Max. Image area(mm)	650 x 468	730 x 528
Plate size(mm)	675 x 560	755 x 677
Blanket size(mm)	740 x 680 x 1.9	740 x 760 x 1.9
Max. Feeder pile height(mm)	940	940
Max. Delivery pile height(mm)	780	780
Motor power(kw)	23	23
Machine size(mm)	7380 x 2470 x 1950	7380 x 2550 x 1950
Weight(kg)	18700	19700

​

=====================================================================================================

▄█ ▄█ ▄█ ▄█ ▄█ Configurations █▄ █▄ █▄ █▄ █▄​

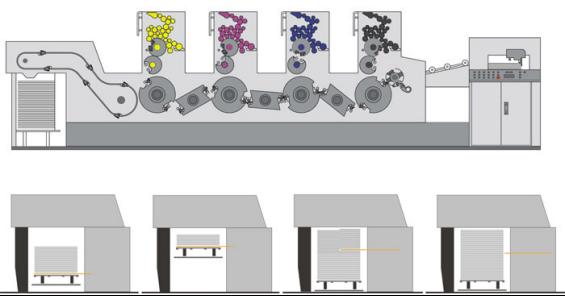

Double diameter impression and paper transfer cylinder

Semi-automatic plate loading(unloading and loading of four plates for 2 minutes and 40 seconds)

Computer automatic pressure regulation(paper pressure preset)

Computer ink control

CIP3 interface

Radial axial oblique electric plate drawing

Parallel double cylinder pneumatic clutch pressure

Vacuum suction paper conveyor ultrasonic double sheet detection

Ink outlet roller motor direct drive

Electronic powder spraying

Industrial bus(CC-Link) electrical system

High-precision photoelectric punching machine

Stainless steel thermal spraying treatment on the surface of impression and plate cylinder

English version of operation procedure and interface

Export-oriented packaging

=====================================================================================================

▄█ ▄█ ▄█ ▄█ ▄█ Details █▄ █▄ █▄ █▄ █▄

Feeder: - Conjugated cam. Forwarding mechanism controlled by linear guide rail makes machine speed faster and more stable. - Rotary valve with patent can clean paper dust automatically and reduce the fault.	Printing Units: - Both of frame and base are integral casting. - High frequency quenching of gears guarantee transmission accuracy. - Helical gears, high overlap coefficient and low noise.
Cylinders: - The surface on the impression cylinders and plate cylinders are sprayed stainless steel so as to prolong press life better. - Dynamic balance design can reduce vibration during printing.	Console: - The press memory or job memory card(disk) can save the current job. Changes and settings made to the current job are transferred to the press. While in printing mode, you can enter the presetting values for next job into the press memory or stored to a disk. - CIP3/CIP4
Pneumatic Clamp Bar, Change Plate Without Tools: - Tension of clamp bar is controlled by imported hoses and disc springs, so that it is more flexible for operation. - Corners of cylinders are controlled by high precision encoder. Plates will be installed and dismounted by program automatically. Thus it can meet the long version and short version edition of the printing business needs. - The tail of clamp bar is separated, so that it can help paper more smooth.	Ink Amount Control Console: - Every ink key in every unit can be set by console. - Ink amount can be displayed in digital and can be saved.

Accurate Grippers: - After checkered high strength steel pads had been quenched, their life will be longer and replacement will be more conveniently. - Wear-resistant soft pads ensure stability of paper handover and precision of paper transmission. - High precision needle roller bearings and opening bearings improve stability of gripper system.	Automatic Device For Adjusting Paper Thickness: - It is equipped with gear driven. Distance between cylinders can e given some feedback to screen by potentiometer automatically. - Permanent magnetic generator driven can ensure stability of printing pressure, because of large torsion and strong self-lock. - It is easier and more convenient to input paper thickness on the screen directly.	Vacuum Suction Feeder Table: - Imported air pump with large volume. - It is suitable for all paper in any types or size automatically, so as to change paper format more quickly and more easily. - Ultrasonic double-sheet detector can protect cylinders better.

=====================================================================================================

▄█ ▄█ ▄█ ▄█ ▄█ Producing And Packaging █▄ █▄ █▄ █▄ █▄

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

=====================================================================================================

▄█ ▄█ ▄█ ▄█ ▄█ Certificates █▄ █▄ █▄ █▄ █▄

=====================================================================================================

▄█ ▄█ ▄█ ▄█ ▄█ FAQ █▄ █▄ █▄ █▄ █▄

Q1: What are your main products ? A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on. You can get the equipment and consumables all in one and no worry about the after-sales service from our company.

Q2: Where is your factory ? A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!

Q3: How long is the lead time ? A: The lead time is normally 30 days. We can accelerate for emergency cases.

Q4: Is there any certification for your machine ? A: Yes, all our machines have been certified by SGS and CE.

Q5: How long is the warranty period ? A: EcooGraphix guarantees 1 year of warranty for laser head and spare parts.

Q6: What is your normal payment term ? A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.

Q7: What about the installation and after-sales technician support ? A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits. These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.

    EcooGraphix is a leading global supplier and service provider for graphics arts equipment and printing supplies. It started in 2010 with developing and manufacturing CTP machines and printing plates. EcooSetter CTP machines and Ecoo plates have now become well-known brand names worldwide. There are over 500 printers worldwide currently running EcooGraphix ctp and plates on daily base. There are around 45 international distributors globally in partnership with EcooGraphix. EcooGraphix teams have over 25 years' experience specialized in prepress, printing, finishing equipment and consumables and digital printing. We guarantee customer satisfaction on every single product we provide.

    With extended product needs among our growing customer base as well as major manufacturers partnership and support, EcooGraphix has expanded its portfolio into additional printing supplies such as offset printing inks, offset printing blankets, printing chemicals, finishing equipment such as die cutting machines, laminating machines, UV coating machine, digital cutter, book binding machines, digital label printers, digital foil stamping machines and 3D printers. Our goal is to provide customers with a one stop shop for graphic arts equipment and supplies.

    Understanding well international market requirements and industry trends, EcooGraphix implements highest standard of Quality control and production standard, allowing every product meets the highest quality standard such as in USA, Canada, UK, and Germany. Service is also at the core of EcooGraphix business. With truly 7X24 hours worldwide service infrastructure and system, EcooGraphix stands firmly behind every piece product and ensure each customer of seamless operations.
