Servo Precision High Speed Sheet Cutter Paper Processing Machine
¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯¯-¯-¯-¯-¯-¯-¯-¯-¯

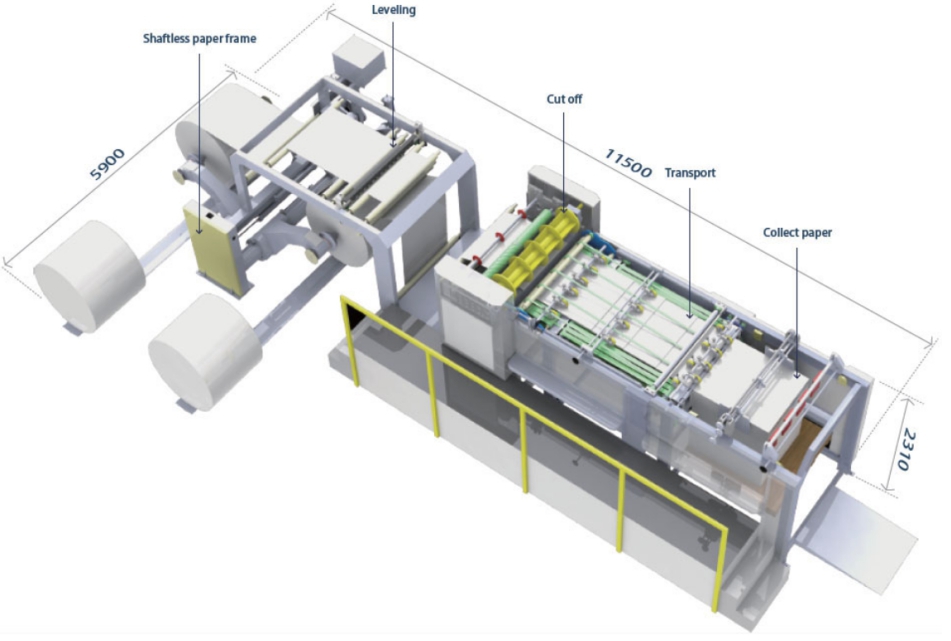

♪ ♭ Sheet Cutter Introduction ♯ ♮ ‖ ¶ §
HSC web cutting machine apply the advanced technique from Britain.
The machine is transmitted by servo motor.
The speed of cutting paper is fast and stable.
Germany precise bear and cutting knife assure the high cutting
precision.
Touch screen computer interface control, simple operation,
reasonable structure, anti-music stands, to ensure smooth paper.
This machine is the paper processing machine which is very popular
in the paper making and printing industry and will improve the
efficiency and benefit for your company to a large extent.
¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯¯-¯-¯¯-¯-¯-¯-¯-¯
♪ ♭ Specification ♯ ♮ ‖ ¶ §
Servo Precision High Speed Sheet Cutter
Model
ECOO HSC-1400
Cutting Type
The up knife cut reciprocally and the down knife is fixed.
Applicable Range Of Paper
50-550g
Max. Paper Roll Diameter
1800mm
Max. Paper-cutting Width
1400mm
Range Of Cutting Length
400-1450mm
Cutting Sheet Number
2 sheet
Cutting Precision
Cutting length < 1000mm: ± 0.3mm ± 0.05% for cutting paper
length > 1000mm
Max. Cutting Speed
400cuts/min
Max. Cutting Meter Speed
300m/min
Max. Paper Stacking Height
1500mm
Air Pressure Source Requirement
0.8Mpa
Design Power
380V, 28kw, 3Phase, 50Hz
Gross Weight
13000kg reference
12000*4300*2400mm
| Servo Precision High Speed Sheet Cutter |
| Model | ECOO HSC-1400 |
| Cutting Type | The up knife cut reciprocally and the down knife is fixed. |
| Applicable Range Of Paper | 50-550g |
| Max. Paper Roll Diameter | 1800mm |
| Max. Paper-cutting Width | 1400mm |
| Range Of Cutting Length | 400-1450mm |
| Cutting Sheet Number | 2 sheet |
| Cutting Precision | Cutting length < 1000mm: ± 0.3mm
± 0.05% for cutting paper length > 1000mm |
| Max. Cutting Speed | 400cuts/min |
| Max. Cutting Meter Speed | 300m/min |
| Max. Paper Stacking Height | 1500mm |
| Air Pressure Source Requirement | 0.8Mpa |
| Design Power | 380V, 28kw, 3Phase, 50Hz |
| Gross Weight | 13000kg reference |
| | 12000*4300*2400mm |
Cutting Precision
Depending on the density, roll number and material of paper roll,
±0.5mm for 1000mm, ±0.1% for over 1000mm, and ±0.1% for
acceleration or deceleration. The above data is based on the stable
cutting operation and correct operation procedure. (When the
cutting paper roll is one, the length of the cutting paper is the
correct length)OutputActual output depends on the paper material, paper weight, cutting
length, number of paper roll,
technology of the operator and operation conditions, etc.
¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯¯-¯-¯-¯-¯-¯-¯-¯-¯-¯
♪ ♭ Standard Configuration ♯ ♮ ‖ ¶ §
1. High-precision single knife cutting machine
2. Auto Prismatic adjustment system for paper
3. Middle slitting and waste collection paper system
4. Automatic counting and label inserting equipment(count marking)
5. Paper transporting equipment
6. Electrical controlling system
7. Driving motor
8. Accessory
9. Double lime pneumatic shaft paper rack(2 roll stand)
10. Auto jogger system, motor controlled rope paper piling stand
¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯¯-¯-¯-¯-¯-¯-¯-¯-¯-¯
♪ ♭ Function ♯ ♮ ‖ ¶ §
Slitting knife
Three sets of slitting knife is used to trim and middle slitting.
|
| |
Cutting unit
On the knife the British cutter method to reduce the load and noise
when the cutter extend cutter life. On knife roller body to steel
welding gave precision machining, and dynamic balance adjustment,
effectively reduce the vibration and noise of the high-speed
operation.
Under the knife: knife block with cast iron integrally molded
casting, precision machining, good stability.
The back cutter: made of special steel precision knife processing,
long life blade easily adjustable.
|
| |
Electronic control(the Yaskawa servo and Siemens PLC)
TPC7062KS and Yaskawa Processor communication, Mainly used in the
production of data input equipment operating status monitoring, and
system failure alarm indication. The rotating series drives Yaskawa
the JAPAN company Yaskawa I quick drive, based on the production of
man-machine interface input parameters from the actual speed
traction roller encoder feedback and accurate positioning.
|
| |
Curly device
Curly device is in the paper roll before slitting device to
eliminate the roll curl or fold device, in order to the stability
of the paper roll tension. The paper roll first passes through(to
the edge of the roll) components into the deconvolution device, the
rollers are guide roll.
|
| |
The new anti curvature device
Effectively remove the curl of the roll to make the paper more
flat, more conducive the paper roll tension stability.
|
| |
Unwinded stand
Type: double arm type for paper core 3"6"12" Roll Rack 2 unwinds pick-up type located at the rear of the machine
structurally sized to be able to hold reel of a weight
approximately 1500kgs. The up and down movements are all hydraulic
and are directly controlled from the console by selectors that
control the solenoid valves. Oil pressure to control the paper arm
before and after closing and moving and lifting. Lifting movement
capable of stable and rapid, more simple and convenient operation. |
| |
The conveyor and paper collection system by jogger
Conveyor system with mult-stage: from high speed to low speed.
First to separate the cut paper quickly, and then overlap the
paper, then collect and pile the paper.
Lift stacked set paper sets, the paper stack to a considerable
height, that is automatically dropped. The stacker table has three
sides shake finishing function, the side of the motor to drive the
paper, the paper, on both sides by high-quality motor jogger to
adjust the amplitude of the paper manually to improve the
simplicity and safety of the operation. |
| |
Squareness adjustment system(auto prismatic adjustment system for
paper)
Adjust squareness of paper, our engineer will fix it by once, and
operator no need to readjust.
|
| |
Adjust the angle automaticlly(paper aligning system)
The precision of the stepper motor is controlled by the length of
the cut precision screw adjustment the inclination of the knife
group, to effectively ensure the straight angle of the edge of the
cut sheer, reducing waste time manually adjust the angle of error
rate and adjustment.
|
| |
Automatic paper jam stop
Have sensor to give signals to the system if there are any paper
jam occur at conveyor, and the machine will stop immediately to
save the papers. |
| |
Automatic marking machine
With precise count after insert marking, operators only need to
input on the man-machine interface to after the number of paper,
can be in accordance with the Settings to marking the quantity of
paper.
|
¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯¯-¯-¯-¯-¯-¯-¯-¯-¯-¯
♪ ♭ Details ♯ ♮ ‖ ¶ §
The main machine structure(Knife holder and holder stand)
The main machine wall through finite element analysis, mechanical
vibration analysis and optimization of the frame, USES the high
quality nodular cast iron for the integration of design, and
through precision machining, perfect the resonance phenomenon
between the transmission components, make the operation more
stable, improve the service life of the bearing parts.

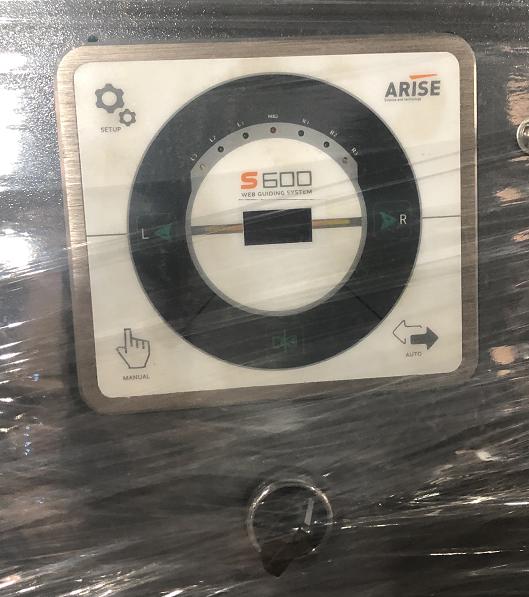

Web-guide system
Strict process quality control, servo control system durable,
maintenance-free, fine processing, high dynamic response, no
buffering, accurate positioning, driver limit digital adjustable.
Display can be automatically set to sleep for automatic operation,
which can save energy. The large screen displays in real time, and
the system running status is clear inside.
Driving motors
1) AC Servo motor & encoder for cross knife
2) AC motor & frequency transformer for high speed conveyer and low
speed conveyor
3) AC motor for up & down paper piling stand
4) AC motor for joggers
5) AC motor for unwind stand
6) AC motor for collecting waste edge
The machine with automatic tension control system, manual slitting
and trimming knives 3 sets(1 for slitting & 2 for trimming), with 1
set counting machine, web guide system, de-curl system, cutting
accuracy is +-0.3mm, automatic paper jam stop system, germany fag
knife bearing, etc. Ductile iron casting knife holder stand. Max.
cutting speed for this machine is 300mpm, 400cpm.
Main Parts List:
| | Configuration | Type | Note |
| 1 | Paper cutting knife | Tungsten steel knife blade | Germany |
| 2 | Bearing | FAG/NSK | Germany/Japan |
| 3 | Vibrator | K20 | China |
| 4 | PLC | Siemens | Germany |
| 5 | Limit switch | Schneider | France |
| 6 | Controller | Kinco | China |
| 7 | Relay | Schneider/RXM4LB2BD | France |
| 8 | Servo drive | Yaskawa | Japan |
| 9 | Frequency transformer | Inovance | China |
| 10 | Servo motor | Yaskawa | Japan |
| 11 | Encoder | NEMICON HES-25-2MD | Japan |
| 12 | Control button | Eaton | USA |
| 13 | Switch power supply | Mingwei NES-50-24 | Taiwan |
| 14 | Web guide | Arise | Taiwan |
| 15 | Screen | Siemens | Germany |
| 16 | Ac contactor | Eaton | USA |
| 17 | Conveyor belt | Rapplon | Sweden |
| 18 | Automatic tension system | Germany Siemens PLC control, Germany COSYS proportional valve,
AW20-02BG air filter control, DBK250.2 Brake | |
Remark list: (spare parts for free)
| Parts name | No. |
| Cut knife | 1 set |
| Belt | 15 pcs |
| Pressure gauge | 1 pc |
| Marking paper | 40 rolls |
| Brake pad | 4 pcs |
| Up slitting knife | 3 pcs |
| Down slitting knife | 1 pc |
| Rubber ring | 16 pcs |
| Regulating Valve | 1 pc |
| Limit switches | 2 pcs |
| Handle M12 | 1 pc |
| O-ring for cylinder | 1 pc |
| Synchronous belt | 1 pc |
| Toolbox | 1 set |
¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯-¯
